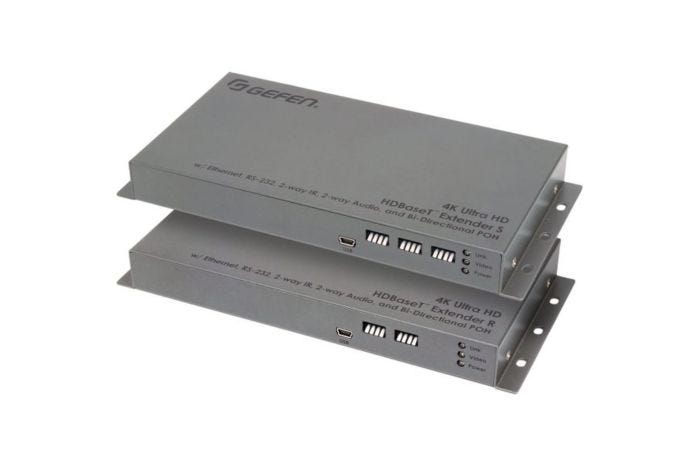

Gefen 4K Ultra HD HDBaseT 2.0 Extender

Gefen Wireless HDMI Extender for Long Range

The Wireless for HDMI 5 GHz LR (Long Range) Extender system sends high definition audio and video to any HDTV display up to 100 feet (30 meters). It extends HDCPcompliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported. This wireless system is comprised of a Sender and a Receiver unit. Both units can be attached to a standard ¼”-20 camera tripod mount, wall mounted, or be placed on a shelf. The small and low-profile Receiver unit includes a wired IR Extender module, and can be hidden away behind the display or inside an equipment cabinet if needed. The Sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the Input button on the Sender or the Receiver unit. The included IR emitter array can be connected to the Sender unit and attached to the IR sensor windows of the two Hi-Def sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the Receiver unit. This wireless extender system is ideal for high-definition AV extension in a conference room, classroom, auditorium, home theater, and multiroom AV installations that feature multiple sources and two displays. Up to eight Sender units can be accessed by a Receiver, one at a time, using its handheld remote control. The Wireless for HDMI 5 GHz LR Extender system can transmit through walls and does not require line-of-sight placement of its transceivers.

Maximum Pixel Clock: 300 MHz

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Link connector (Sender/Receiver): (1) RJ-45, shielded, female

Ethernet port (Sender/Receiver): (1) RJ-45, shielded, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

Optical Digital Audio Input connector (Receiver): (1) TOSLINK®, female

Optical Digital Audio Output connector (Sender): (1) TOSLINK®, female

Analog L/R Stereo Audio Input connector (Sender): (2) RCA, female

Analog L/R Stereo Audio Output connector (Receiver): (2) RCA, female

IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Extender type: EXT-RMT-EXTIRN

IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack

USB port (Sender/Receiver): (1) Mini-B (for Gefen Syner-Gâ„¢ interface)

Power/Video/Link Indicator LEDs (Sender/Receiver): (1) Blue, (1) Amber, (1) Green

Power Supply connector (Sender/Receiver): (1) 48V DC, locking

Power Consumption (Sender and Receiver combined): 14W

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185 °F (-20 to +85 °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D, Sender/Receiver, not including connectors):
8.4” x 1” x 4” (214mm x 25mm x 100mm)

Net Weight (Sender/Receiver): 0.75 lbs (0.35 kg) each
