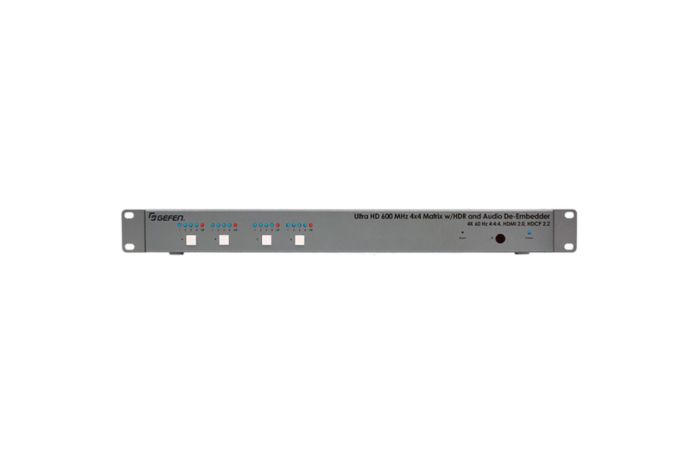

Gefen 4K Ultra HD 600 MHz 4x4 Matrix with Power Cord for EU territories
Availability:In stock
Cat No.
98327
SKU
EXT-UHD600A-44-EU
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen 4K Ultra HD 600 MHz 4x4 Matrix with Power Cord for EU territories
- Multi-format video output for SD and HD video up to 1080p
- PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
- 39 timings, 41 patterns, and 4 data analysis patterns
- Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
- Supports NTSC and PAL frame rates
- 2 CH, 5.1 CH, and 7.1 CH LPCM internal sine wave generator
- RS-232 control via the downloadable software from the Gefen Web site
- Small form factor; easy to transport
- Supports HD timings for VGA output
- HDCP Pattern
- Supports reading and copying EDID functionality
- User Friendly Interface- LCD Display, LED indicators and Software
- Deep Color support up to 12-bit
- HDMI 1.3 and DVI 1.0 Compliant
- HDCP Compliant
Maximum TMDS Clock: 600 MHz
Total Signal Bandwidth/Data Rate: : 18 Gbps
HDMI Input Connectors: : (4) Type A 19-pin female, locking
HDMI Output Connectors: : (4) Type A 19-pin female, locking
HDMI Outputs 1 and 2 pin 18 current capability at 5V: : 500 mA
Digital Audio Output Connectors: : (4) TOSLINK ® Optical
: (4) RCA Coaxial
Analog L/R Audio Output Connectors: : (4) 3.5mm mini-stereo jack
USB power ports: : (2) Type A, female
USB power ports’ current capability: : 2A total at 5V DC (shared)
RS-232 serial port: : (1) DB-9, female
Ethernet (IP Control) Port: : (1) RJ-45
Power Indicator: : (1) LED, Blue
Input Indicators: : (16) LEDs, Blue
: (4) LEDs, Red
Input Selector Buttons: : (4) tact-type
Reset Button: : (1) tact-type, recessed
IR Sensor: : (1), located on front panel
IR In/Ext Port: : (1) 3.5mm mini-stereo jack
IR Extender type: : EXT-RMT-EXTIRN (not included)
DC Power Connector: : (1) 4-pin, locking
Power Supply: : 24V DC
Power Consumption: : 40W (both USB power ports loaded), 30W (USB power ports not in use)
Operating Temperature: : +32 to +122  °F (0(more…)
