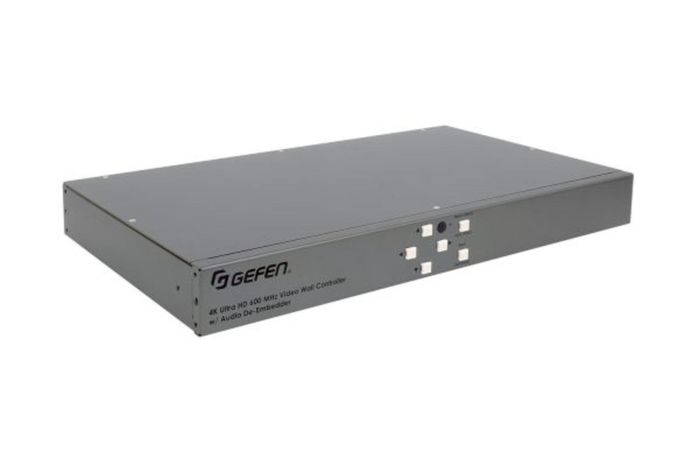

Gefen 4K Ultra HD 600 MHz 1x4 Video Wall Controller w/ Audio De-Embedder
Availability:In stock
Cat No.
98000
SKU
EXT-UHD600A-VWC-14
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£2,175.60
£1,813.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen DVIKVM Extra Long Range Extender – with Power Cords for UK territories
The Gefen DVI KVM Extra Long Range Extender extends DVI and USB up to 330 feet (100 meters) over a single CAT-5 cable. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. HDCP, USB 2.0 (up to 30 Mbps), and USB1.1 are also supported. The Receiver unit accommodates up to three USB devices, providing access to keyboard, mouse, touch-panels, printers, scanners, and external storage media. Typical applications include remote workstations and interactive digital signage with touch-screens. This product uses Gefen’s ELR implementation that integrates the proven HDBaseT™ technology with powerful EDID Management capabilities. DVI and USB are transported over the same CAT-5e cable, reducing cabling costs in addition to providing easier and more reliable installation.
Video Support
Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported as well as the HDCP 1.4 protocol.
USB & Serial Extension
This product provides RS-232 and USB extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display(more…)
Video Input Maximum TMDS Clock: 600 MHz
Video Input Total Signal Bandwidth/Data Rate: 18 Gbps
Input resolution: Up to 4K 60 Hz 4: 4: 4, with HDCP 2.2 and 1.4
Output resolution: Up to 1080p Full HD (60 Hz), with HDCP 1.4
Video Input connector: (1) HDMI Type A, 19-pin, female, locking
Video Output connectors: (4) HDMI Type A, 19-pin, female, locking
Analog Audio Output connectors: (2) RCA jacks
RS-232 connector: (1) DB-9, female
IP Control connector: (1) RJ-45, shielded
USB Connector: (1) Mini-B
IR In/Ext Connector: (1) 3.5mm stereo mini-phone jack
IR Extender type: EXT-RMT-EXTIRN
Menu Navigation buttons: (6) tact-type, blue backlight
Power Supply Connector: 3-pin locking plug
Power Supply: 12V DC
Power Consumption: 12W Maximum
IR Remote Battery: 1x CR2025, Lithium
Operating Temperature: +32 to +122  °F (0 to +50  °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185  °F (-20 to +85  °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D, not including connectors):
Without Rack Ears: 15.3� x 1.7� x 8.9� (389mm x 43mm x 226mm)
: With (more…)
