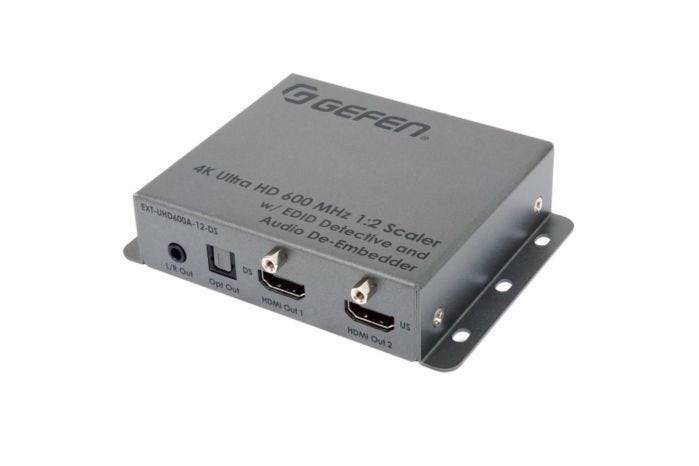

Gefen 4K Ultra HD 600 MHz 1:2 Scaler w/ EDID Detective and Audio De-Embedder
Availability:In stock
Cat No.
98003
SKU
EXT-UHD600A-12-DS
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£493.20
£411.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen 4K Ultra HD 600 MHz 1:8 Splitter w/ HDR – with Power Cord for UK territories
Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-18 splitter distributes signal from one 4K source, and distributes it to up to eight 4K displays or video zones. The splitter features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It also accommodates Gefen locking HDMI cables for secure connections.
Video Support
Gefen’s Ultra HD 600MHz Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefens Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standa(more…)
Maximum TMDS Clock: 600 MHz
Total Signal Bandwidth/Data Rate: 18.2 Gbps
Video Input Connector: (1) HDMI Type A 19-pin, female, locking
Video Output Connectors: (2) HDMI Type A 19-pin, female, locking
Digital Audio Output Connector: (1) TOSLINK ® Optical
Analog L/R Audio Output Connector: (1) 3.5mm mini-stereo jack
Gefen Syner-Gâ„¢ port: (1) USB-Mini-B, female
Power Indicator LED: (1) Blue
Input (HDMI-Active) Indicator LED: (1) Green
EDID Selector Switch: (1) Rotary, 8-position
Power Supply: (1) 5V DC, locking plug, 5.5mm barrel/2.5mm pin
Power Consumption (Sender and Receiver combined): 4W maximum
Operating Temperature: +32 to +122  °F (0 to +50  °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185  °F (-20 to +85  °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D, not including connectors): 3.7� x 1� x 3.2� (94mm x 25mm x 82mm)
Net Weight: 0.3 lbs. (0.14 kg) each
Shipping Weight: 1.4 lbs. (0.63 kg) each
* Features and specifications are subject to change without notice.
