Gefen 1:4 DVI Dual Link Splitter – with Power Cord for EU territories
Availability:In stock
Cat No.
98291
SKU
EXT-DVI-144DL-EU
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

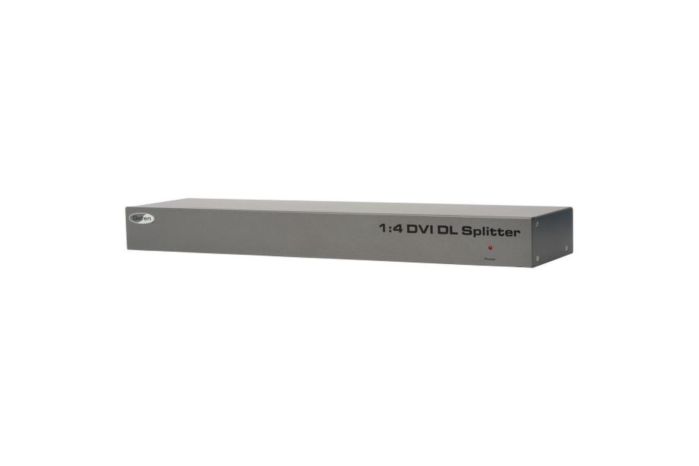

Gefen 1:4 DVI Dual Link Splitter – with Power Cord for EU territories
- Distributes a dual link source to four DVI dual link outputs
- Supports resolutions up to 1080p Full HD (60 Hz), single-link resolutions up to 1920 x 1200 (WUXGA), and dual-link resolutions up to 2560 x 1600 (WQXGA) at 60 Hz and 3840 x 2160 (QFHD) at 30 Hz
- EDID management for rapid integration of source and displays
- Output masking
- Stand-by mode
- Field updatable firmware via RS-232
- Locking power supply
- Rack-mountable with included rack ears
Maximum Pixel Clock: 2 x 165 MHz
Video Input Connector: (1) DVI-D 29-pin, female
Video Output Connectors: (4) DVI-D 29-pin, female
RS-232 Port: (1) DB-9, female
Power Consumption:
On: 20 W maximum
Stand-by: 0.5 W maximum
Power Supply: 5V DC, Locking
Operating Temperature: +32 to +104  °F (0 to 40  °C)
Rack mounting requirements: Standard 19" rack, 1U high
Dimensions (W x H x D): 17.1" x 1.75" x 4.2" (435mm x 45mm x 107mm)
Shipping Weight: 5.2 lbs (2.5 kg)
