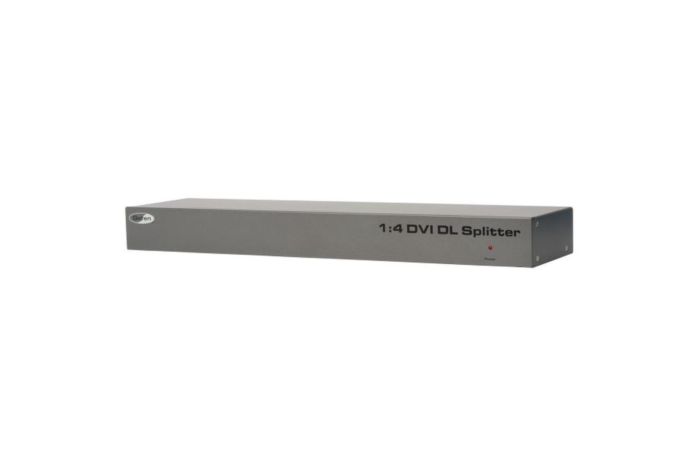

Gefen 1:4 DVI Dual Link Splitter
Availability:In stock
Cat No.
97937
SKU
EXT-DVI-144DL
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,191.60
£993.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen VGA KVM over IP – Receiver Package
The VGA KVM over IP extends VGA, USB, 2-way analog audio, RS-232, and IR, over a Gigabit Local Area Network. Resolutions up to 1920 x 1200 (WUXGA) are supported. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch (see Notes 1 and 2). Any combination of HDMI, DVI, and VGA Senders and Receivers can be used. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector, providing access to keyboard, mouse, and other compatible devices. Bi-directional analog audio capability allows audio to be transported between the Sender and the(more…)
- Distributes a dual link source to four DVI dual link outputs
- Supports resolutions up to 1080p Full HD (60 Hz), single-link resolutions up to 1920 x 1200 (WUXGA), and dual-link resolutions up to 2560 x 1600 (WQXGA) at 60 Hz and 3840 x 2160 (QFHD) at 30 Hz
- EDID management for rapid integration of source and displays
- Output masking
- Stand-by mode
- Field updatable firmware via RS-232
- Locking power supply
- Rack-mountable with included rack ears
Maximum Pixel Clock: 2 x 165 MHz
Video Input Connector: (1) DVI-D 29-pin, female
Video Output Connectors: (4) DVI-D 29-pin, female
RS-232 Port: (1) DB-9, female
Power Consumption:
On: 20 W maximum
Stand-by: 0.5 W maximum
Power Supply: 5V DC, Locking
Operating Temperature: +32 to +104 °F (0 to 40 °C)
Rack mounting requirements: Standard 19" rack, 1U high
Dimensions (W x H x D): 17.1" x 1.75" x 4.2" (435mm x 45mm x 107mm)
Shipping Weight: 5.2 lbs (2.5 kg)
