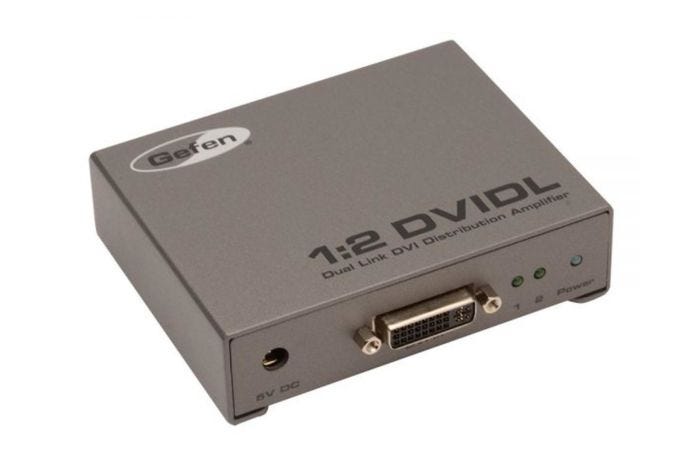

Gefen 1:2 Dual Link DVI Distribution Amplifier
Availability:In stock
Cat No.
98102
SKU
EXT-DVI-142DLN
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£471.60
£393.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Gefen 4x2 HDMI 4K60 Multi-viewer + Live Streaming
GF-HD18G-MVLS424x2 HDMI 4K60 Multi-viewer + Live Streaming Seamless Matrix Switcher scales and sizes pictures from four 4K Ultra Hi-Def sources and outputs them individually or as windows to two 4K 600MHz displays. Gefen’s 4×2 HDMI 4K60 Multi-viewer plus Live Streaming Switcher is the perfect solution for displaying content from four 4K UHD sources to two 4K Ultra HD displays. Each of the windows can be displayed one at a time, or individually scaled and positioned on the screen as desired. Seamless matrix switching ensures no frame loss during window and picture transitions. This product is HDCP compliant. Input resolutions up to 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) and output resolutions up to 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) is supported.
Audio from any of the four HDMI sources or Line Input can be selected via On-screen Display (OSD), RS-232, or IP, for playback through the HDMI output and the L/R analog audio output. The analog audio is de-embedded from the HDMI output and can be routed to an outboard sound-reinforcement system, adding presence and impact to AV presentations.
The 4K60 HDMI 4×2 Multi-viewer + Live Streaming Switcher is controllable via front panel, RS-232, and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration and provides support for Live Preview for monitoring.
Factory presets provide most commonly used arrangements of windows on a display, including single window output. Additional programmable presets allow the user to store and recall custom-configured window arrangements. Presets are accessible via the front panel buttons, on-board recording functionality to USB or IP Storage devices using the following protocols: CIFS, NFS.
Maximum Pixel Clock: 2 x 165 MHz
Video Input Connector: (1) DVI-D, 29-pin, female
Video Output Connectors: (2) DVI-D, 29-pin, female
Power On indicator: (1) LED, blue
Link indicators: (2) LED, green
Power Consumption: 5 W (max.)
Power Supply: 5V DC
Operating Temperature: +32 to +104  °F (0 to +40  °C)
Operating Humidity: 20% to 80% RH, non-condensing
Storage Temperature: -4 to +140  °F (-20 to +60  °C)
Storage Humidity: 20% to 90% RH, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D): 4″ x 1.25″ x 3.25″ (102mm x 32mm x 83mm)
Shipping Weight: 2 lbs (0.9 kg)
