Product Information

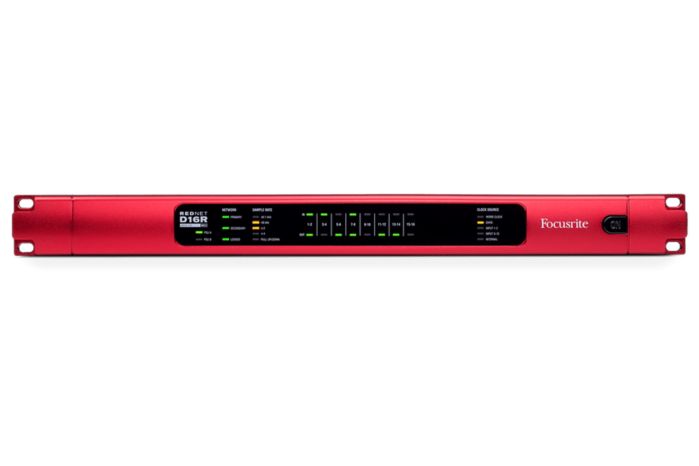

Focusrite RedNet D16R MkII
RedNet D16R MkII is a 16-channel bi-directional digital interface for Dante networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MK2 features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet D16R MK2 a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
16x16 AES3 I/O with independent level control
The RedNet D16R MkII is a 16-channel bi-directional AES3 interface for Dante® networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure.
Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made.
Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network.
The Focusrite Studio Console reborn in your DAW
The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx's bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.
Enjoy 3 years of warranty
All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.
- Individual input and output channel level control using RedNet Control software.
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors for Primary and Secondary network connections.
- Power supply and ethernet redundancy with auto switchover in case of failure.
- Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
- Sample rate conversion on all input channels.
- Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
- RCA connectors for two-channel S/PDIF input and output.
- XLR connections for alternate AES3 I/O and DARS input.
- BNC connectors for Word Clock input and output.
- Compact 1U chassis allows maximum functionality in minimum rack space.
- Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
- Remote routing and control using RedNet Control and Dante Controller.
|
Input / output trim |
Input Trim-78 to 0dB in 1dB steps (per channel) Output Trim-78 to 0dB in 1dB steps (per channel) |
|---|---|
|
Input sample rate converters |
|
|
Sample Rate Range |
32Hz to 214kHz |
|
Gain Error |
-0.3dB |
|
Dynamic Range |
Greater than 138dB (-60 dBFS method) |
|
THD + N |
Less than -130dB (0.00003%); 0 dBFS input |
|
Latency |
11 to 45 samples (network and input sample rate dependent) |
|
Digital performance |
|
|
Supported Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
|
Clock Sources |
Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master |
|
External Word Clock Range |
Nominal sample rate ±7.5% |
|
AES / EBU |
|
|
Channel Count |
2 x 2 S/PDIF Channels (reduces AES/EBU input channels) |
|
Input And Output |
2 x DB25 connectors (AES59 Combined I/O / Tascam Digital) |
|
Alternate Input (Optional DARS) |
1 x Female XLR (replaces DB25 channels 1-2) |
|
Alternate Output |
1 x Male XLR (duplicates DB25 channels 1-2) |
|
S/PDIF |
|
|
Channel Count |
2 x 2 S/PDIF Channels (reduces AES/EBU input channels) |
|
Input |
1 x RCA phono socket (replaces DB25 channels 3-4) |
|
Output |
1 x RCA phono socket (switchable, duplicates any DB25 channel pair) |
|
Word clock |
|
|
Input |
1 x BNC 75Ω port (switchable termination) |
|
Output |
1 x BNC 75Ω port |
