Product Information
Focusrite ISA ADN2
With the introduction of the ISA ADN2, the classic ISA mic pre can be implemented directly on a Dante network, providing console-grade preamps to the most advanced of audio networks. ISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT and S/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

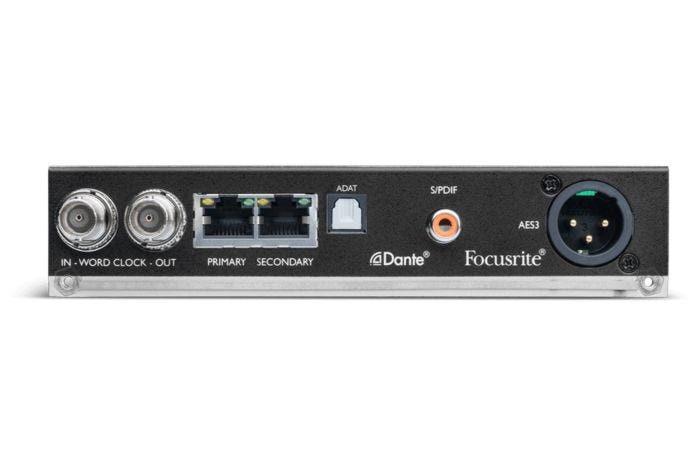

The card offers a familiar set of standard professional connectors with primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIF output. Word Clock I/O on BNC connectors allows synchronisation with many external devices.
Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller. RedNet Control software included.
- Two-channels of high-quality, precision analogue-to-digital converter for ISA One
- Up to 24-bit/192kHz sample rate
- Dante connectivity via Primary and Secondary Ethernet ports provide redundancy and auto switchover in case of failure
- Two-channel XLR connection for AES3 output
- Two-channel RCA connection for S/PDIF output
- Two-channel TOSLINK connector for ADAT output
- Word Clock I/O on BNC connectors allows synchronisation with many external devices
- RedNet Control and Dante Controller software (included) allow Dante routing and control from a computer; no hardware patching required
|
Audio performance |
|
|---|---|
|
0 DBFS Reference Levels |
22dBu |
|
Frequency Response |
20Hz - 20kHz ±0.1dB |
|
THD+N |
-105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input |
|
Noise In Presence Of Signal |
-121dBu 'A'-Weighted (typical) |
|
Dynamic Range |
121dB 'A'-weighted (typical), 20Hz - 20kHz |
|
Digital performance |
|
|
Supported Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
|
Clock Sources |
Internal or Word Clock |
|
Front panel output connectivity |
|
|
Channel Count |
2 x Dante channels |
|
Output |
1 x Male XLR |
|
Dante |
|
|
Output |
2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above) |
|
Channel Count |
2 x Dante channels |
|
AES3 |
|
|
Channel Count |
2 x Dante channels |
|
Output |
1 x Male XLR |
