Dulens MF60 Lens Checker | Projector with PL mount & Standard Reticle
Availability:In stock
Cat No.
65715
SKU
MF60
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£5,616.00
£4,680.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Dulens MF60 Lens Checker | Projector with PL mount & Standard Reticle

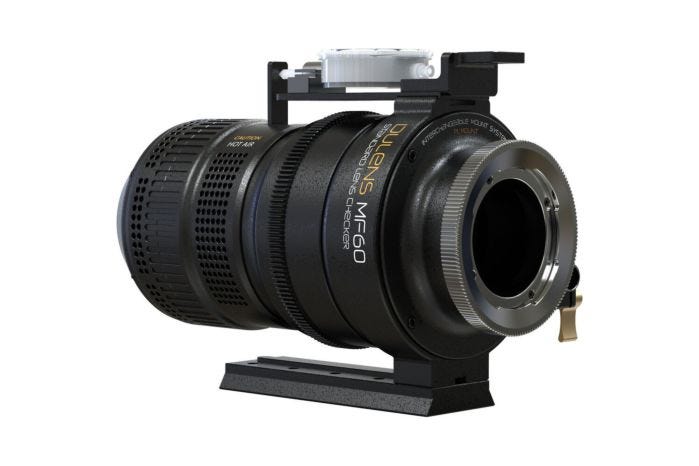

Introducing Dulens MF60 Portable Lens Projector. Whether used as a fixture in a controlled environment or live on-location, this lightweight portable projector makes lens testing easy.
Our Standard Reticle Chart displays the following formats:
- Super 16mm : 12.52 x 7.4mm
- MFT: 17.3 x 13mm
- Super 35mm : 24.89 x 18.67 mm
- ALEXA 35 : 27.99 x 19.22 mm
- Full Frame : 36×24 mm
- RED Vista Vision: 40.96 x 21.6 mm
- ALEXA LF : 36.7 x 25.54 mm
- GFX Frame : 44 x 33 mm
- ALEXA 65: 54.12 x 25.58 mm
- MF60 Lens Projector
- PL Mount
- Standard Reticle Chart
- 15mm Rod and Bracket
- AC Adaptor
- ARRI Standard Release Plate
| Body Material | Aluminum Alloy |
|---|---|
| Body Weight | 7.3 lbs / 3.3kg |
| Size (WxHxL) | 9.4x6.6x4.7" / 240 x 168 x 120 mm |
| Mount | PL, LPL, EF, E, RF, GFX, and more |
| Optical Lowpass Filters | 2mm, 2.5mm, 3mm ( Extra Cost) |
| Projector | 50W LED Ra97 Light 6500k, 4000 Lumens |
| Dimmable | 6 Steps |
| Adjustable Beam Focus | 0.15'' / 4mm forward & Backwards |
| Digital Measuring Guage | Only comes with complete package |
| Power | 19V 90W DC Power Supply |
