Deity BF1 Butterfly Antenna - Wideband Antenna
Availability:In stock
Cat No.
60040
SKU
6971842183098
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£306.00
£255.00
-
Price Match
Request here
Product Information

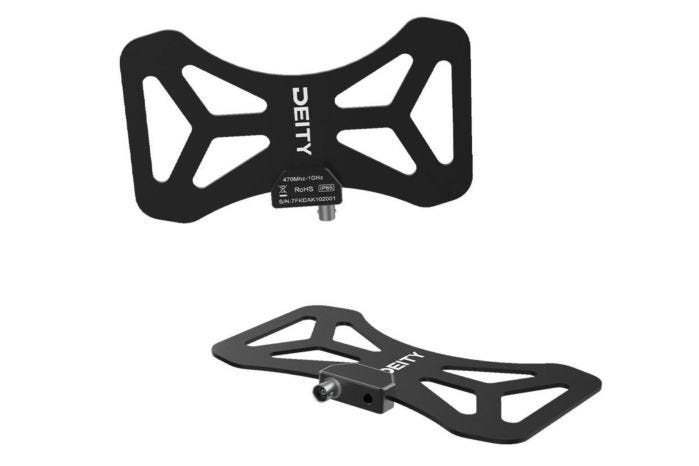

Deity BF1 Butterfly Antenna - Wideband Antenna
A butterfly antenna is a type of antenna that is used in wireless microphone systems on film sets and stage applications. It has some unique characteristics that make it well-suited for certain purposes in these contexts.
The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference, and a broadband antenna like ours that can cover all these bands without needing frequent adjustments.
SUPPORTS GLOBAL ONEBAND™ FREQUENCIES
The Deity Butterfly supports a ultra wideband of frequencies; 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem but also plenty of extra frequency bandwidth to support other brands wireless as well.
Now when you go into an antenna splitter, you can mix-n-match different blocks/bands.
WEATHER SEALED HOUSING
The BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install.
METAL MOUNT BRACKETS
The mounting bracket is made out of CNC'd Aluminum which provides a rugged and secure block for a 1/4" 20 threaded mounting hole.
The ball head pivot arms are also made out of 100% metal, making for a durable accessory.
*The Deity Stereo Antenna Bar not included
- BF1 Antenna 2x
- Antenna Pouch 1x
- Antenna Clamp Mount 2x
- BNC - BNC Cable 2x
- BNC - SMA-M Cable 2x
| Antenna Type | Passive Antenna |
|---|---|
| Frequency Range | 470 MHz - 1GHz |
| Input impedance(2) | 50 |
| Standing wave ratio | <1.5 (550MHz~750MHz) |
| Gain(dBi) | 2.2dBi (Average) |
| Antenna polarization | Linear |
| Material | Composite fiberglass material |
| Installation interface | 1/4" threaded mounts |
| RF interface | BNC |
| Size | 190*118*14mm |
| Weight | ~95g (excluding cable) |
