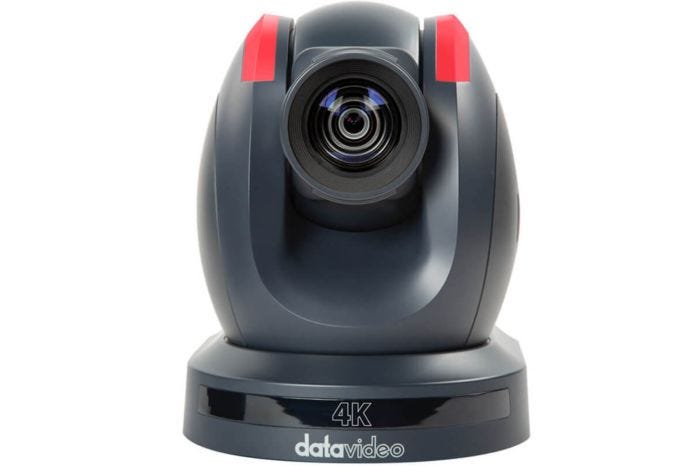

Datavideo PTC-305NDI 4K 20x Tracking NDI PTZ Camera - Dark Grey

Datavideo PTC-305NDI 4K 20x Tracking NDI PTZ Camera - Dark Grey

Datavideo is introducing the 4K50/60p Auto Tracking PTZ camera, PTC-305NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP.

This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

MULTIPLE SIMULTANEOUS VIDEO OUTPUT
PTC-305NDI supports multiple simultaneous video output formats. It can output video in HDMI 2.0 and IP formats at resolutions up to 2160p (50/60 frames per second). Additionally, it offers 3G-SDI output at resolutions up to 1080p (60/50 frames per second). This allows for flexible integration with various production setups and equipment.

QUICK ACCESS TO CAMERA'S AUTO TRACKING
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers.

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

CUSTOM AUTO OBJECT TRACKING
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

SMART PTZ SPEED ADAPTATION
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

TALENT POSITION: CENTER / LEFT SIDE / RIGHT SIDE
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

QUICK SELECTION OF FULL BODY / HALF BODY / CLOSE-UP
All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

SIMPLY ENABLE AUTO TRACKING WITH YOUR IR REMOTE CONTROL
RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

PTZ VIEW ASSIST: CONTROL UP TO FOUR CAMERAS
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

LOW NOISE IN LOW LIGHT
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

MULTIPLE SIMULTANEOUS VIDEO OUTPUTS
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

MULTIPLE NETWORK PROTOCOL WITH DUAL STREAM FUNCTION
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

COMPATIBLE WITH VARIOUS CONTROLLERS
Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

COMPLIANT WITH THE ONVIF PROFILE S STANDARD
The PTC-305 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

RS-422, DVIP AND ETHERNET CAMERA CONTROL
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

TALLY LIGHT
Green and red lights tally to show the preview and program status for broadcast applications.

WIDE 60° FIELD OF VIEW
PTC-305NDI provides a wide Field of View of 60°, easily shooting all the scenes in the field.

SUPPORTS H.264/H.265 VIDEO COMPRESSION
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.

ONE ETHERNET CABLE WITH NDI® | HX3 TECHNOLOGY
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.

The PTC-305NDI camera supports both NDI | HX3 and NDI | HX2 technologies, with switchable functionality.
NDI® is a registered trademark of Newtek, Inc.

POWER OVER ETHERNET
The PTC-305NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-305NDI.

NDI® VIRTUAL INPUT
Present PTC-305NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

• 4K 20x Tracking NDI PTZ Camera
• Custom Auto Object Tracking
• Low Noise in Low Light
• Compatible with Various Controllers
• Tally Light
• Wide 60° Field of View
• Supports H.264/H.265 Video Compression
• One Ethernet Cable with NDI® | HX3 Technology
• Power over Ethernet
• RMC-1AT PTZ Controller included
