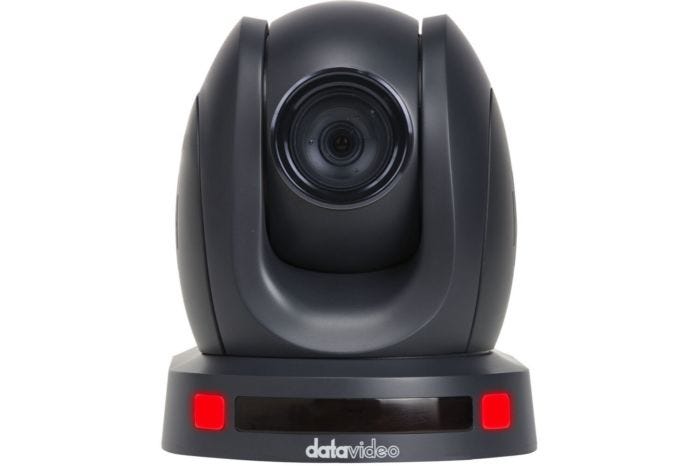

Datavideo PTC-145 HD PTZ Camera - Dark Blue

Datavideo PTC-145 HD PTZ Camera - Dark Blue

Introducing the PTC-145, a versatile PTZ camera designed for enhanced visual experiences. The 1/2.8” CMOS sensor delivers outstanding image quality with 20x optical zoom and 8x digital zoom.

Offering HDMI, 3G-SDI, and streaming outputs, it connects to various devices with ease. Equipped with line-in and 3.5mm microphone inputs for exceptional audio quality.

This camera features one-click AI Tracking, enabling smooth camera movements without a dedicated operator. Simultaneous streaming to two platforms is effortless.

Available in stylish dark blue or white options, it complements indoor design preferences. Elevate your visual excellence with the PTC-145 camera.

Simultaneous Outputs

For added flexibility in your workflow, connect your PTC-145 to multiple devices simultaneously using its versatile output connection options: HDMI, SDI, and RJ-45 PoE. All of these output options can be active at the same time, ensuring seamless integration into your setup.

20x Optical Zoom, 8x Digital Zoom

The PTC-145's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 3D Noise Reduction Function

The PTC-145 supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.

Quick Access to Camera’s Auto Tracking

You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.

In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, KMU-200/300, SHOWCAST 100, etc.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, thus avoiding interferences such as desks, people coming and going, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems such as jerky movements or unexpected halts.

Talent Position: Center / Left Side / Right Side

The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up

All of the PTC-145 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

S-Shaped Speed Curve

The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTC-145 camera ensures your video captures maintain uninterrupted fluidity.

This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the PTC-145.

Simply Enable Auto Tracking with Your IR Remote Control

The RMC-1AT PTZ Controller is all you need; it allows you to use a remote control to set and control all four cameras and save the four presets.

RMC-1AT PTZ Controller

Power
Press to activate the camera or enter standby mode.

Camera Selection/Setting
Select to set or control up to four cameras.

Menu
Press the menu button to open the OSD menu, revealing all the camera's functions.

Camera Presets
Each camera is allowed up to four presets which store the camera’s current pan, tilt and zoom position, as well as settings such as iris, focus and movement speed. Presets allow quick access to settings required for specific camera shooting.

Focus
Ergonomic design to ease manual focus adjust.

Zoom
Sets zoom speed and zooms in and out.

Micro Joystick
The joystick controls the pan and tilt directions or selects options or values while the OSD menu is opened.

IP Address Reset
Press and hold to restore the default IP address.

Return
This returns the camera lens position to the Home position. When the OSD menu is opened, this button returns to the previous menu hierarchy level.

AF Auto Focus
Press the AF button to turn on/off auto focus function.

Store
Saves the current pan, tilt and zoom settings of the camera as well as settings such as iris, focus and movement speed to presets 1 to 4.

AT Tracking Enable
The AT button activates the auto tracking function with one key. Users can quickly select full-body, half-body, and close-up framing, making it easy to change the shooting scene and framing requirements.

Wide 60° Field of View

The PTC-145 offers an expansive 60° Field of View, effortlessly capturing all scenes within its frame. This generous field of view ensures that it can encompass and record all the pertinent moments in the given area, delivering comprehensive visual coverage.

H.264/H.265 Video Compression for Streaming

With built-in streaming encoder, the PTC-145 can encode up to 2 simultaneous streams to any cloud service.

Simple Multi-Camera Control at Your Fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to 4 Datavideo PTC-145 cameras for any live video production.

RMC-300A can Control Up to 24 PTC-145 Cameras

Designed to control up to 24 PTC-145 cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-145 cameras simultaneously, 7 presets for each camera to operate with RGB backlit buttons.

Multiple Network Protocol

Support RTSP, RTMPS, SRT, ONVIF, Multicast protocols, easy to stream directly to your desired CDN streaming platform.

Compliant with the ONVIF Profile S Standard

The PTC-145 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

Power over Ethernet

The PTC-145 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-145.

Remote Control and Preview by Web User Interface

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

FREE PTZ View Assist APP

Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-145 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Build a Reliable SRT Live Streaming Workflow with All Datavideo Products

Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
