£1,370.40
£1,142.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

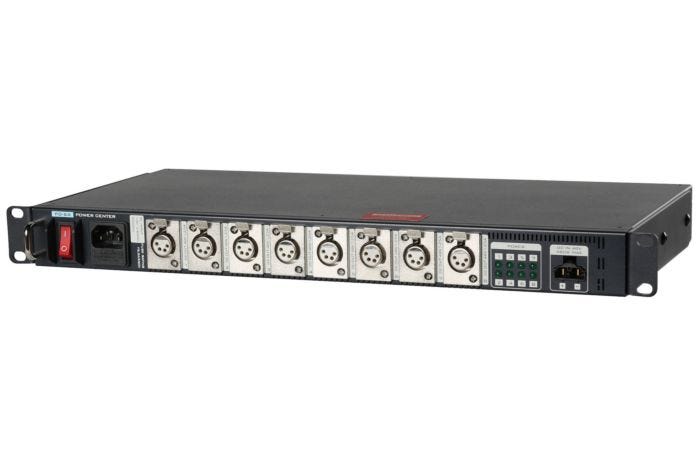

Datavideo PD-6A Power Center
One power supply can provide the power source for up to eight devices
Each DC output provides 48V/60W, and 8 DC outputs with a combined total power consumption of 500W.
PD-6A is designed to provide both DC & AC overload protection
Redundant hot-swappable power supplies.
DC output LED indicator
Automatically adjusts to work with 50Hz or 60Hz supplies between 100-240 VAC.
Different optional accessories available
Compatible with Datavideo CB-22H, CB-23H All in one cable, DDC-4012H XLR DC-DC Converter and VP-605H All In One Cable Extender.
- 1 x PD-6A Product
- 1 x AC Cord
| AC Input | 100~240 VAC (50Hz or 60Hz) (500W: 110V-120V/5A~220V-240V/2.6A) AC input outlet: One AC input with Power Switch |
|---|---|
| DC Output | 8 DC Outputs (4 pin female XLR) 60W: 48V (1.25A) PIN 1: GND PIN 2: DC OUT PIN 3/4: N/C |
| Max. Power Rating | 500W |
| DC Overload | 105%~150% rated output power Protection type: Recovery automatically after fault condition is removed |
| AC Overload | non-recovery fuse on the AC input outlet |
| LED Indicator | LED indicator for DC output: Green on operation Note: If DC out is shorted or overloaded, the LED indicator will be turned off. |
| Dimension (LxWxH) | 440 x 235 x 46 mm |
| Weight | 5.2 kg |
| Power | AC 100-240 VAC |
| Operating Temp. Range | 0~40 °C |
