Datavideo OBV-3200 HD-12-Channel Mobile Video Studio

Datavideo OBV-3200 HD-12-Channel Mobile Video Studio

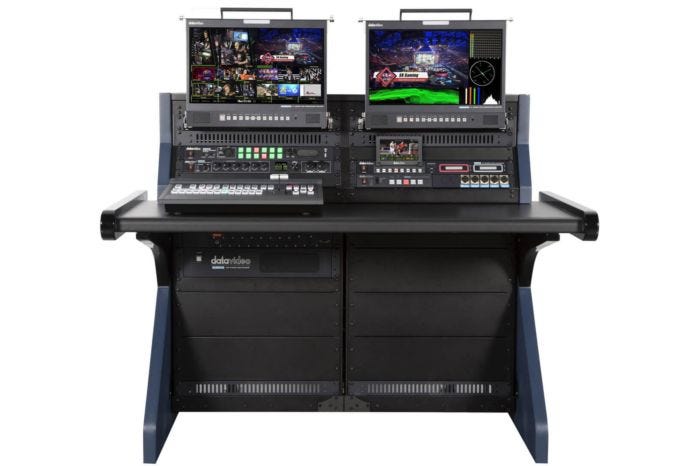

Datavideo OBV-3200 is designed to fit into the back of a small van to provide complete mobile production facilities. It’s a transportable solution for broadcasters and video professionals for both in-studio and on-location productions.

Built around the latest Full HD switcher, it supports up to 12 channels of 1080p Full HD-SDI and HDMI video signals. The system is integrated in a sturdy rack with a new design Console Desk for great stability and protection.

The system is fully equipped with functions such as intercom, video transmission, audio delay and scope monitor.

Completely Customizable 12 Inputs Full HD Production Switcher
The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.

Suitable for Large-Sized Productions
The OBV-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.

17.3'' Full HD Pull-Out Monitor
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.

A Real Mobile Studio for Your Needs
Mobile Video Studios are all-in-one video production studios in a rugged aluminum case and can be customized to fit in an OB Van.

Rackmountable 8 Channels Intercom System
The ITC-300 provides 8-Way talkback and bi-colour tally indicators.

UHD ProRes Recording and Compressed in 10-Bit 4:2:2 ProRes
Large 5" LCD Touch screen for operating and monitoring.

Built-In Camera Control
Control up to 4 cameras from one CCU-200 Camera Control Unit combined with the supplied AD-3 units.

H.264 Streaming and Recording Simultaneously
NVS-35 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.

The encoder supports different bitrates for recording and streaming, allowing user live stream video to YouTube, Facebook and many other platforms.

Recording to SD Card with either NTFS and FAT file system to keep the continuous recording with a file size limit of 4GB.

Seamlessly Compatible with dvCloud
Get the most out of your streaming hardware using DVCloud. The OBV-3200 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
