Product Information

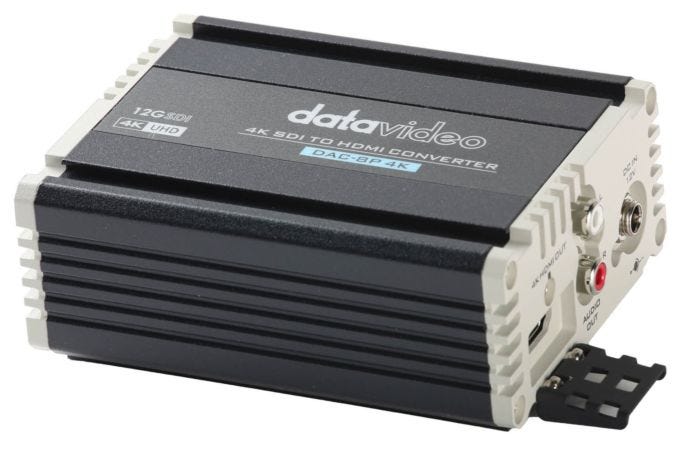

Datavideo DAC8P4K Converter
The DAC-8P 4K Converter converts 12G-SDI in resolutions up to 4K50/60 to 4K HDMI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.
Featuring SDI input and both an SDI and HDMI output, audio is de-embedded from the SDI input, and available in the HDMI output and analog audio output.
The DAC-8P 4K Converter is useful for a variety of broadcast, professional AV and education applications.
Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
The DAC-8P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop.
Supports SDI Re-Clocking
DAC-8P 4K will regenerate the SDI video, and provideo less SDI jitter to improve SDI eye pattern. DAC-8P 4K allows for a long cable transmission.
12G-SDI input and loop-thru output
In addition to the converted 4K HDMI output, there is a 12G-SDI loop thru for sending a signal to other devices in your workflow.
Not only a video converter, but also an audio de-embedder.
DAC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.
Supports HDMI Deep Color
HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.
Aluminum appearance design, rugged and durable
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
- 1 x DAC-8P 4K
- 1 x AD Switch DC 12V
| Conversion | 12G-SDI to HDMI 2.0 |
|---|---|
| Video Inputs | 12G-SDI x 1 |
| Loop Through | 1 |
| Video Outputs |
1x HDMI 2.0 with embedded Audio
|
| Audio Inputs |
SDI embedded audio, 24-bit, 16-channel
|
| Audio Outputs |
RCA x 2 (Unbalanced Audio L/R)
HDMI embedded audio, 24-bit, 8-channel |
| Supported Video Input Formats |
4096x2160p: 60/59.94/50/30/29.97/25/24/23.98
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Output Resolutions |
Automatically matches the HD, 3G and 12G SDI video input
|
| Equalizer |
Yes
|
| Reclock |
Yes
|
| SDI Cable Drive |
Yes
|
| Updates and Configuration |
USB Type C x 1
|
| Dimension (LxWxH) |
112 x 85 x 45 mm
|
| Weight |
0.3 kg
|
| Operating Temp. Range |
0~40 °C
|
| Power |
DC 12V, 8.64W
|
