Chrosziel Compact Control-Unit for Fujinon Zoom MK 18-55

Availability:In stock
Cat No.
55922
SKU
CDM-MK-Z2
Chrosziel

Not in stock - Usually delivered in 10-14 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. If you require urgent collection and the product is showing in stock , please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£2,012.40 £1,677.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £250

  • Price Match

    Price Match

    Request here

Product Information

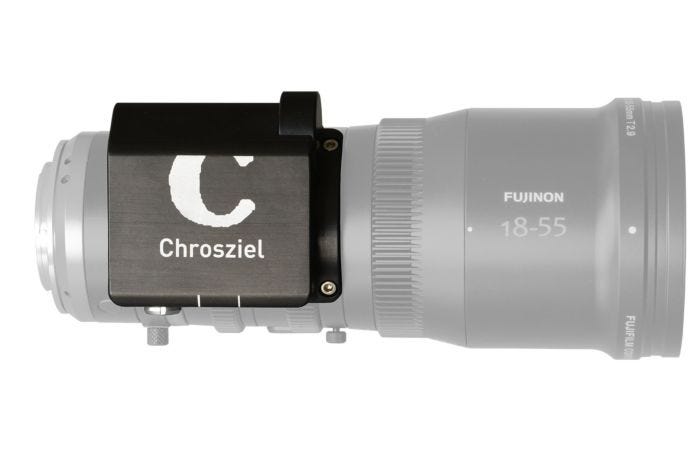

Chrosziel Compact Control-Unit for Fujinon Zoom MK 18-55

CDM-MK-Z2 - compact control-unit for Fujinon Zoom MK 18-55, 50-135mm for controlling zoom. For usage with orig. Sony handgrip (PXW-FS5, PXW-FS7) or LANC zoom devices. Incl. 1x digital servo-motor-unit, 1x LANC cable, 1x LANC extension cable, 1 x MN-AB (powercable 12 Volt A/B D-Tap 0B 5pin), 1x Allen Key, 1x Mini-USB-adapter.

CONTROLLED VIA SONY FS & LANC HANDGRIP
Control directly the zoom servo drive via optically de-coupled LANC sockets and Sony FS5 / FS7 handgrip zoom rocker. Other zoom rockers with LANC protocol are compatible too, e.g. mounted to handgrip.

CAMERA CONTROL SIGNALS FORWARDED
Control signals (e.g. menu / user buttons / focus magnification / camera run & stop) are immediately looped through to the camera.

SINGLE UNIT MOUNTED ONTO LENS
Two captive screws keeping the single servo drive unit permanently fixed onto lens.

4 ZOOM MODES
1st EB / Documentary, 2nd Live / Hardcut, 3rd Silent, 4th Direct Mode

The mounting of the Lens Motorization MK-Zoom is very comfortable. Just screw the two screws into the threads at the Fujinon lens. After that, connect the polarity protected D-Tap power cable with the appropriate camera port and the 2,5 to 2,5 mm plus the 3,5 mm to 2,5 mm Jack cables with the handgrip and the camera.

The slighly rounded CDM-MK-Z2 housing fits perfectly with the Fujinon lens. The gear meshes exactly with the zoom gear ring of the lens. The integrated PCB with CPU of the zoom motor sets instantaneously control commands that come from a SONY or any other LANC-compatible handle.

  • 1x Servo Device Unit
  • 1x D-Tap power cable (different options depending on camera system)
  • 1x 3.5 mm to 2.5 mm Jack-Jack cable
  • 1x 2.5 mm to 2.5 mm Jack Extension Cable
  • 2x captive mounting screws
  • 1x 2.5 mm Allen Key
  • 1x Mini-USB-Adapter (USB -> MiniUSB)
