Product Information

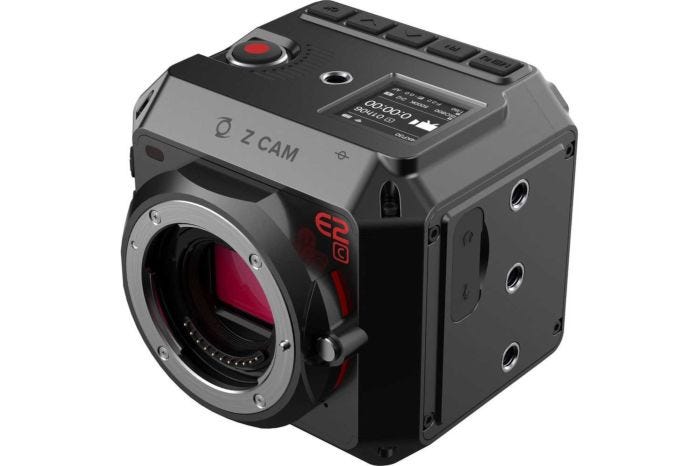

Z CAM E2C 4K Cinema Camera
The Z Cam E2 Cinematic Camera is a 4K Ultra HD High Resolution camera. The camera comes with multi-cam synchronisation, an iOS app for control setting and live preview options, and gigabit ethernet for data, control and live streaming. It has 13~15 stops of dynamic range (16 WDR Enabled) and its 4K @30fps, 10-bit colour for endless high quality shooting.
Z Cam App
Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.
Key Features
- 4K @ 30fps, 10-bit color
- 4/3" CMOS sensor
- 11.5 stops dynamic range
- Gigabit Ethernet for data, control & live streaming*
- iOS app for control setting & live preview
- POE supported
*requires Z CAM™ software running on PC
- 4K @ 30fps, 10-bit color
- 4/3" CMOS sensor
- 11.5 stops dynamic range
- 1x Z CAM E2C Camera Unit
- 1x Coiled 2-pin LEMO to D-tap Power Cable
- 1x D-tap to Female DC Power Cable
- 1x Wi-Fi Antenna
| Camera Features | |
|---|---|
| Sensor Type | 4/3" CMOS Sensor |
| Sensor Size | 17.56 x 13.11mm |
| Effective Pixels | 16.83M |
| Dynamic Range | 11.5 Stops (Z-Log2) |
| Lens Mount | Micro Four Thirds |
| Microphone | Built-in Stereo Microphone |
| Recording | |
| Resolution & Frame Rate | 3840 x 2160 @ 29.97 / 25 / 24 / 23.98 fps 2880 x 2880 @ 29.97 / 25 / 24 / 23.98 fps 1920 x 1080 @ 59.97 / 50 / 29.97 / 25 / 24 / 23.98 fps DCI 4K |
| Color Bit Depth | 10-bit (H.265) / 8-bit (H.264) |
| Video Encoder * | H.265 main 10 profile / H.264 high profile |
| Audio Format | 16-bit 48 kHz |
| Audio Encoder | AAC / PCM (for MOV only) |
| File Format | MOV / MP4 |
| Record Mode | Video / Time Lapse Video |
| Settings | |
| ISO | Auto, Manual (800 ~ 25600) |
| Shutter | Shutter Speed: Auto, Manual (up to 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°) |
| White Balance | Auto, Preset, Manual (2300K ~ 7500K) |
| Focus Mode | MF / AF / CAF |
| Image | Brightness / Contrast / Saturation / Sharpness |
| LUT | Rec.709 / Z-Log2 / FLAT / HLG |
| Audio | Audio In / Audio Out Level |
| Time Code | Current Time / Manual Input |
| Storage | |
| Media | SDXC Class 10 SD card. Recommend to use UHS-I Speed Class 3 (U3) ones for 4K video recording |
| File System | exFAT |
| Connectivity | |
| HDMI | HDMI 2.0 Type A |
| USB | USB 3.0 Type C for camera control & data transfer only |
| Remote Control | 2.5 mm jack socket (Sony LANC compatible) |
| Audio-in | 3.5 mm stereo jack socket for active microphone only |
| Audio-out | 3.5 mm stereo jack socket |
| Wi-Fi | 802.11n, 2.4G with external antenna port |
| Ethernet | Gigabit Ethernet port for control, setting & live streaming, POE supported |
| Power | |
| Battery | Canon LP-E6 compatible (Battery not included) |
| External Power Supply | DC 12V/1.5~5A, with power cable with D-TAP plug & D-TAP/DC connector (AC/DC adapter not included) |
| Power Over Ethernet (POE) | 802.3at/af compatible, need CAT5E or above Ethernet cable |
| Physical | |
| Material | Aluminum Alloy |
| Weight | 668 g (without lens) |
| Dimensions (W x H x D) | 91.2 mm x 83.9 mm x 89.1 mm (without lens) |
| Environment | |
| Storage Temperature | -20 °C ~ 60 °C |
| Operation Temperature | 0 °C ~ 40 °C |
