Product Information

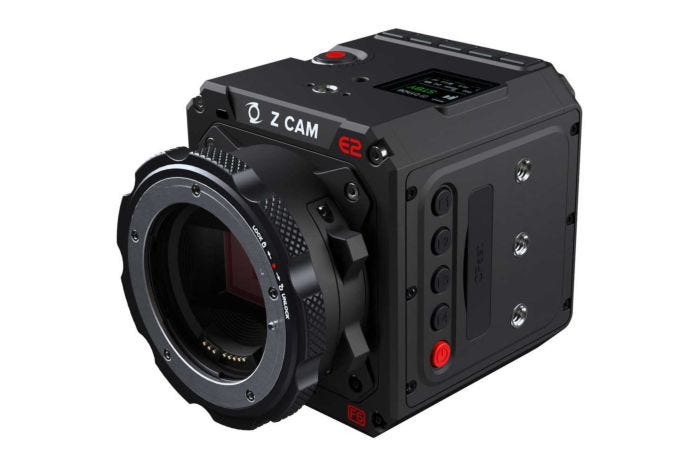

Z CAM E2-F6 Full Frame 6K Cinema Camera
Z Cam E2 F6 Full Frame 6K Cinema Camera with EF Mount.
Z Cam App
Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.
Key Features
- 6K @60fps* & 4K @120fps* max, 10-bit color
- Full Frame CMOS sensor
- 15 stops dynamic range
- ZRAW supported
- EF lens mount**
- Gigabit Ethernet for data, control & live streaming***
* In 2.4:1 aspect ratio
** Different hardware variants
*** Requires Z CAM™ software running on PC
- 6K @60fps* & 4K @120fps* max, 10-bit color
- Full Frame CMOS sensor
- 15 stops dynamic range
| Camera | |
|---|---|
| Sensor Type | Full Frame CMOS Sensor |
| Sensor Size | 37.09 x 24.75 mm |
| Effective Pixels | 26M |
| Dynamic Range | 15 Stops |
| Lens Mount | EF mount (with optional M, MFT, and PL mount accessory) |
| Microphone | Built-in Stereo Microphone |
| Recording | |
| Resolution & Max Frame Rate | 6064x4040 @30fps max (Open Gate) 6064x3196 @48fps max (6K DCI) 6064x2560 @60fps max (6K 2.4:1) 5760x3240 @48fps max (6K UHD) 5376x4032 @30fps max (5K 4:3) 4848x4040 @30fps max (5K 6:5) 4096x2160 @72fps max (4K DCI) * 4096x1728 @120fps max (4K 2.4:1) 3840x2160 @72fps max (4K UHD) * 1920x1080 @120fps max (FHD) * supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode |
| Video Encoder | ZRAW* / H.265 main 10 profile / H.264 high profile** * up to 4K @30fps |
| Bit Rate | 300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW |
| Color Bit-depth | 12-Bit ProRes RAW / 12-bit ZRAW / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264) |
| Audio Format | 16-bit 48 kHz |
| Audio Encoder | AAC / PCM (for MOV only) |
| File Format | MOV / MP4 |
| Record Mode | Video / Time Lapse Video |
| Settings | |
| ISO | Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500 |
| Shutter | Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°) |
| White Balance | Auto, Preset, Manual (2300K ~ 7500K) |
| Focus Mode | MF / AF / CAF |
| Image | Brightness / Contrast / Saturation / Sharpness |
| Image Config | Rec.709 / Z-Log2 / FLAT / HLG |
| Audio | Audio In / Out Level |
| Time Code | Current Time / Manual Input |
| Storage | |
| Media | CFAST 2.0 |
| File System | exFAT |
| Connectivity | |
| HDMI | HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2) |
| USB | USB 3.0 Type C for camera control & data transfer only |
| COM | 2 x Serial Port |
| Remote Control | 2.5 mm jack socket (Sony LANC compatible) |
| Audio-in | 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector) |
| Audio-out | 3.5 mm stereo jack socket |
| Wi-Fi | 5G, 802.11n with external antenna port |
| Ethernet | Gigabit Ethernet port for control, setting & live streaming |
| Power | |
| Battery | Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included) |
| Power Input | DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector |
| Power Output (AUX) | DC 12V (2-pin LEMO socket) |
| Physical | |
| Material | Aluminum Alloy |
| Weight | 1090g (EF mount) / 1160g (PL mount) |
| Dimensions (W x H x D) | 91.20mm x 99.25mm x 122.25mm (EF mount) 91.20mm x 99.25mm x 133.35mm (PL mount) |
| Environment | |
| Storage Temperature | -20 °C ~ 60 °C |
| Operation Temperature | 0 °C ~ 40 °C |
