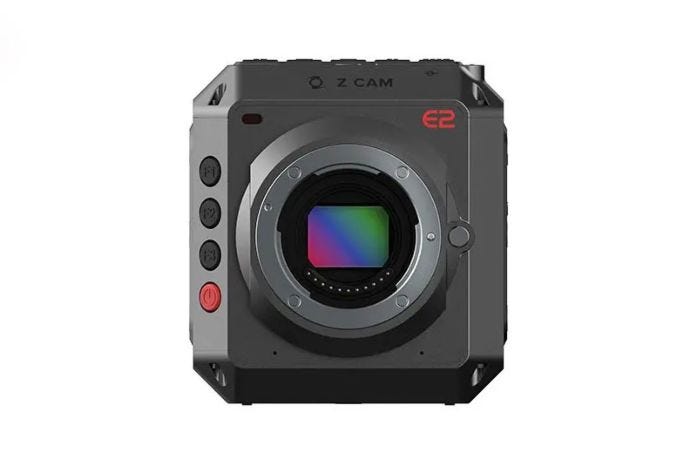

Z CAM E2 4K Cinema Camera

Availability:In stock
Cat No.
52141
SKU
E1503
Z Cam

Available to Order

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£2,019.00 £1,682.50
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Z CAM E2 4K Cinema Camera

The Z Cam E2 Cinematic Camera is a 4K Ultra HD High Resolution camera. The camera comes with multi-cam synchronisation, an iOS app for control setting and live preview options, and gigabit ethernet for data, control and live streaming.  It has 13~15 stops of dynamic range (16 WDR Enabled) and its 4K @120fps, 10-bit colour for endless high quality shooting.

Z Cam App
Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Please Note: For NEW cards please use CFast reader and not camera as card reader. Use Mac or Windows to formatt NEW CFast cards too.

Key Features

  • DCI and UHD 4K up to 120 fps
  • 13~15 stop Dynamic Range (16 WDR Enabled)
  • 10-Bit Color Recording, Supports ProRes
  • 4/3" WDR CMOS Sensor
  • Multicamera Synchronisation
  • Gigabit Ethernet for data, control & live streaming
  • iOS app for control setting & live preview
  • DCI and UHD 4K up to 120 fps
  • 13~15 stop Dynamic Range (16 WDR Enabled)
  • 10-Bit Color Recording, Supports ProRes
  • 1x Z CAM E2 Camera Unit
  • 1x 4-pin LEMO to D-tap Power Cable
  • 1x D-tap to Female DC Power Cable
  • 1x AC/DC Power Adapter
  • 1x Power Cables (US / EU / UK)
  • 1x Wi-Fi Antenna
  • 1x Quick User Guide
  • 1x Warranty Card
Camera Features
Sensor Type 4/3" WDR CMOS Sensor
Sensor Size 19.0 x 13.0 mm
Effective Pixels 10.28M
Dynamic Range 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount Micro Four Thirds
Microphone Built-in Stereo Microphone
Recording
Resolution 4096 x 2160 (C4K) / 3840 x 2160 (4K)
4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
3696 x 2772 / 3312 x 2760
2704 x 1600 / 1920 x 1080
Frame Rate 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
Max Variable Frame Rate 120 fps for 4096 x 2160 (H.265 only)
120 fps for 3840 x 2160 (H.265 only)
150 fps for 4096 x 1728 (H.265 only)
160 fps for 3840 x 1620 (H.265 only)
160 fps for 2704 x 1600 (H.265 only)
59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
240 fps for 1920 x 1080 (H.265 only)
Max Bit Rate H.265 / H.264
300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
200 Mbps for 1920 x 1080
ProRes
Please check “Apple ProRes White Paper” for the bit rate of ProRes encoding.
Color Bit Depth 12-bit ProRes Raw / ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
Video Encoder ProRes Raw, ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
Audio Format 16-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4
Record Mode Video / Time Lapse Video
Settings
ISO Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
Shutter Shutter Speed: Auto, Manual (up to 1/8000”) or
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Brightness / Contrast / Saturation / Sharpness
Image Profile Rec.709 / Z-Log2 / FLAT / HLG
Audio Audio In / Out Level
Time Code Current Time / Manual Input / External Input
Storage
Media CFAST 2.0
File System exFAT
Connectivity
HDMI HDMI 2.0 Type A (video output up to C4K @60fps)
USB USB 3.0 Type C for camera control & data transfer only
I/O 10-pin LEMO port for synchronization (requires additional Sync Cable, not included)
COM DB-9 connector, supports RS-232
Remote Control 2.5 mm jack socket (Sony LANC compatible)
Audio-in 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
Audio-out 3.5 mm stereo jack socket
Wi-Fi 802.11n, 2.4G with external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Power
Battery Sony NP-F series compatible (Battery not included)
External Power Supply DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter
Physical
Material Aluminum Alloy
Weight 757 g (without lens)
Dimensions (W x H x D) 91.2 mm x 99.2 mm x 89.1 mm (without lens)
Environment
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C
