Supports multiple SD and HD codecs including XAVC at 100 Mbps

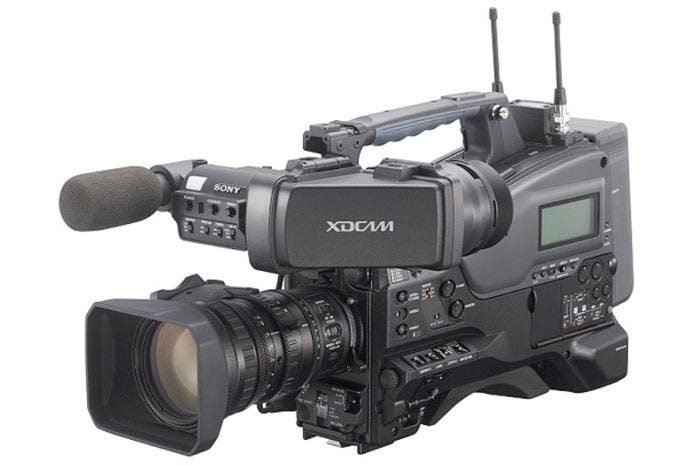

The PXW-X320 is a high-performance SxS memory camcorder which inherits field-proven operability from the reputable PMW-320. The PXW-X320 has become a part of the XDCAM HD422 family, comes equipped with cutting-edge imaging technology – three 1/2-inch-type Full-HD Exmor CMOS sensors with an extremely high S/N ratio – with Flash Band Reducer feature to provide outstanding picture quality.
The PXW-X320 supports XAVC offering high quality content creation in the HD domain. In addition to XAVC, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM are supported. Two HD/SD-SDI, HDMI, i.LINK™, and composite outputs provide a wide range of AV and IT interfaces. The PXW-X320 also supports wireless operation using an optional adapter, the CBK-WA101. This enables easy and quick clip data transmission to broadcast stations, saving the time and transportation cost of shot clip delivery.
With various functions inherited from Sony’s world-acclaimed XDCAM camcorders and yet highly cost effective with lens included, the PXW-X320 is an ideal choice for many different camera professionals, from those engaged in news gathering, when speed is the key concern, to those who produce TV programs and documentaries, when quality is crucial.
High picture quality recording on SxS memory cards
Offer high resolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60 dB), and a wide dynamic range.
Selectable format and bit rates
Includes Full HD (1920 x 1080) 59.94i/50i/29.97p/25p/23.98p and HD (1280 x 720) 59.94p/50p, as well as XAVC Intra at 100 Mbps, XAVC Long at up to 50 Mbps, MPEG HD422 at 50 Mbps, MPEG HD at up to 35 Mbps, MPEG IMX at 50 Mbps and DVCAM at 25 Mbps.
Variety of interfaces
Interfaces include 2 x SD / HD-SDI, HDMI, USB and i.Link.
Wireless adaptor increases operational flexibility
Supports wireless operation using an optional wireless adapter, the CBK-WA101, for live streaming via an IP network.
1/2-inch 16x HD zoom lens
Supplied with a 16x high definition auto-focus optical zoom lens.
High picture quality
The PXW-X320 incorporates three 1/2-inch-type Full HD Exmor CMOS sensors (1920 x 1080) to achieve high resolution, high sensitivity (F11 at 59.94 Hz / F12 at 50 Hz), low noise (60 dB), and a wide dynamic range to give more freedom of expression for creative shooting.
Three-dimensional noise reducer
In addition to existing noise reduction features, the PXW-X320 also includes a three-dimensional noise reducer. This not only detects vertical and horizontal direction in a frame picture but also noise components in a time axis, utilising correlation characteristics between video frames. Using this feature, the S/N ratio is improved to 60 dB, which is the highest level of noise reduction in a 1/2-inch-type Full HD shoulder camcorder.
Selectable format and bit rates
The PXW-X320 incorporates XAVC in the HD domain at a 100 Mbps data rate, enabling the creation of rich content with 10-bit quality. It is capable of recording XVAC Intra at 1920 x 1080 Full HD 59.94i, 50i, 29.97p, 25p and 23.98p, or 1280 x 720 HD 59.94p and 50p. The camcorder can also record Full HD video (1920 x 1080) at up to 50 Mbps using XAVC Long and MPEG HD422, as well as MPEG HD at 35 Mbps / 25 Mbps, MPEG IMX at 50 Mbps, and DVCAM at 25 Mbps in MXF file, as standard supported formats.
High resolution 3.5-inch colour LCD viewfinder
With a large, easy-to-read 3.5-inch QHD colour LCD viewfinder as a standard accessory, the PXW-X320 offers outstanding resolution of 960 x 540 pixels, strongly supporting critical focus control during HD shooting. The viewfinder cover can be flipped up to enhance visibility when the camera is set on a tripod.
Wireless adaptor increases operational flexibility
The PXW-X320 is designed to support wireless operation using an optional wireless adapter, the CBK-WA101, which can be attached without any additional cables. Using this adapter, you can stream out pictures for live shooting via an IP network. After shooting, you can select a recorded proxy or high resolution* file from the list and upload it to an on-premises server or to a cloud service via a mobile Wireless LAN router or 3G/4G/LTE device. The adapter also provides live monitoring and remote control of the PXW-X320 by mobile tablet or smartphone with mobile application software.
*A USB connection is required.
Enhanced flash band reducer
Incorporating a newly developed algorithm, the PXW-X320 detects and processes flash banding inside its hardware before recording begins. This provides greater flexibility in reducing flash banding across different shooting environments. This feature can be disabled from the menu if you want to use Content Browser for flash band reduction after shooting. You are free to choose to reduce flash band before or after shooting, depending on each shooting circumstance.
Customisable menu
The PXW-X320 has a User Menu feature that is typically associated only with high-end camcorders. This feature allows you to pick and organize frequently used menu items much in the same way as the bookmark feature of a web browser. By using this feature, you can save a lot of time – you won’t have to repeatedly search for specific menu items – and experience more efficient operation.
Variety of interfaces including SD / HD-SDI and i.Link
Two lines of SDI output connection are provided by the PXW-X320. This enables, for example, the director and camera operator to concurrently check shot content via two separate monitors. Also, for monitoring purposes this camcorder can be connected via HDMI to professional displays as well as domestic-use TVs with an HDMI connector. The i.LINK connector can be used for HDV when SP 1440 (FAT) mode is selected and for DV when DVCAM (FAT) mode is selected, for both input and output signal flows.
Supplied with 1/2-inch 16x HD zoom lens
With a 1/2-inch type bayonet lens mount, the PXW-X320 is supplied with a 16x high definition auto-focus optical zoom lens.
Mass
Approx. 3.4 kg (body only without lens, VF, Mic)
Approx. 7.9 lb (body only without lens, VF, Mic)
Dimensions (W x H x D) *1
124 x 269 x 332 mm (excluding protrusions, body only)
5 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)
Power Requirements
DC 12 V
Power Consumption
Approx. 25W (with viewfinder, lens and microphone while recording)
Operating Temperature
0° C to 40° C
32° F to 104° F
Storage Temperature
-20° C to +60° C
-4° F to +140° F
Continuous Operating Time
Approx. 194 min with BP-L80S
Recording Format (Video):
XAVC - XAVC-I mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
-XAVC-L50 mode: VBR, 50Mbps, MPEG-4 AVC/H.264
-XAVC-L35 mode: VBR, 35Mbps, MPEG-4 AVC/H.264
-XAVC-L25 mode: VBR, 25Mbps, MPEG-4 AVC/H.26
Recording Format (Video):
MPEG-2 Long GOP - HD 422 mode: CBR, 50 Mbps max., MPEG-2 422P@HL
- HQ mode: VBR, 35 Mbps max., MPEG-2 MP@HL
- SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14
- SD mode : MPEG IMX, DVCAM
Recording Format (Audio):
- XAVC-I mode: LPCM 24 bits, 48 kHz, 4 channels
-XAVC-L mode:LPCM 24 bits, 48 kHz, 4 channels
-HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels
-HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels
-SD MPEG IMX mode: LPCM 16/ 24 bits, 48 kHz, 4 channels
-SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channels
Recording Format (Audio):
- HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels
- HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels
- SD MPEG IMX mode: LPCM 16/ 24 bits, 48 kHz, 4 channels
- SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channels
Recording Format (Audio):
- HD mode: LPCM 16 bits, 48 kHz, 4 channels
- SD DVCAM mode: LPCM 16 bits, 48 kHz, 2 channels
Recording/Playback Time (MPEG HD):
XAVC-I Mode:
- Approx. 120 min with SBP-128B (128GB) memory card
- Approx. 60 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 30 min with SBS-32G1A (32 GB) memory card
XAVC-L50 mode:
-Approx. 240 min with SBP-128B (128GB) memory card
-Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 60 min with SBS-32G1A (32 GB) memory card
XAVC-L35 mode:
-Approx. 340 min with SBP-128B (128GB) memory card
-Approx. 170 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 85 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD):
XAVC-L25 mode:
-Approx. 440 min with SBP-128B (128GB) memory card
-Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 110 min with SBS-32G1A (32 GB) memory card
HD 422 50/ SD MPEG IMX Mode:
-Approx. 240 min with SBP-128B (128GB) memory card
-Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 60 min with G49SBS-32G1A (32 GB) memory card
HD 420 HQ Mode:
-Approx. 360 min with SBP-128B (128GB) memory card
-Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 90 min with SBS-32G1A ( 32 GB) memory card
Recording/Playback Time (MPEG HD):
SD DVCAM Mode:
-Approx. 440 min with SBP-128B (128GB) memory card
-Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
-Approx. 110 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD):
HD 422 50/ SD MPEG IMX Mode*2:
- Approx. 240 min with SBP-128B (128GB) memory card
- Approx. 120 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 60 min with G49SBS-32G1A (32 GB) memory card
HD 420 HQ Mode:
- Approx. 360 min with SBP-128B (128GB) memory card
- Approx. 180 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 90 min with SBS-32G1A ( 32 GB) memory card
SD DVCAM Mode:
- Approx. 440 min with SBP-128B (128GB) memory card
- Approx. 220 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 110 min with SBS-32G1A (32 GB) memory card
Recording/Playback Time (MPEG HD):
*2 HD HQ Mode:
- Approx. 400 min with SBP-128B (128GB) memory card
- Approx. 200 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 100 min with SBS-32G1A (32 GB) memory card
HD SP Mode:
- Approx. 560 min with SBS-64G1A (64 GB) memory card
- Approx. 280 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 140 min with SBS-32G1A (32 GB) memory card
SD DVCAM Mode:
- Approx. 520 min with SBP-128B (128GB) memory card
- Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
- Approx. 260 min with SBS-64G1A/SBP-64B (64 GB) memory card
Recording Frame Rate:
XAVC-I Mode: CBG, 112Mbps max, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p
XAVC-L50 mode:
VBR, 50Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p
XAVC-L35 mode:
VBR, 35Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
XAVC-L25 mode:
VBR, 25Mbps, MPEG-4 AVC/H.264
- 1920 x 1080/ 59.94i, 50i
HD 422 50 Mode:
MPEG-2 422P@HL, 50 MBps/ CBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
Recording Frame Rate:
HD 420 HQ Mode: MPEG-2 MP@HL, 35 MBps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
SD MPEG IMX Mode:
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
SD DVCAM Mode:
- 720 x 480/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
Recording Frame Rate:
HD 422 50 Mode: MPEG-2 422P@HL, 50 MBps/ CBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
HD 420 HQ Mode:
MPEG-2 MP@HL, 35 MBps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)
SD MPEG IMX Mode:
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
SD DVCAM Mode:
- 720 x 486/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
Recording Frame Rate:
HD HQ 1920 Mode: MPEG-2 MP@HL, 35 Mbps/ VBR
- 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HD HQ 1440 Mode:
MPEG-2 MP@HL, 35 Mbps/ VBR
- 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HD HQ 1280 Mode:
MPEG-2 MP@HL, 35 Mbps/ VBR
- 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98p
HD SP 1440 Mode:
MPEG-2 MP@H-14, 25 Mbps/ CBR
- 1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)
SD DVCAM Mode:
- 720 x 480/ 59.94i, 29.97PsF
- 720 x 576/ 50i, 25PsF
Lens
Lens Mount
Sony 1/2-inch type bayonet mount
Zoom Ratio
16x (optical), servo/manual (AF lens for PXW-X320)
Focal Length
f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
Iris
F1.9 to F16 and Close, Auto/Manual selectable
Focus
AF/MF/Full MF selectable
800 mm to ∞ (MACRO OFF)
50 mm to ∞ (MACRO ON, Wide)
782 mm to ∞ (MACRO ON, Tele)
Filter Diameter
M82 mm, pitch 0.75 mm (on lens)
Input/Output
Genlock Input
BNC (x1)
Timecode Input
BNC (x1)
Audio Input
XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
Mic Input
XLR-type 5-pin
SDI Output
BNC (x2), HD-SDI/SD-SDI selectable
Video Output
BNC (x1) HD-Y or Analog composite
Audio Output
XLR-type 5-pin
Timecode Output
BNC (x1)
Earphone Output
Stereo mini jack (x1)
Speaker Output
Monaural
DC Input
XLR-type 4-pin
DC Output
4-pin
Lens
12-pin
Remote
8-pin
Light
2-pin
i.LINK
IEEE 1394, 6-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output *3 , S400
USB
USB device B Type (x1), host A Type (x1)
HDMI
A type (x1)
Camera Section
Imager
3-chip 1/2-type "Exmor" Full HD CMOS
Effective Picture Elements
1920 (H) x 1080 (V)
Optical System
F1.6 prism system
Built-in Optical Filters
1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Shutter Speed (Time)
1/60 sec to 1/2,000 sec + ECS (Extended Clear Scan)
Shutter Speed (Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
Slow & Quick Motion Function
720p: Frame rate selectable from 1 fps to 60 fps
1080p:
Frame rate selectable from 1 fps to 30 fps
Sensitivity (2000 lx, 89.9% reflectance)
F11 (typical) (1920 x 1080/59.94i mode)
F12
(typical) (1920 x 1080/50i mode)
Minimum Illumination
0.04 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
White Balance
Preset (3200K), Memory A, Memory B/ATW
Gain Selection
-3, 0, 3, 6, 9, 12, 18, 24 dB
S/N Ratio
60 dB (Y) (typical)
Horizontal Resolution
1,000 TV lines or more (1920 x 1080i mode)
Viewfinder
3.5-inch *4 type color LCD monitor: 960 (H) x 540 (V), Quarter HD Size
Other Equipment
Built-in LCD Monitor
Black & White LCD (Audio level, TC, battery and media remaining capacity)
Built-in Speaker
1
