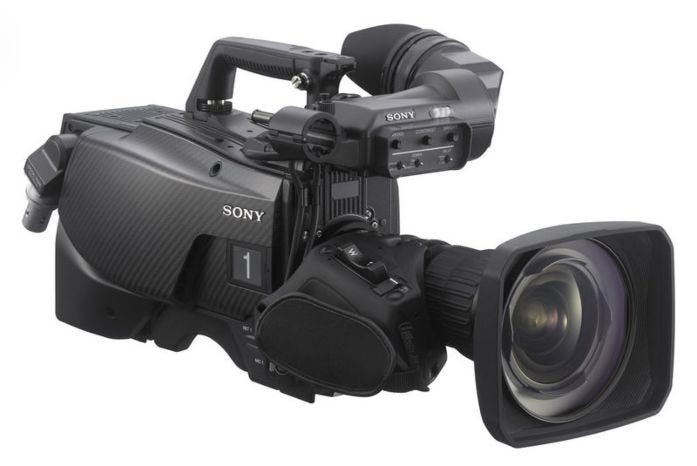

Sony HDC-2570 Multi-Format HD Camera

Sony is pleased to introduce the HDC-2570 HD portable 50P/60P digital triax camera system.

The HDC-2570 is a successor model of the HDC-2550 camera system. Incredible picture performance with extremely-low latency and features are realized by incorporating the 16-bit A/D, Digital-Signal-Processing (LSI) and the latest top-quality image sensor. A remarkable signal-to-noise ratio of 64 dB can be achieved when Noise Suppression (NS) is applied.

The current system such as HDC-2500 series camera and CCUs can be used with this new camera system , also existing accessories such as MSU-1000/1500, RCPs, VFs can be used with this new camera system. By replacing camera head triax adapter to Fiber adapter, the camera would have exactly same conditions as HDC-2500/2400.

Key Features:

• Triax Cable Studio Camera
• 2/3" Type CCD Sensor
• Camera Body Weighs Under Ten Pounds
• F10 Sensitivity
• Supports 1080p 50/60, 1080i & 720p
• 16-Bit A/D Converter
• Focus Assist Features
• Matrix Adjustments

• Triax Cable Studio Camera
• 2/3" Type CCD Sensor
• Camera Body Weighs Under Ten Pounds
• F10 Sensitivity
• Supports 1080p 50/60, 1080i & 720p
• 16-Bit A/D Converter
• Focus Assist Features
• Matrix Adjustments

• 1 x Sony HDC-2570 Multi-Format HD Camera
• 1 x Operation Manual
• 1 x Cable Clamp Belt Set
• 1 x Number Label

Camera

Built-in-Filters: Colour
temperature conversion filters:

• A: cross filter
• B: 3200K(clear)
• C: 4300K
• D: 6300K
• E: 8000K

ND filters:

• 1: clear
• 2: 1/4ND
• 3: 1/8ND
• 4: 1/16ND
• 5: 1/64ND

Effective Picture Elements: 1920 x 1080 (H x V)
Effective Pixels: 1920 x 1080 (H x V)
Gain Selection: -6,-3,0,+3,+6,+9,+12 (standard)
Horizontal Resolution: 1000tvl
Optical System: Spectral system F1.4 prism
S/N Ratio: Typical -60 dB/-64 dB (NS MAX)
Sensitivity: F10.0 (at 2000lx with 89.9% reflectivity)

General

Format: 1080i and 720p standard
Imager: 2/3-type Progressive Scan CCD
Mass: 4.5 kg (9 lb 15 oz) (unit only)
Operating Temperature: -20°C to +45°C (-4°F to +113°F)
Power Requirements: 240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.)
Storage Temperature: -20°C to +60°C (-4°F to +140°F)

Input Connectors

Audio Input:

• CH1, CH2 XLR 3-pin, female (1 each)
• AUDIO switch for MIC: –60 dBu (may be selected up to –20 dBu by menu or HDCU2000/2500 operations), balanced
• AUDIO switch for LINE: 0 dBu, balanced

DC IN: XLR 4-pin (x1), DC 10.5 to 17 V
Microphone Input: XLR 3-pin, female (x1)
Return Control: 6-pin (x1)

Input/Output Connectors

CCU: Triax connectorl (x1)
Crane: 12-pin (x1)
Intercom: INTERCOM 1( XLR 5-pin female), INTERCOM 2 (XLR 5-pin female)
Lens: 12-pin (x1)
Prompter: Prompter output / Genlock input BNC (x1), 1 Vp-p, 75 Ω
Remote: 8-pin (x1)
Tracker: 10-pin (x1)
Viewfinder: 20-pin (x1)

Inputs and Outputs

Test: Out BNC-type (1)
USB: Type A 4-pin (x1)

Output Connectors

DC OUT:

• 4-pin (1), DC 10.5 to 17 V, max. 0.5 A
• (However, this may be limited by the imposed load or inputs.)
• 2-pin (1), DC 10.5 to 17 V Max. 2.5 A
• (However, this may be limited by the imposed load or inputs.)

Headphone Output: Stereo minijack (x1)
Test OUT: BNC-type (x1)
