Sony FX6 Cinema Line Full-frame camera

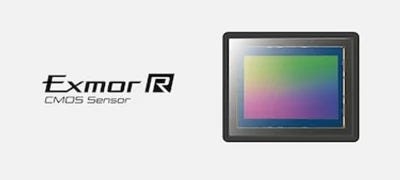

Image sensor with blazing fast readout speed

The back-illuminated full-frame Exmor RTM CMOS sensor, with 10.2 effective megapixels,boasts a blazingly fast data readout speed along with high sensitivity and wide dynamic range. An advanced colour filter array boosts colour reproduction accuracy, while focal plane phase-detection AF enables solid autofocus stability and excellent precision, all of which contribute to outstanding image quality.

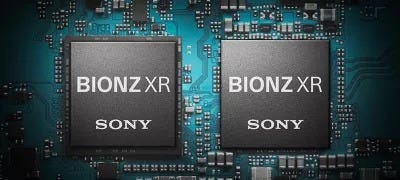

High performance image-processing engine

The BIONZ XRTM image-processing engine boasts class-leading speed performance, minimising latency while providing impressive real-time processing capabilities. The engine performs real-time processing of AF, image recognition and image quality adjustments, while also handling data transfer, user interface and other camera operations.

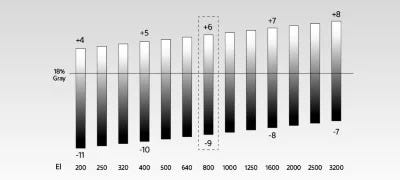

High sensitivity, wide dynamic range

The full-frame 10.2-megapixel configuration enables high sensitivity with low noise throughout the camera's sensitivity range by optimising the output signal from the sensor. Capture usable images in near total darkness with an impressive ISO expanded range up to 409600. The dynamic range is an impressively wide 15+ stops, for beautiful, true-to-life images without blown highlights. Together, the camera's high sensitivity and wide dynamic range expand your creative freedom during shoots.

4K High Frame Rate 120fps recording

Full-frame 4K (QFHD) recording at up to 120fps with autofocus is possible thanks to the high-speed readout capabilities of the image sensor and the powerful BIONZ XR processor. Even at high frame rates, ultra-detailed 4K (QFHD) images are captured using full-pixel readout without binning, for clear post-produced slow motion (up to 5x slower than real time). The high-precision AF even allows beautiful full-frame bokeh to be achieved during slow motion shooting, for impressive creative scope.

Acclaimed cinematic colour with S-Cinetone™

The inclusion of Sony’s acclaimed S-Cinetone look, inherited from the development of the FX9, allows beautiful images to be achieved directly in-camera. S-Cinetone is optimised for natural skin tones and mid-range colours, with gentle highlight roll-off, for impressive subject depiction and powerful camera-matching and post-production possibilities.

Preset and User 3D LUT compatibility with Scene File

The Scene File function provides powerful colour interpretation right in the camera, with a range of presets and custom User 3D LUT imports to fit your production or style requirements. Four preset scene file types are included for SDR shooting (S-Cinetone, Standard, Still, ITU709) and two for HDR (HLG Live, HLG Natural). A further 16 slots support User 3D LUT import to achieve custom looks or for specific monitoring or colour-space transforms.

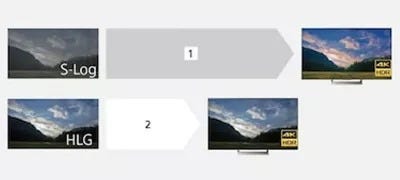

10-bit HLG picture profile

An HLG (Hybrid Log-Gamma) HDR picture profile, complete with the wide-gamut BT.2020 colour space, can be used for direct HDR (HLG) playback on compatible TVs. The result is true-to-life imagery close to what the naked eye can see, with detailed shadows and highlights, less blackout and less whiteout, all without the need for colour grading. In particular, 10-bit recordings reproduce a level of fine gradation and detail for extraordinary realism.[1] High flexibility to fine-tune images as desired (colour grading required)[2] Instant high-quality image (colour grading not required)

S-Log3 for better reproduction of gradations

S-Log3 gamma curves are available, with S-Log3 designed for better reproduction of gradations from shadows to the mid-grey range (18 grey), enabling a dynamic range of up to 15+ stops. Two colour gamut settings (S-Gamut3, and S-Gamut3.Cine) make it easier to match the colours of footage shot with Sony's Cinema Line Cameras. Because the colours match, colour grading is easier in post-production editing, making it more convenient when used along with other pro cameras.

Recording movies with 10-bit depth and 4:2:2 colour sampling

The FX6 is capable of 4K internal recording, encoding 10-bit depth and 4:2:2 colour sampling with All-Intra compression. This makes it possible to push your colour grades further, stretching video out for ultimate HDR realism while still retaining natural gradation, for true editing freedom.

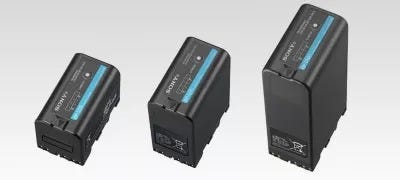

A choice of battery types for different applications

The FX6 is compatible with BP-U series battery packs. The BP-U35 is compact and lightweight, the BP-U70 offers extended operating times, while the BP-U100 has even higher capacity. Choose the right battery pack to match the shoot, balancing continuous recording time against overall system weight and portability.

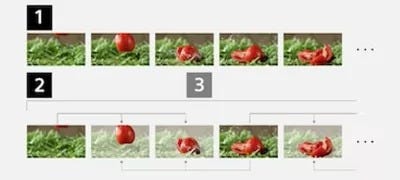

All-Intra internal recording

In addition to Long-GOP inter-frame compression, internal intra-frame (All-Intra) recording is supported. XAVC 4K Intra recording compresses each frame independently at a high bitrate, up to 600Mbps, so is ideal for capturing complex motion, and allowing maximum flexibility and playback performance during post-production.[1] All-Intra (All-I) [2] Long-GOP [3] Group of Pictures

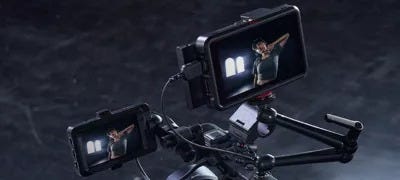

16-bit RAW data output

Facilitating improved image quality and more flexible and efficient editing in post production, the camera supports 16-bit RAW data output to an external recorder via SDI. RAW video output is 4096x2160 or 3840x2160 data from the image sensor with a choice of 120 / 100 / 59.94 / 50 / 29.97 / 25 / 24 / 23.98 frame rates.

Proxy recording for more efficient editing workflow

When shooting movies, low bit-rate HD proxy files can be recorded simultaneously with higher bit-rate formats such as XAVC 4K, and these smaller proxy files can then be used for editing and previewing prior to final production delivery. This reduces computer load and allows faster and more efficient workflows. Proxy files are captured in 8-bit XAVC-L (1980x1080 9Mbps MP4 wrapper).

Fast Hybrid AF for dependable focus during movie shooting

Fast Hybrid AF combines focal plane phase-detection AF with contrast-detection AF. This results in highly precise, smooth tracking of fast-moving subjects even over a wide range with a shallow depth of field. AF Transition Speed and AF Subject Shift Sensitivity parameters allow more flexible focus control, as demanded by professional users. Both allow preset settings to be recalled during recording by using a customisable button.

Real-time Eye AF and Face Detection AF

For reliable focusing on people, especially in unpredictable shooting environments such as news gathering, event and documentary shooting, powerful Real-time Eye AF and Face Detection AF are built in. The real-time processing capability of the BIONZ XR image processing engine automatically maintains accurate eye focus on faces even in profile, looking up or down, or partially obscured - allowing you to concentrate fully on shot composition.

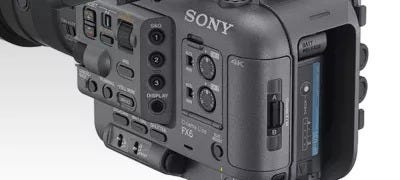

Reliable durability and weather resistance in tough situations

In response to pro opinions, enhanced sealing is applied to the media compartment lid, terminal cover and all joints in the chassis. Routes to dust and moisture entry have been re-examined to ensure reliable operation in challenging environments.

Lens-ring AF subject selection

When the AF Assist function is ON, rotating the focus ring instantly switches from autofocus to manual focus so that a different subject can be quickly selected. The face selection algorithm has also been improved so that the focus ring can be used to quickly and intuitively select specific individuals from within a group when shooting with Real-time Eye AF or Face Detection. Autofocus operation resumes as soon as the user stops rotating the lens focus ring, and the last subject selected by the focus ring is automatically tracked.

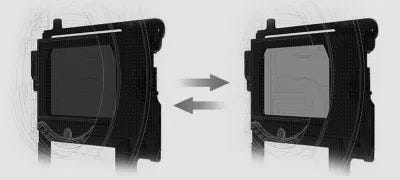

Sony’s powerful electronic Variable ND Filter built in

The revolutionary electronic Variable ND Filter controls the opacity of the neutral filter seamlessly from 1/4 to 1/128ND to achieve unmatched creative control and fluidity. Unique to Sony, it can manually or automatically adjust exposure without affecting the depth of field or shutter angle, letting you achieve perfect exposure even moving between different environments such as from indoors to out.

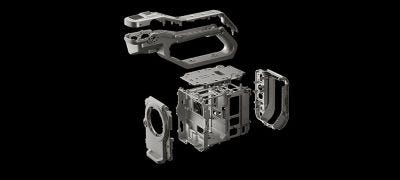

Magnesium alloy body achieves high durability with light weight

To perform reliably in challenging environments the main chassis, as well as top, front, and rear covers and the handle are constructed from lightweight magnesium alloy. The magnesium alloy main frame achieves high strength and durability with minimum weight in order to maximise mobility. The rigidity of the mount area is also boosted by the provision of six screws for stable attachment of heavy lenses.

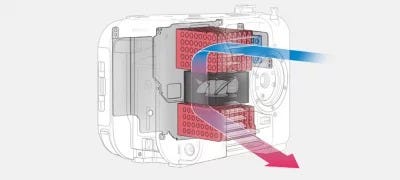

Innovative heat dissipation to prevent thermal shut down

To ensure dependable full-frame recording in demanding environments and at high resolutions and frame rates, the FX6 features an innovative heat dissipation structure. A complete redesign of the chassis structure assessed the placement of internal heatsinks and the entire airflow structure, from louvers to circuit board layout. When required, a silent fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.

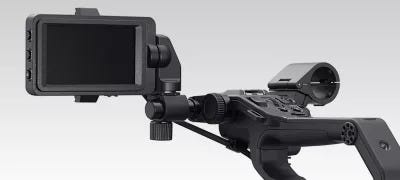

High-definition 2.76 million-dot flexible LCD touch panel

The 3.5-size LCD panel (1280 x 720 pixels) is mounted on an extended pedestal, and adjustable to a wide range of angles for easy video monitoring regardless of camera rigging and shooting angle. Mounting points are provided at three places on the handle and two on the body. With touch panel support, it also provides intuitive control for many camera settings, even where camera body controls are less accessible.

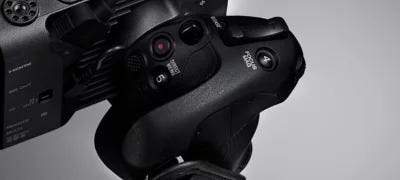

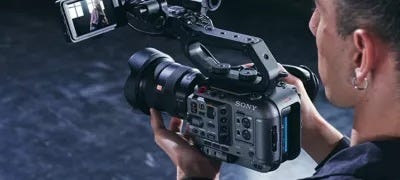

Smart grip

The FX6’s ergonomic Smart Grip is designed for powerful and comfortable camera control even during prolonged or dynamic shooting situations. Three customisable buttons, plus essential zoom and start/stop control and a custom dial suitable for Iris or Variable ND Filter control, are all positioned in easy grip reach. The freely-adjustable telescoping handle and grip angle are set with a single button, for effortless position changes without slowing production.

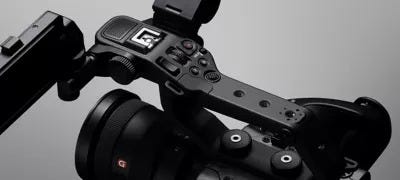

Smart handle

Attachable to the top face of the camera, the smart handle allows stable camerawork and operation when the smart grip is difficult to hold, for example in low-angle shooting. It’s also equipped with XLR terminals, a mic holder and a digital Multi Interface (MI) Shoe, allowing use with a variety of existing pro accessories. Two assignable buttons, a multi-selector button and a handle assignable dial have also been added for improved operability. Compatible with 1/4-20 UNC screws (length of 6 mm or less) for accessory attachment are provided at seven locations on the handle and 10 locations on the body for increased freedom. Thoughtful touches for adaptable workflows are also considered, such as including storage for the handle protection cap in the handle itself – ready to seal the body connectors if the handle is removed for rigging.

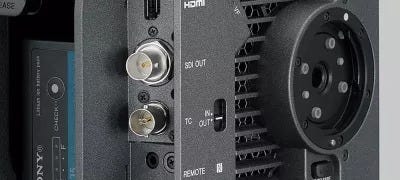

Professional connectivity

The FX6 features a range of professional interfaces including independent 12G-SDI (supports 3G/6G-SDI) suitable for external 16-bit RAW recording as well as HDMI output for program monitoring. Timecode (TC IN / TC OUT) connectors allow multi-camera sync, and SuperSpeed USB-C 5Gbps (USB 3.2) allows shooting data to be uploaded to a PC at high speed.

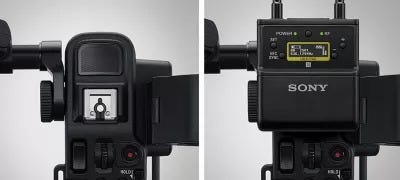

Dual XLR inputs and enhanced audio capability

The handle of the FX6 carries two independent audio inputs (easy-access XLR connectors) to connect external professional microphones. Additionally, a UWP series wireless microphone may be connected via the MI Shoe.

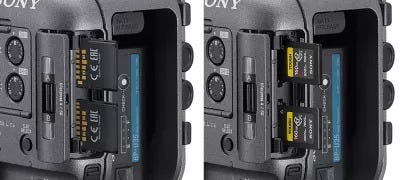

Two CFexpress Type A-compatible media slots

The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes . CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bit rates. They are capable of quickly clearing camera buffers even when high volumes of movie data are being generated.

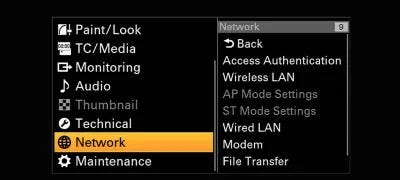

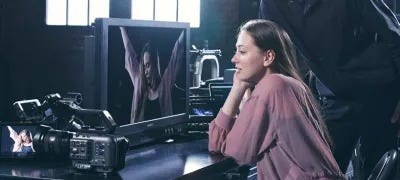

Data communications to support on-site workflow

Network communications features support FTP transfer for movie files as well as remote shooting capability, to facilitate professional workflows during shoots. Wireless 5GHz / 2.4GHz LAN connections are supported, and wired connectivity to 1000BASE-T Ethernet networks is available via a USB-to-Ethernet adaptor cable connected to the camera's USB Type-C® port supporting SuperSpeed USB 5Gbps (USB 3.2).

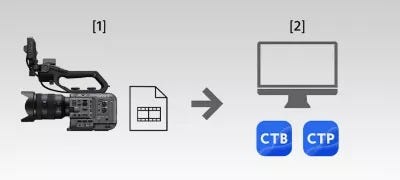

Metadata to facilitate editing with Catalyst

Sony’s Catalyst Browse and Prepare software are ideal production partners for the FX6. The FX6 records three types of metadata: image stabilisation, clip flag, and camera rotation. These can be useful when previewing and preparing to edit in Sony’s free Catalyst Browse or cost-effective Catalyst Prepare software.[1] Shoot [2] Edit

Information on security updates

Where a Sony product contains software that is subject to updates, Sony may issue security updates and updates necessary for the proper functioning of the device.

Description

FX6 Cinema Line Camera

Up to 4K 120p movie recording, Fast Hybrid AF, variable ND filter, 15+ stop wide dynamic range, modular design

Discover the Sony FX6, a full-frame cinema line camera that will provide cinematic expression to professional filmmakers and freelancers of tomorrow. With a light and modular body, the FX6 seamlessly adapts to your style of shooting without compromising on video quality. A 4k 120p camera, recording outstanding 4K full frame quality at up to 120p with minimal rolling shutter, excellent low light capabilities (up to 409,800 ISO) and a wide dynamic range thanks to its 10.2 MP Exmor R CMOS sensor and new Bionz XR processor.

It allows for more shooting expressions with the inclusion of S-LOG3 and S-CINETONE picture profiles defining a new era of Cinema line cameras from Sony. The PXW-FX6 also provides more freedom for shooting videos with a fast and accurate Autofocus technology including Real-time Eye Autofocus, Real-time touch tracking and customisable autofocus tracking sensitivity.

It also includes a unique Variable ND filter to maintain a cinematic look and changing lighting environments for more creative expressions. On top of its small form factor, the FX6 camera includes a detachable smart handle and high-resolution LCD screen, heat dissipation system for long shooting hours and long battery life which makes it personable and stress-free for professional users.

The Sony Cinema line FX6 is designed for the future of cinematic expressions.

If you're looking for a great lens to pair with the Sony FX6, take a look at the Sony FE C 16-35 mm T3.1 G E Mount Lens.

The Sony Cinematic Look - Full-frame 4K recording at up to 120p with S-CINETONE picture profile.
Outstanding 4K Expression - 4K 120p, 10-bit 4:2:2 recording, up to 15+ stops dynamic range, Variable ND filter, LUTs input
Fast, Precise And Customisable Autofocus System - Fast Hybrid AutoFocus, Real-time Eye AF, Touch tracking Autofocus, Customisable Autofocus Sensitivity
Designed For Professional Workflow - 890g compact and light weight modular body gives you outstanding mobility, reliability and expandability
High Connectivity - 16bit RAW output, 12G SDI, HDMI, USB-C, WiFi, LANC, 2x XLR, Mi-Shoe, E mount

Recommended Accessories

Key Features

Full-frame 4K recording at up to 120p
15+ stop wide dynamic range
Variable ND filter, LUTs input & S-Cinetone
Fast Hybrid AutoFocus System
Netflix Approved
Outstanding mobility, reliability and expandability

In the Box

Sony FX6 Cinema Line Camera x 1
Handle x 1
LCD monitor x 1
Grip remote control x 1
Battery charger x 1
Battery pack x 1
AC Adaptor x 1
Power cord x 1
USB-C cable x 1
LCD hood x 1
Cold shoe kit x 1
Lens mount cap x 1
Handle connector cap x 1
Before Using This Unit x 1
Warranty booklet x

Specifications

Mass	Approx 890g (1lb15oz)(body only) Approx. 2.59kg(5lb11oz) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder)
Dimensions (W x H x D)	114 x 116 x 153 mm(4 1/2 x 4 5/8 x 6 1/8 inch) (body without protrusions)
Power Requirements	DC 19.5V
Power Consumption	Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON,not using external device)
Operating Temperature	0°C to 40°C 32°F to 104°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Battery Operating Time	Approx. 105min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device) Approx. 215min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)
Recording Format (Video)	[XAVC Intra] XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264 XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264 XAVC-I HD 25p mode:CBG, MAX bit rate 112Mbps, MPEG-4 AVC/H.264 XAVC-I HD 23.98p mode:CBG, MAX bit rate 89Mbps, MPEG-4 AVC/H.264 [XAVC Long] XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC
Recording Format (Audio)	LPCM 24 bits, 48 kHz, 4 channels
Recording Frame Rate	[XAVC Intra] XAVC-I DCI4K mode:4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P XAVC-I QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-I HD mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P [XAVC Long] XAVC-L QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 50 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 35 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
Recording/Playback Time	" XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes" " XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes" " XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes" " XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes" " XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes" " XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes" " XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes" " XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes" " XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes" " XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes" " XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB) Approx. 91 minutes" [XAVC Long] "XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB) Approx. 86 minutes" "XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB) Approx. 57 minutes" "XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB) Approx. 155 minutes" "XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB) Approx. 210 minutes"
Recording Format (Proxy Audio)	XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video)	"XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920x1080, 9Mbps"
Lens Mount	E-Mount
Imaging Device (Type)	35 mm full-frame, single-chip CMOS image sensor
Number of pixels (Total)	Approx. 12.9 megapixels
Number of Pixels (Effective)	Approx. 10.2 megapixels
Built-in Optical Filters	Clear, linear variable ND(1/4ND to 1/128ND)
ISO Sensitivity	ISO 800/12800 (Cine EI mode, D55 Light source)
Shutter Speed	64F to 1/8000 sec
Slow and Quick Motion Function	XAVC-I 4096x2160 1 to 60 frames (59.94/50/29.97/25/24/23.98) XAVC-I/L 3840 x 2160 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98) 1920 x 1080 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98)
White Balance	Preset, Memory A, Memory B (2000K-15000K)/ATW
Gain	-3 to 30dB (every 1dB), AGC
Gamma Curve	SDR Mode ：S-Cinetone, Standard, Still, ITU709 HDR mode : HLG_Live, HLG_Natural
Latitude	15+ stop
Audio Input	XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -30 to -80 dBu
SDI Output	SDI OUT:BNC, 12G-SDI, 6G-SDI, 3G-SDI(Level A/B)
USB	USB Type-C(x1), Multi/Micro-B (x1)
Headphone Output	Stereo mini jack (x1) -16 dBu 16 Ω
Speaker Output	Monaural
DC Input	DC jack
Remote	Stereo mini-minijack (Φ2.5 mm)
HDMI Output	Type A (x1)
TC Input/TC Output	BNC, TC IN/OUT Switchable
Grip	Mini jack (Φ3.5 mm/4pin)
LCD	8.8 cm (3.5 type) Approx. 2.76M dots
Built-In Microphone	Omni-directional monoral electret condenser microphone (body) (x1) Stereo electret condenser microphone (handle) (x1)
Type	CFexpress Type A / SD card (x2) Slot B can be used for saving configuration data.
Supported Format	IEEE 802.11 a/b/g/n/ac
Frequency BAnd	2.4 GHz bandwidth 5.2/5.3/5.6/5.8 GHz bandwidth
Security	WEP/WPA-PSK/WPA2-PSK
NFC	NFC Forum Type 3 Tag compliant
Supplied Accessories	Handle x 1 LCD monitor x 1 Grip remote control x 1 Battery charger x 1 Battery pack x 1 AC Adaptor x 1 Power cord x 1 USB-C cable x 1 LCD hood x 1 Cold shoe kit x 1 Lens mount cap x 1 Handle connector cap x 1 Before Using This Unit x 1 Warranty booklet x 1
