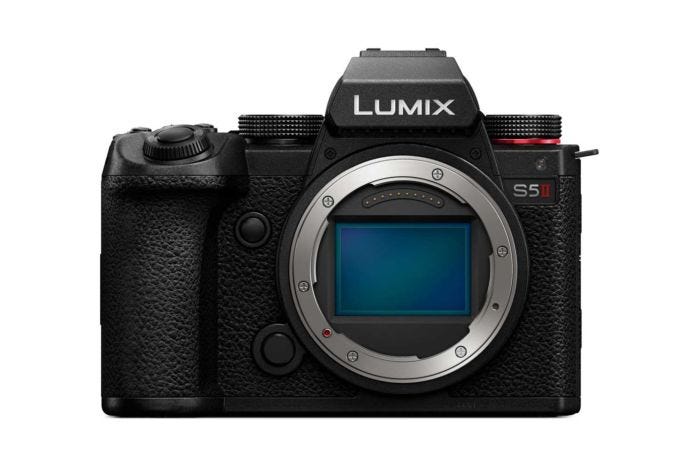

Panasonic LUMIX S5II Mirrorless Camera

LUMIX S5II Mirrorless Camera

The exciting Panasonic LUMIX S5II mirrorless camera comes with a new 24-megapixel sensor. The Lumix S5 II is the first LUMIX camera to offer Hybrid Phase Detection Auto-Focus (PDAF). Due to its new and improved features, the Lumix S5 II is also capable of delivering truly astounding photo and video performance.

An updated line-up of LUMIX S cameras

If you're looking for the other recently announced Lumix camera, visit the LUMIX S5IIX camera. We also have different bundles available, such as the Lumix S5II with S-R2060E and S-S50E Lens and the Lumix S5II with S-R2060E Lens.

Setting new standards in LUMIX AF performance

With a new imaging engine developed within the L2 Technology partnershipformed by LEICA and LUMIX, and a new 24-megapixel sensor, the LUMIX S5II and S5IIX are the first LUMIX cameras to offer Hybrid Phase Detection Auto-Focus (PDAF).

The cameras use a new Phase Hybrid AF system combining PDAF with Contrast Detect AF. Fast and dependable and providing 779-area metering,the new system is able to detect target subjects in difficult conditions such aslow light and backlighting and, once locked on, will remain tracking them evenwith other moving objects in the frame.

Continuous AF during zooming*1 and AF micro adjustment are also available.

*1 Conventional zoom lenses require firmware update to use Continuous AF during zooming.

A wealth of video functions and recording options
The new engine gives the LUMIX S5IIX and S5II video recording capabilities including internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps, while a new low-profile heat management system allows for unlimited recording times*1 without increasing the size of the camera body.The cameras also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

The LUMIX S5IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. Additionally, the S5iiX can support Apple ProRes RAW video outputto Atomos. It also supports wired*2 and wireless IP streaming and USB tethering.

A range of picture profiles including 14+ stop V-Log/V-Gamut are available on both models, as well as a new REAL TIME LUT function enabling colour grading LUTs to be uploaded to an SD card and directly applied in-camera rather than in post-production.

In response to requests from professional users, functions such as Waveform Monitor, Vector Scope and Zebra Pattern have been added, as well as features such as System Frequency (24.00Hz) and Synchro Scan.

Clear and realistic 48kHz/24-bit audio can be recorded by the built-in or an external microphone, while high-resolution 96kHz/24-bit recording is possible with external and XLR microphones.

*1 When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [ThermalManagement] is set to [STANDARD].
*2 Requires USB-LAN adapter, sold separately.

Professional photo and video performance
Thanks to host of new and improved features, the LUMIX S5IIX and S5II areable to deliver truly astounding photo and video performance, including high-speed burst shooting at up to 9fps with mechanical shutter and 30fps with electronic shutter (capable of capturing up to 300 images), a 96-megapixel High ResolutionMode (JPEG/RAW) and Dual Native ISO sensitivity, which minimises noise and allows a maximum ISO of 51200 (204800 when Extended).

The LUMIX S5IIX and S5II also boast an upgraded image stabilisation system to greatly enhance handheld shooting in a wide rangeof conditions and situations.The new Active I.S. provides highly stable video recording by optimising horizontal, vertical and rotational correction. Compensating as much as 200%*2 compared to conventional stabilisation, Active I.S. is especially effective in traditionally challenging conditions for handheld shooting, such as using telephoto lenses or filming while walking.

*1 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 isused. Firmware must be updated to the latest version.
*2Compared with LUMIX S5. Focal length 20mm, when using S-R2060.

Superior handling and options for ‘one-person crew’ operation
The LUMIX S5IIX and S5II by Panasonic offer a highly refined shooting experience, allowing creators to achieve excellent results with minimal workflow thanks to features such as AWB Lock, MF Assist (available for both video*1 and photo shooting) and a new Live Crop function, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images out afterwards.

Usability is further enhanced with the new easy-to-operate 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

*1 Up to 60p. Does not work in Variable Frame Rate mode.

Class-leading reliability and connectivity
The cameras are built to robust standards for in-field use, with magnesiumalloy die-cast front and rear frames and asplash-and dust-resistant*1 construction.

Connectivity has been improved over the LUMIX S5, with the LUMIX S5IIX and S5II each featuring a full-size HDMI Type A terminal and high-speed USB 3.2 Gen 2, plus a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, with Wi-Fi 5GHz*2 joining 2.4GHz to provide fast, stable communication with smartphones and tablets.

Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200mAh high-capacity battery can be recharged via AC or USB.

*1Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
*2 5GHz Wi-Fi is not available in some countries.
