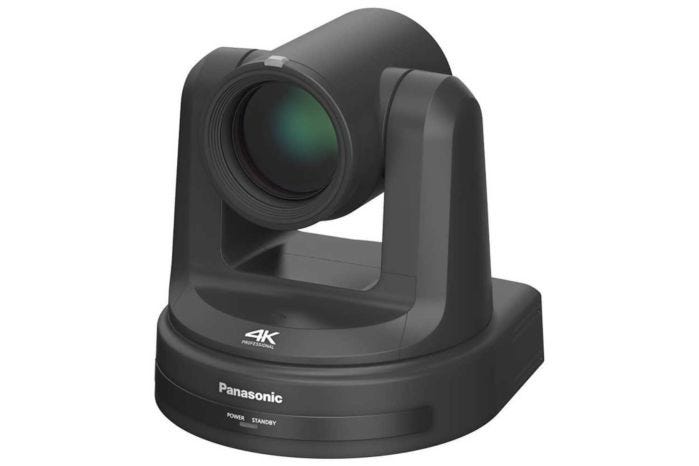

Panasonic AW-UE20 4K PTZ Camera-Black
Availability:In stock
Cat No.
48536
SKU
AW-UE20KE
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,845.60
£1,538.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Panasonic AW-UE20 4K PTZ Camera-Black
Entry model suitable for use in small meeting rooms and small classrooms
The Panasonic AW-UE20 features a new 1/2.8-type 4K MOS sensor that produces stunning UHD video. This capable 4K PTZ camera supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature. PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.
High-quality video streaming for more comfortable online communication
- 4K resolution, wide angle and high-magnification zoom maintain “the ambience of hall” intact in streaming videos
- Auto Tracing Software accurately follows and captures the speaker
Excellent system flexibility to achieve smart wiring and smooth operation
- Easy installation/setup and compact system configuration
- Single PC or controller can manage and control multiple cameras
- Use as a USB camera
- Direct upload of videos to video livestreaming services
Compact size and excellent functionality that do not disturb the existing video streaming environment
- Compact design blends in with the surroundings. Light weight and small size for added installation flexibility
- Linkable with existing system
- 4K PTZ Camera with simultaneous 3G-SDI, HDMI & USB output
- Compact size & wide angle
- Simultaneous 3G-SDI, HDMI & USB output
- High-Quality Video Streaming for More Comfortable Online Communication
- Excellent system flexibility to achieve smart wiring and smooth operation
| Comprehensive | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) | |
| PoE+ | IEEE802.3at compliant: DC42.5 to 57 V | |
| Current Consumption | 1.3 A (Supplied AC adapter), 0.4 A (PoE+ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32℉ to 104℉) | |
| Allowable Humidity Ranges | 20 ％ to 90 ％ (no condensation) | |
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) | |
| Mass | Approx. 1.9 kg (4.19lbs) (excluding ceiling mounting bracket) | |
| Dimensions (W x H x D) | 165.1 mm x 176.2 mm x 176.1mm (6.5 inches x 6.94 inches x 6.93 inches) (Excluding protrusions, cable cover, mounting bracket) |
|
| Finish | Black | |
| Compatible controllers | AW-RP150GJ, AW-RP60GJ, AW-RM50AG | |
| Camera Part | ||
| Image Sensors | 1/2.8-type 4K MOS x 1 | |
| Effective Pixels | Approx. 8,460,000 pixels | |
| Lens | Motorized Optical 12x zoom, F1.6 to F2.8 [f=3.9 mm to 46.8 mm; 35 mm equivalent: 26.4 mm to 316.4 mm] |
|
| Zoom | • Optical zoom: 12x • i.Zoom UHD 1.33x, FHD 1.33x • Digital extender zoom: 1.4x , 2x • Max Digital Zoom: 2x, 3x, 4x |
|
| Conversion Lens | Not supported | |
| Angle of Viwer Range | Horizontal angle of view: 71.0° (wide) to 6.0° (tele) Vertical angle of view: 43.0° (wide) to 3.0° (tele) Diagonal angle of view: 79.0° (wide) to 7.0° (tele) |
|
| Minimum Illumination | 0.4 lx (50IRE, Gain=42dB, Shutter Speed 1/30, IRIS=F1.6) | |
| Horizontal Resolution | UHD: 1,400 Typ (Center area) FHD: 1,000 Typ (Center area) |
|
| Gain Selection | Auto, 0dB to 42dB*1 | |
| Frame Mix | Auto, 0dB, 6dB, 12dB, 18dB, 24dB | |
| Electronic Shutter Speed | 50 Hz | 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 |
| 59.94 Hz/60Hz | 1/1, 1/2, 1/3, 1/7, 1/15, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000,1/4000, 1/8000, 1/16000 | |
| Synchro Scan | 59.94p | 60.0 Hz to 660.0 Hz |
| 29.97p | 60.0 Hz to 660.0 Hz | |
| 50p | 50.0 Hz to 570.1Hz | |
| 25p | 50.0 Hz to 570.1Hz | |
| White Blance | ATW, AWB A, AWB B, 3200K, 5600K | |
| Chroma Amount Variability | 11 steps (0 to 10) | |
| Output Format (HDMI) | [60Hz] 2160/30p, 1080/60p, 1080/60i, 1080/30p, 720/60p [59.94Hz] 2160/29.97p, 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p [50Hz] 2160/25p, 1080/50p, 1080/50i, 1080/25p, 720/50p |
|
| Output Format (SDI) | [60Hz] 1080/60p, 1080/60i, 1080/30p, 720/60p [59.94Hz] 1080/59.94p, 1080/59.94i, 1080/29.97p, 720/59.94p [50Hz] 1080/50p, 1080/50i, 1080/25p, 720/50p |
|
| Input | ||
| Input Connector | DC 12 V IN | |
| Mic/Line input | MIC/LINE input compatible (SDI/HDMI/IP/USB) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Imbalance • During MIC input Input level: –40 dBV（0 dB=1 V/Pa、1 kHz） Compatible Plug-in power, Supply voltage: 2.5 V ± 0.5 V • During LINE input Input level: Approx. –10 dBV • Variable input volume range: –36 dB to +12 dB (3 dB step) • Embedded audio output level: –12 dBFS • Sampling frequency: 48 kHz • Number of quantization bits: 16 bits |
|
| Output | ||
| Video Output | HDMI | HDMI Connector 4:4:4/8 bit • HDCP is not supported. • Viera Link is not supported. |
| 3G SDI OUT | 75Ω BNC • Level-A supported*2 |
|
| Input/Output | ||
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) |
| USB | Type-C connector | |
| RS-422 | CONTROL IN RS422A (RJ-45) | |
| RS-232C | Mini DIN 8-pin (IN)/Mini DIN 8-pin (OUT) | |
| Pan-tilt Head Unit | ||
| Camera /Pan-tilt Head Control | IP connecting cable | • If you have a PoE+ ethernet hub LAN cable*3(category 5e or above, straight cable) Max 100 m (328 ft) • If you don't have a PoE+ ethernet hub LAN cable*3 |
| AW protocol connecting cable | • LAN cable*3(category 5e or above, straight cable) Max 1000 m (3280 ft) | |
| Standard protocol connecting cable | Mini Din 8-pin cable (male) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*4 | |
| Pan/tilt Operation Speed | Speed range: Manual: 0.1°/s to 100°/s Preset: 0.1°/s to 200°/s (Tilt: to 140°/s) |
|
| Panning Range | ±170° | |
| Tilting range | -30° to 90°*5 | |
| Quietness | NC40 or less (60 deg/sec or less) NC55 or less (100 eg/sec or less) |
|
| Supported Operating Systems and Web Browsers | Windows*6 | Windows 10 Windows® Internet Explorer® 11 (32 bit / 64 bit) Microsoft Edge Google Chrome |
| Mac*6 | Mac OS v10.15 Mac OS v10.14 Mac OS v10.13 Mac OS v10.12 Safari Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP) | |
| Image resolution | MJPEG | 1280x720, 640x360 |
| H.264/H.265 | 3840x2160, 1920x1080, 1280x720, 640x360 | |
| Image Transmission Setting (frame rate) | MJPEG | Max 30fps (25fps)*7 |
| H.264 | [60Hz/59.94Hz] 4K: 5fps/15fps/30fps FHD: 5fps/15fps/30fps/60fps [50Hz] 4K: 5fps/10fps/25fps FHD: 5fps/10fps/25fps/50fps |
|
| H.265 | [60Hz/59.94Hz] 4K: 5fps/15fps/30fps FHD: 5fps/15fps/30fps/60fps [50Hz] 4K: 5fps/10fps/25fps FHD: 5fps/10fps/25fps/50fps |
|
| Image Transmission Setting (bit rate) | MJPEG | Unspeficied*7 |
| H.264 | RTSP/RTMP:1024kbps to 32768kbps RTMPS:1024kbps to 8192kbps |
|
| H.265 | 1024kbps to 32768kbps | |
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch | |
| Supported Protocols | IPv6 | TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DNS, ICMPv6, NTP |
| IPv4 | TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DHCP, DNS, ICMP, ARP, RTMP, RTMPS, NTP | |
| USB web camera | ||
| Image output | USB Video Class Ver1.1 | |
| Image output type | YUV (Uncompressed), MJPEG, H.264 | |
| Image resolution | YUV | 640x360 |
| MJPEG | 3840x2160, 1920x1080, 1280x720, 640x360 | |
| H.264 | 3840x2160, 1920x1080, 1280x720, 640x360 | |
| Image Transmission Setting (frame rate) | YUV | [60Hz/59.94Hz]:15fps [50Hz]:10fps |
| MJPEG | [60Hz/59.94Hz] 4K: 5fps FHD: 5fps, 15fps, 30fps [50Hz] 4K: 5fps FHD: 5fps 10fps, 25fps |
|
| H.264 | [60Hz/59.94Hz] 4K: 5fps, 15fps, 30fps FHD: 5fps, 15fps, 30fps, 60fps [50Hz] 4K: 5fps, 10fps, 25fps FHD: 5fps, 10fps, 25fps, 50fps |
|
| Audio Output | USB Audio Class Ver1.0 | |
| Audio Compression Type | Linear PCM, 48KHz/16bit/2ch | |
*1:Can be set in 3 dB step increments.
*2:Embedded audio is not supported.
*3:STP (Shielded Twisted Pair) is recommended.
*4:To ensure safety, the unit must be secured using the mount bracket supplied.
*5:The main unit may appear in the video depending on the pan/tilt position.
*6:Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.
*7:JPEG and H.264, H.265 simultaneous operation is possible.
