Panasonic AW-UE100K 60p/50p PTZ Camera

AW-UE100K 60p/50p PTZ Camera

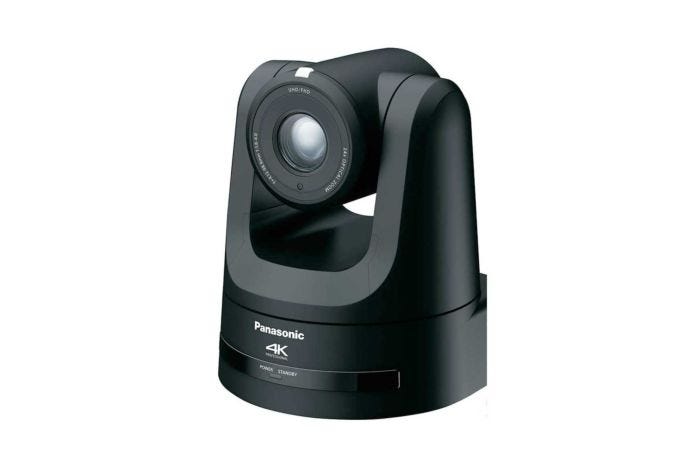

The Panasonic AW-UE100K is the first 60p/50p*1 PTZ Camera supporting NDI*2 and SRT*3 in the world. The AW-UE100 features a 1/2.5-type 4K MOS sensor to produce stunning UHD 4K 60p/50p*1 video and offers a wide variety of interfaces including 12G-SDI, 3G-SDI, HDMI and IP. Suitable for capturing images in tight spaces to large venues, the UE100 has exceptional capabilities.

4K 60p/50p^*1 PTZ Camera supporting NDI^*2 and SRT^*3
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p*1 video, and SRT*3 for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

Supports a wide variety of IP transmission protocols, including NDI*2, NDI|HX*5, and SRT*3
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT*3 is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS*6 provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.

Supports 4K 60p/50p*1 shooting and 12G-SDI output
Supports 4K 60p/50p*1 video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.

Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

Supports FreeD*6 for building AR/VR*7 systems
FreeD*6 command output enables connection with AR/VR*7 systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.

In case you're looking for the white model version, please visit the Panasonic AW-UE100W 60p/50p PTZ Camera.

*1 Actual output format is UHD (3840 x 2160) 59.94p/50p.
*2 NDI: High bandwidth NDI
*3 SRT: Secure Reliable Transport
*5 NDI|HX: High efficiency low bandwidth NDI |HX.
*6 FreeD is a protocol widely used in virtual studio systems for transmitting camera tracking information
*7 AR: Augmented Reality, VR: Virtual Reality

• 4K 60p/50p^*1 PTZ camera supporting NDI and SRT (Black)
• Supports a wide variety of IP transmission protocols, including NDI^*2, NDI|HX^*5, and SRT^*3
• Supports 4K 60p/50p^*1 shooting and 12G-SDI output
• Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
• Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm) i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
• Supports FreeD^*6 for building AR/VR^*7 systems
• Adopts new mechanical pan/tilt for improved
