Marshall CV346 Compact Broadcast Camera with CS Lens Mount
Availability:In stock
Cat No.
46453
SKU
CV346
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£434.28
£361.90
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

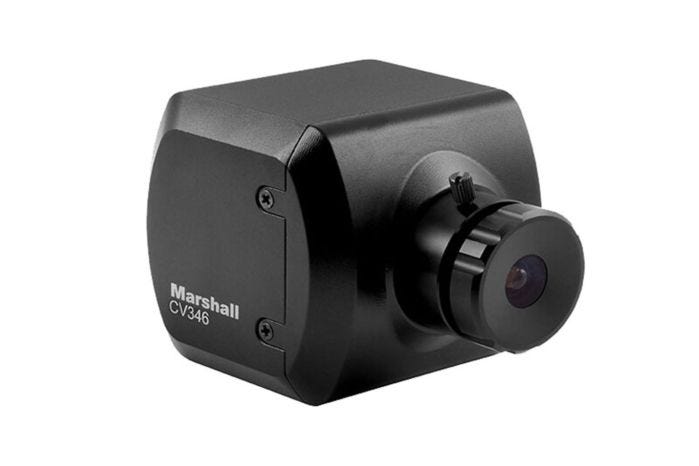

Marshall CV346 Compact Broadcast Camera with CS Lens Mount
The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.
The CV346 utilizes a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI & 3G/HDSDI outputs). The CV346's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.
The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable.
A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
Key Features:
- HDMI & 3G/HDSDI output
- 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
- Interchangeable CS/C lens mount (sold separately)
- Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
- Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
- Remote adjust through RS485 (Visca) or OSD menu joystick
- Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
- Includes 12V power supply in box
- HDMI & 3G/HDSDI output
- 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
- Interchangeable CS/C lens mount (sold separately)
- Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
- Marshall Electronics CV346 Compact HD Camera (3G/HD-SDI, HDMI)
- Camera Breakout Cable
- C-Mount Lens Adapter
- 12 VDC Power Supply
| Sensor Type | 1/2.86″ 2.5 Megapixel |
|---|---|
| Supported Frame Rates | 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Lens Mount | C/CS |
