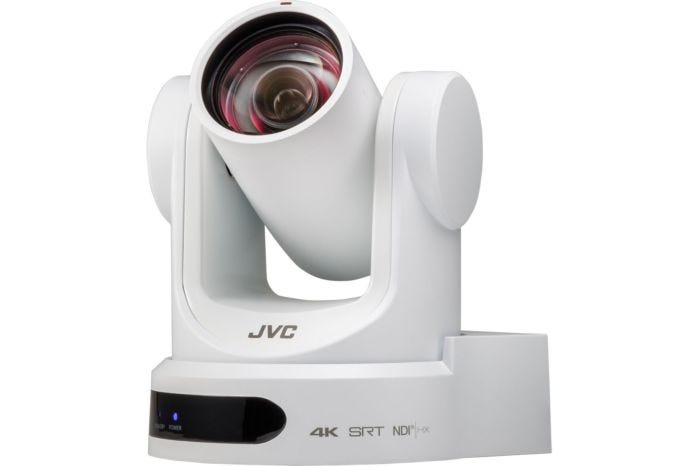

JVC 4K PTZ IP Production Camera with NDI|HX and SRT (White)
Availability:In stock
Cat No.
47205
SKU
KY-PZ400NWE
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Special Price
£1,558.80
£1,299.00
Save:
£561.00
Save:
£673.20
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
JVC 4K PTZ IP Production Camera with NDI|HX and SRT (White)
JVC’s first robotic pan, tilt and zoom 4K video production camera, the KY-PZ400 offers NDI®|HX, SRT and supports POE for a true 'One Wire Solution'.
Ideal for studio or field use, this PTZ model enables reliable remote IP production for education, corporate, live events and sport applications.
Key Features:
- 1/2.5-inch CMOS sensor (8.51 million pixels)
- Can memorize 255 preset settings and positions
- NDI|HX support
- Wide 71° optical zoom lens with 12x zoom ratio (4.4mm ~ 52.8mm, F1.8 ~ F2.6)
- Multiple protocoll streaming SRT, RTSP, RTMP, RTMPS
- Powerful encoding engine supports H.265, H.264 & MJPEG
- Simultaneous high (4K) and low resolution encoding with main and sub stream
- LAN Connector supports Power over Ethernet (POE)
- Compatible with RM-LP100 controller using JVC protocoll and API
- 3G-SDI and HDMI 2.0 (4K) digital outputs
- Remote control via RS232, RS485 and JVC IP protocoll
- Ships with IR controller, mounting bracket, power adapter & RS232 cable
- 1/2.5-inch CMOS sensor (8.51 million pixels)
- Can memorize 255 preset settings and positions
- NDI|HX support
- Wide 71° optical zoom lens with 12x zoom ratio (4.4mm ~ 52.8mm, F1.8 ~ F2.6)
- 4K PTZ Camera - White
- AC Power Adapter x1
- Power Cable x1
- RS232 Cable x1
- IR Remote Control x1
- User Manual x1
- Ceiling Bracket x1
- Logo Sticker x2
| Number of Sensors | 1 |
| Image Sensor (inch) | 1/2,5 Inch CMOS |
| Mega Pixels | 8.51 |
| S/N in dB | 41 |
| Min. Illumination | 0.5 Lux |
| Shutter speed | 1/30 to 1/10000 |
| Optical Zoom X times | 12 |
| Dynamic Zoom x times | 16 |
| Lens F Number | 1.8 to 2.6 |
| Lens ratio from / to | 4.4mm to 52.8mm |
| Auto Focus | Yes |
| PAN Angle in degree +/- | 170 |
| PAN Speed with AC Adapter max degree/sec. | 100 |
| PAN Speed with POE+ max degree/sec. | 100 |
| TILT Angle in degree | -30 to 90 |
| TILT Speed with AC Adapter max degree/sec. | 69.9 |
| TILT Speed with POE+ max degree/sec. | 69.9 |
| Preset Positions | 255 |
| Encoder | Encoder: H.265/H.264/MJPEG |
| IP Section of the Product | |
| IP Main Connection | Ethernet LAN RJ45 1000Base-T with POE+ |
| IP Connection supports | Ethernet |
| IP Features Live-Streaming | Yes |
| IP Features Remote | Yes, via RM-LP100 or Web-Browser no apps needed |
| Live-Streaming Bitrates | 1~60 Mbit/s |
| Live-Streaming Protocols | NDI|HX, SRT, RTMP, RTMPS, RTSP |
| Live-Streaming Single cast | Yes |
| Live-Streaming Multicast | Yes |
| IN-OUT´s Connections | |
| OUT HDSDI | Yes, 3G HDSDI |
| OUT HDSDI Format max. | 1080/60p,50p |
| OUT HDMI | Yes |
| OUT HDMI Format max. | 2160/30p,25p |
| OUT Audio Line | Yes, 1 times 3.5mm mini jack |
| IN Audio AUX | Yes, 1 times 3.5mm mini jack |
| PTZ Serial Interface RS-232C in/out | Yes, over 8 PIN mini DIN |
| Power and Enviroment Spec´s | |
| Power DC | Yes, 12 Volt or 42V to 57V POE+ over Network LAN |
| Power consumption | 12W |
| Operation Temperature in Celsius degrees | 0 to 40 |
| Storage Temperature in Celsius degrees | -40 to 60 |
