Fujinon ZA22x7.6BERD-S Telephoto ENG Style Lens
Availability:In stock
Cat No.
20571
SKU
ZA22x7.6BERD-S6
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£13,860.00
£11,550.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

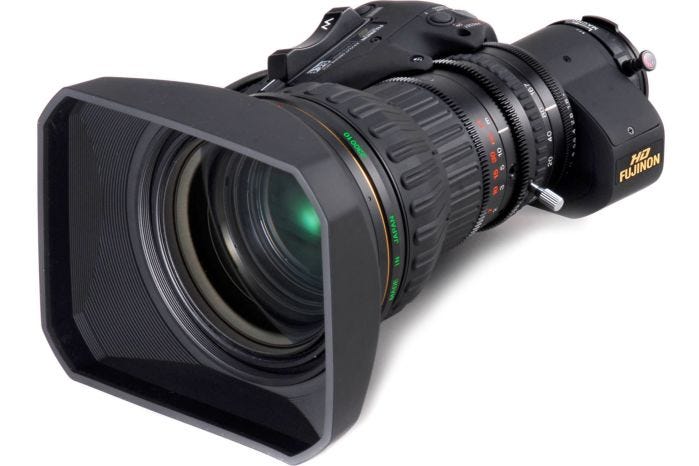

Fujinon ZA22x7.6BERD-S Telephoto ENG Style Lens
7.6-167mm wide to telephoto zoom lens for 2/3" cameras
The ZA22x7.6BERD-S with Servo for Focus and Zoom is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 22x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-120mm and stops down to f/2.5 at 167mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.
Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.
Key Features:
- 22x zoom ratio and 2x extender
- Fast f/1.8 max aperture at 7.6-120mm and f/2.5 at 167mm
- Digital servo for focus and zoom and full studio control via RS-232
- Innerfocus, QuickZoom, and Zoom Limit
- Focused Intelligent Network Diagnosis
- 22x zoom ratio and 2x extender
- Fast f/1.8 max aperture at 7.6-120mm and f/2.5 at 167mm
- Digital servo for focus and zoom and full studio control via RS-232
- Innerfocus, QuickZoom, and Zoom Limit
- Focused Intelligent Network Diagnosis
Format: 2.3" sensors
Focal Length:
- 1x: 7.6-167mm
- 2x: 15.2-334mm
Zoom Ratio: 22x
Extender: 2x
Maximum Aperture: 1 : 1.8 (7.6-120mm) / 1 : 2.5 (167mm)
Maximum Photometric Aperture T-No.: 1 : 1.9 (7.6 - 120 mm) / 1 : 2.6 (167 mm)
Minimum object distance (M.O.D.) from front lens: 0.8m
Object dimensions at M.O.D. 16 : 9 Aspect ratio
1x:
- 7.6mm 915 x 514mm
- 167mm 43 x 24mm
2x:
- 15.2mm 473 x 266mm
- 334mm 22 x 12mm
Angular Field of View (16:9):
1x:
- 7.6mm 64°30' x 39°03'
- 167mm 3°17' x 1°51'
2x:
- 15.2mm 35°01 x 20°07'
- 334mm 1°39' x 0°55'
Macro: Available
Filter Thread: M95 × 1 / M107 × 1 *
Size (φ x Length): φ100 × 222.6 mm
Weight: 1.85kg (RM) / 1.92kg (RD)
