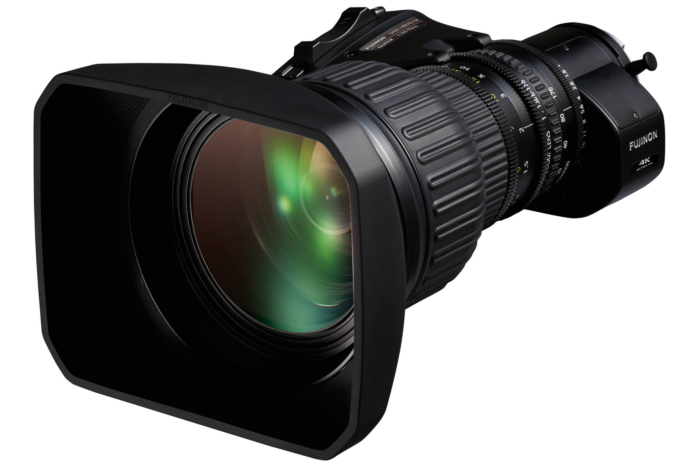

Fujinon UA Series UA22x8BERD 22x Zoom 2/3" 4K UHD Telephoto ENG Style Lens with 2x Extender

The FUJIFILM flagship UA Series of 4K+ 2/3” lenses is the world-first for Ultra HD Broadcast applications.

The UA22x8 delivers true 4K optical quality which is a hallmark FUJINON “ZK series” of cine lenses. The optical quality is based on large diameter aspherical elements designed by their latest optical simulation system. Also, the lens achieves 4K+ UHD optical performance from center to corner throughout the zoom range while suppressing image distortion due to a multi-group zoom system. Designed to produce the ultimate performance from today’s new 4K 2/3” Ultra HD cameras.

The UA22x8 employs the latest High Transmittance Electron Beam Coating (HT-EBC) resulting in richer colours and greatly improved blue response and transmittance. HT-EBC, coupled with Fujifilm’s exclusive Aspheric Technology, reduces ghost and flare and increases light transmission.

The UA22x8 features the latest generation Servo Drive Unit with highly accurate16 bit encoders. Digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired.

Key Features:

• Digi Power Control System
• Enhanced Digital Quick Zoom
• Inner-Focus
• Zoom limit
• Cruise zoom limit

• Digi Power Control System
• Enhanced Digital Quick Zoom
• Inner-Focus
• Zoom limit
• Cruise zoom limit

• Fujinon UA Series UA22x8BERD 22x Zoom 2/3" 4K UHD Telephoto ENG Style Lens with 2x Extender

Camera Format: 2/3″
Focal Length:

• 1 × 8.0 - 176 mm
• 2 × 16 - 352 mm

Zoom Range: 22 ×
Extender: 2 ×
Maximum Relative Aperture:

• 1 : 1.8 (8 - 124 mm)
• 1 : 2.55 (125 - 176 mm)

Maximum Photometric Aperture T-No.:

• 1 : 1.7 (9 - 350 mm)
• 1 : 2.55 (125 - 176 mm)

M.O.D. from the Front of the Lens: 0.85 m
Object dimensions at M.O.D.:
16 : 9 Aspect ratio

• 1 × 8 mm 905 × 509 mm
• 176 mm 43 × 24 mm
• 2 × 16 mm 472 × 265 mm
• 352 mm 22 × 12 mm

Angular field of view:
16 : 9 Aspect ratio

• 1 × 8 mm 61°52′ × 37°14′
• 176 mm 3°7′ × 1°45′
• 2 × 16 mm 33°22′ × 19°7′
• 352 mm 1°34′ × 0°53′

Macro: Available
Filter thread: M127 × 0.75 (Filter attaches to the lens hood)
Diameter × Length: 110 × 241.5 mm
Weight: (Lens hood excluded) 2.55 kg
