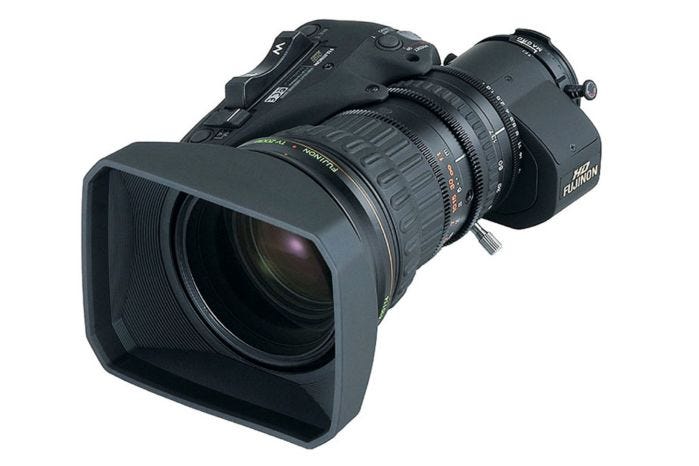

Fujinon HTs18x4.2BERM 1/3" 18x High Definition Lens with 2x Extender

High Quality 1/3 inch HD ENG/EFP lens with 2X extender featuring Digi Power servo

The Fujinon HTs18x4.2BERM-M48 is a 1/3" lens with 18x optical zoom and is built specifically for JVC's line of prosumer HDV camcorders. Known for their high build quality and precision optics, Fujinon lenses have become the industry standard for professional video applications all over the world.

This lens will not only resolve images for high-definition acquisition, it's also equipped with a wide array of extra features such as QuickZoom technology. Quickzoom makes it easy to verify focus by allowing instant telephoto zoom capability.

High Definition Ready
Many high-definition cameras are hamstrung by insufficient optics. Electronic News Gathering (ENG) lenses traditionally have been built to accommodate standard-definition. This lens is designed specifically with high-definition in mind. The optics increase fidelity, making sure HD footage is crystal clear.

QuickZoom Technology
The lens has an added zoom capability when using the QuickZoom switch. At the touch of a button, the lens can move to full telephoto in less than a second. This provides a no-hassle way of verifying focus.

Integral 2x Extender
For instant close-up shots, the lens has a switch which inserts an element that doubles the focal length at any point in the zoom range. Instead of using the zoom function, the extender gives immediate close up images.

Internal Focus
The lens element design fitted for the internal focus mechanism greatly reduces aberrations and image distortions. These advances contribute to more balanced imaging from center to edge throughout the aperture range.

VFormat Correction
Achieving 4:3 aspect ratios from a 16:9 CCD is usually performed by cutting off the sides of the imager, effectively making the minimum focal length more telephoto. Fujinon's VFormat technology preserves the same picture angles by shortening the original focal length. Shots in standard 4:3 hold the same image size as if shot in 16:9.

Key Features:

• Digi Power enhance the performance of Fujinon zoom lenses
• Features Digital Quick Zoom
• HD Digital
• Digital Find System aids in preventive maintenance and troubleshooting

• Digi Power enhance the performance of Fujinon zoom lenses
• Features Digital Quick Zoom
• HD Digital
• Digital Find System aids in preventive maintenance and troubleshooting

Camera Format: 1/3″
Focal Length:

• 1 ×: 4.2 - 76 mm
• 2 ×: 8.4 - 152 mm

Zoom Range: 18 ×
Extender: 2 ×
Maximum Relative Aperture:

• 1 : 1.4 (4.2 - 76 mm)
• 1 : 2.8 (152 mm)

M.O.D. from the Image Plane: 0.84 m
M.O.D. from the Front of Lens: 0.6 m

Object dimensions at M.O.D.
16 : 9 Aspect ratio:

• 4.2 mm 768 × 409 mm
• 76 mm 40 × 23 mm

Angular field of view
16 : 9 Aspect ratio:
1 ×:

• 4.2 mm 63°49′ × 39°35′
• 76 mm 3°56′ × 2°13′

2 ×:

• 8.4 mm 34°35′ × 19°51′
• 152 mm 1°52′ × 1°6′

Filter thread: M82 × 0.75
Diameter × Length: 85 × 206.6 mm
Weight (Lens hood excluded): 1.58 kg
