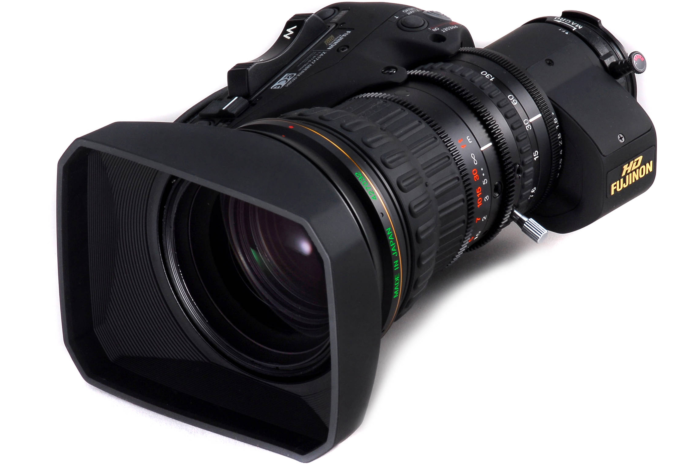

Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1/2" Sensors

The Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1/2" Sensors, designed for news and production, comes with 17× zoom range and 2× extender to support 1/2″ format camera.

DigiPower servo control system, a 32-bit RISC processor, a CPU in each servo demand, optical encoders, high-speed serial communication devices, and a digital control circuit ensure 13-bit accuracy in zoom and focus control. Additionally, an RS232 connector in the ENG Style HD Lens connects the lens to a PC or other control device for external control. This external control allows you to manage the lens functions with a high degree of accuracy and reliability.

The 17x HD Lens features Quick Zoom with a speed of 0.7 seconds ‘end to end’. Providing a rapid zoom movement to the telephoto position, Quick Zoom allows you to check focus with the simple push of a button.

• ENG style lens designed for news and production
• Comes with 2× extender, 17× zoom range
• For cameras with 1/2" format sensors
• DigiPower servo control system ensures extremely precise and steady zoom movement
• A 32-bit RISC processor, a CPU in each servo demand, optical encoders, high-speed serial communication devices, and a digital control circuit ensure 13-bit accuracy in zoom and focus control as well as several other new functions
• RS232 connector offers external control by connecting the lens to a PC or other control device
• Features Innerfocus technology and Zoom limit

Quick Zoom

• Speed of 0.7 seconds end to end
• Provides a rapid zoom movement to the telephoto position
• Allows you to check focus with the simple push of a button
• Can be performed remotely from the ERD-T22 and ERD-10A-D01 (Optional)

Focused Intelligent Network Diagnosis System

• Helps in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters
• Attained data can be stored for future reference in determining the need for service or adjustments

Key Features:

• 17× Zoom Range & 2× Extender
• For Cameras with 1/2" Format Sensor
• DigiPower Servo Control System
• Focused Intelligent Network Diagnosis
• 32-bit RISC Processor
• Quick Zoom (0.7 sec End to End)
• Innerfocus / Zoom Limit
• RS232 Connector

• 17× Zoom Range & 2× Extender
• For Cameras with 1/2" Format Sensor
• DigiPower Servo Control System
• Focused Intelligent Network Diagnosis
• 32-bit RISC Processor
• Quick Zoom (0.7 sec End to End)
• Innerfocus / Zoom Limit
• RS232 Connector

• Fujinon ENG Style ZS17X5.5BERM HD 5.5-94mm Lens for 1/2" Sensors

Camera Format: 1/2"
Focal Length:

• 1× 5.5 - 94 mm
• 2 × 11.0 - 188 mm

Zoom Range: 17X
Extender: 2X
Maximum Relative Aperture:

• 1 : 1.4 (5.5 - 77 mm)
• 1 : 1.7 (94 mm)

Maximum Photometric Aperture T-No.: 1 : 1.5
M.O.D. from the Front of Lens: 0.6 m
Object Dimensions at M.O.D.: 16 : 9 Aspect ratio

• 1 × 5.5 mm 741 × 417 mm
• 94 mm 41 × 23 mm
• 2 × 11.0 mm 371 × 208 mm
• 188 mm 21 × 12 mm

Angular Field of View: 16 : 9 Aspect ratio

• 1 × 5.5 mm 64°43′ × 39°14′
• 94 mm 4°15′ × 2°23′
• 2 × 11.0 mm 35°09′ × 20°12′
• 188 mm 2°07′ × 1°12

Macro: Available
Filter Thread: M82 × 0.75
Weight: 3.48 lb (1.58 kg)
