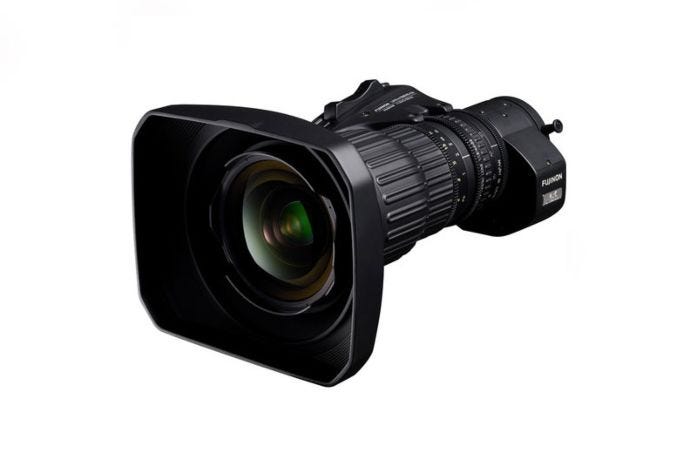

Fujinon 4K UHD ENG Lens 2/3'' UA13x4.5
The FUJIFILM flagship US series of 4K+2/3'' lens is the world-first for Ultra HD Broadcast applications. The UA13x4.5BERD Wide Angle delivers true 4K optical quality which is a hallmark FUJINON ''ZK series'' of cine lenses. The optical quality is based on large diameter aspherical elements designed by their latest optical simulation system. Also, the lens achieves 4K + UHD optical performance from centre to corner throughout the zoom range while suppressing image distortion due to a multi-group zoom system. Designed to produce the ultimate performance from today's new 4K 2/3'' Ultra HD cameras.
The UA13x4.5BERD employs the latest High Transmittance Electron Beam Coating (HT-EBC) resulting in richer colours and greatly improved blue response and transmittance. HT-EBC, coupled with Fujifilm's exclusive Aspheric Technology, reduces ghost and flare and increases light transmission. The high resolution, high contrast, and high dynamic range of the UA13x will produce images that are sure to impress.
The UA13x4.5BERD features the latest generation Servo Drive Unit with highly accurate 16 bit encoders. Digital servo zoom & focus for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired.
- 4K Optical Quality
- High Transmittance Electron Beam Coating
- Cruise Zoom Limit
- Fujinon 4K UHD ENG Lens 2/3'' UA13x4.5
| Camera Format | 2/3'' |
|---|---|
| Focal Length 1x | 4.5 - 59mm |
| Focal Length 2x | 9 - 118mm |
| Zoom Range | 13 x |
| Extender | 2 x |
| Maximum Relative Aperture | 1:1.8 (4.5 - 41mm) 1:2.6 (59mm) |
| M.O.D Front of the Lens | 0.3m |
| Object Dimensions at M.O.D 16:9 Aspect Ratio 1x |
4.5mm 744 x 418mm 39mm 54 x 30mm |
| Object Dimensions at M.O.D 16:9 Aspect Ratio 2x |
9mm 367 x 206mm 118mm 28 x 16mm |
| Angular Field of View 16:9 Aspect Ratio 1x |
4.5mm 93°38′ × 61°50′ 59 mm 9°18′ × 5°14′ |
| Angular Field of View 16:9 Aspect Ratio 2x |
9 mm 56°6′ × 33°20′ 118 mm 4°39′ × 2°37′ |
| Macro | Available |
| Filter thread | M127 x 0.75 (Filter attaches to the lens hood) |
| Diameter x Length | 105 x 253mm |
| Weight (lens hood excluded) | 2.39kg |
| Features |
|
