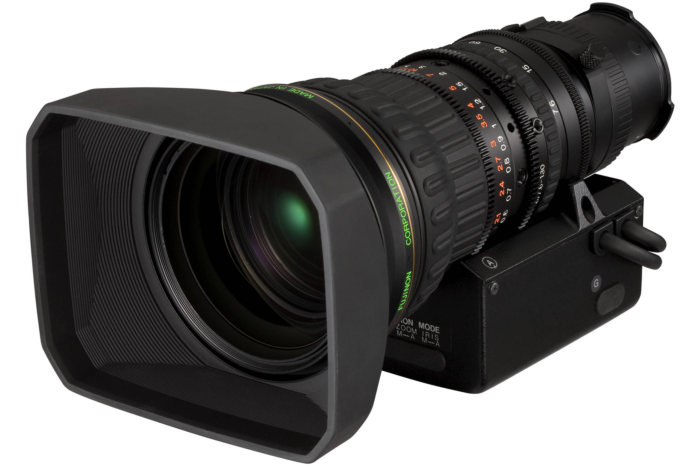

Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender

Availability:In stock
Cat No.
20812
SKU
ZA17x7.6BEMD-DSD
Fujinon

Not in stock - Usually Delivered >2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£9,624.00 £8,020.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender

The Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender is a high-definition lens suitable for use in teleconferencing, Tower Cam, POV and other applications that require full analog remote control of zoom, focus and iris.

It offers a focal length range of 7.6-130mm and supports the 2/3" image format. Equipped with a 2x extender, the lens can provide a telephoto angle up to 260mm. The Quick Zoom lens offers you an end to end zoom movement in 0.7 seconds. This feature allows you to move to the telephoto position to check the focus, and then return to the previously selected zoom position by simply pushing and releasing the button.

The zoom limit function can be used in the servo operation mode. It allows the zoom movement to be confined toward both the wide side and the telephoto side, thus ensuring that zooming is done within the desired shot angles.

In addition to supporting HD digital technology, the lens features Innerfocus technology which helps minimize lens breathing. You can control the lens remotely from a PC or any other device via Fujinon controllers, Pan/Tilt units or any other third party controller.

  • 17x optical zoom with 7.6-130 mm focal length range
  • 2x extender provides a telephoto angle up to 260 mm
  • Suitable for use in teleconferencing, Tower Cam, POV and other applications that require full analog remote control of zoom, focus and iris
  • Zoom limit function allows the zoom movement to be confined toward both the wide side and the telephoto side, thus ensuring that zooming is done within the desired shot angles
  • Quick Zoom offers you an end to end zoom movement in 0.7 seconds
  • You can move to the telephoto position at the push of a button in order to check focus, and then return to the previously selected zoom position by simply pushing and releasing the button
  • Features Innerfocus technology that helps minimize lens breathing

Key Features:

  • 17x Optical Zoom (7.6-130mm)
  • 2x Extender for 15.2-260mm Focal Length
  • Zoom Limit Function
  • Quick Zoom (0.7 sec End to End)
  • Innerfocus Technology
  • Remote Control Support
  • 17x Optical Zoom (7.6-130mm)
  • 2x Extender for 15.2-260mm Focal Length
  • Zoom Limit Function
  • Quick Zoom (0.7 sec End to End)
  • Innerfocus Technology
  • Remote Control Support
  • Fujinon 2/3" HD Remote Control Lens with 17x Optical Zoom & 2x Extender

Image Format: 2/3"
Focal Length:

  • 1x Extender: 7.6 - 130 mm
  • 2x Extender: 15.2 - 260 mm

Zoom Range: 17x
Extender: 2x
Maximum Relative Aperture:

  • 1 : 1.8 (7.6 - 102 mm)
  • 1 : 2.3 (130 mm)

Maximum Photometric ApertureT-No.:

  • 1 : 1.9 (7.6 - 102 mm)
  • 1 : 2.5 (130 mm)

M.O.D. from Image Plane: 2.75' (0.84 m)
M.O.D. from Front of Lens: 1.96' (0.6 m)
Object Dimensions at M.O.D.: 16 : 9 Aspect ratio:

  • 1x Extender: 7.6 mm - 696 x 392 mm, 130 mm - 43 x 24 mm
  • 2x Extender: 15.2 mm - 362 x 204 mm, 260 mm - 21 × 12 mm

Angular Field of View: 16 : 9 Aspect ratio:

  • 1x Extender: 7.6 mm - 64°30' x 39°03', 130 mm - 4°13' x 2°23'
  • 2x Extender: 15.2 mm - 35°01' x 20°07', 260 mm - 2°07' x 1°11'

Macro: Available
Filter Thread: M82 x 0.75
Diameter: 3.34" (85 mm)
Length: 7.99" (203 mm)
Weight: 3.52 lb / 1.6 kg (Lens hood excluded)
