At the peak of aerial cinematography, DJI Inspire 3 offers unprecedented workflow efficiency, camera language, and creative freedom. This all-in-one 8K camera drone empowers professional-level filmmakers to fully maximize the potential of any shot and master the unseen.
Sleek, Integrated Design

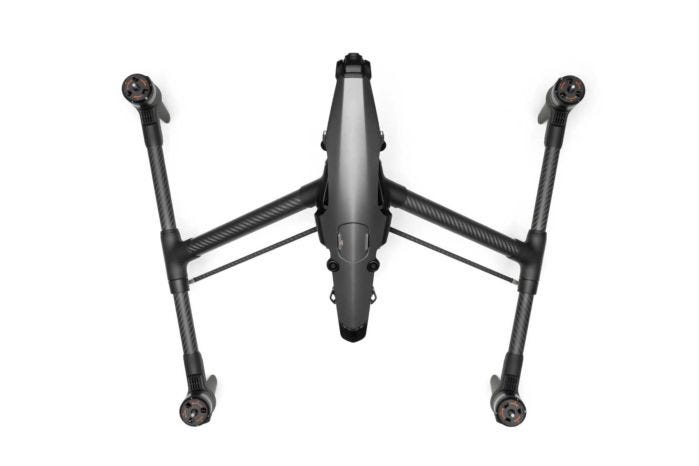

Inspire 3 is a professional camera drone that adopts a fluid new design that takes aerodynamics fully into consideration to reduce air resistance.
The max dive speed has increased from the 9 m/s of Inspire 2 to 10 m/s, while vertical ascend/descend speed has increased from 6 m/s and 4 m/s to 8 m/s. [1]
Powerful maneuverability delivers responsive, accurate control and an extended flight time of up to 28 minutes. [2]
The FPV camera, visual sensors, positioning antennas, and storage card slot all adopt designs that are seamlessly integrated into the airframe for a minimalist look and modern industrial aesthetics.
Inheriting the classic transformable configuration of the Inspire series, Inspire 3 uses an all-new design that supports 360° Pan and Tilt Boost structures. When the landing gear is lowered, the gimbal supports obstruction-free 80° upward-angle shooting, [3] enabling cinematographers to capture strikingly innovative shots.
Centimeter-Level RTK Positioning
Inspire 3 integrates high-precision RTK positioning technology used in industries such as architecture and surveying to deliver centimeter-level accuracy. [4] Compared with traditional meter-level positioning supported by Global Navigation Satellite Systems (GNSS), RTK not only makes flying more stable, but also makes flight-route planning more accurate, significantly improving creative efficiency.
RTK antennas have been built into the airframe with a new stacked ceramic design, which enables three types of GNSS (GPS, BeiDou, and Galileo) and delivers dual-frequency positioning down to the centimeter level. By activating an RTK network [5] or setting up a D-RTK 2 Mobile Station, [6] users can achieve highly accurate positioning without mounting any additional modules.
Custom Network RTK
Use custom network RTK directly in RTK-covered areas. Simply enable internet access on DJI RC Plus and connect to an NTRIP server to allow Inspire 3 to receive comprehensive data for fast and accurate positioning.
RTK Base Station
In environments without network RTK coverage, the RTK function can be used by setting up a D-RTK 2 Mobile Station. Then, Inspire 3 can receive comprehensive data from the mobile station for accurate positioning.
Dual-Antenna Orientation
Both the front and the rear of Inspire 3 have a built-in stacked ceramic antenna, providing powerful anti-magnetic-interference capability to further improve flight accuracy and safety.
Waypoint Pro
Specially designed for aerial cinematography, Waypoint Pro enables flight-route and shot planning with a wide range of customized settings. With the new Repeatable Routes and 3D Dolly modes, an innovative automated shooting experience can be easily achieved. In addition, RTK centimeter-level positioning ensures more accurate flight-route planning and execution. Whether solo shooting or in a professional crew, use Waypoint Pro to master even highly-complex scenes.
Repeatable Routes
Using Repeatable Routes, the aircraft will automatically fly on the same route and maintain all preset parameters such as altitude, speed, gimbal angle, and camera settings. Repeating the same flight mission allows cinematographers to effortlessly perform difficult one-takes, or to fly at different times in the same place to easily create long-duration timelapses that capture transitions such as day to night or season to season.
3D Dolly
3D Dolly can simulate a crane, cablecam, or dolly on film sets while going far beyond the limitations of those devices. After planning a flight route, the cinematographer can manually control the aircraft to move along the route back and forth while adjusting parameters such as speed, gimbal angle, and more according to the needs of the shot. This makes complicated cinema-grade camera movements easier and more efficient and can deliver improved visual effects.
Spotlight Pro
Upgraded from Inspire 2, Spotlight Pro further enables solo creators with more shot possibilities. Based on powerful machine-learning algorithms, Inspire 3 supports automated subject recognition and locking for people, vehicles, and boats with greater accuracy than its predecessor.
When using Spotlight Pro's Follow mode, the aircraft and gimbal camera orient toward the same direction and remain locked on the subject so that the pilot can get circling shots without manual framing adjustments.
Omnidirectional Sensing System
Inspire 3 is equipped with nine sensors, which enable a robust omnidirectional sensing system that can detect obstacles in all directions and provide comprehensive protection for flying. [7]
For the first time, a fisheye camera has been added to each of the four landing arms. This design helps to avoid obstruction from the airframe when the landing gear is raised and allows for horizontal obstacle sensing when the landing gear is lowered.
Customizable Obstacle Sensing
In addition, Inspire 3 features a new customizable function to help ensure greater flight safety and more creative freedom. Horizontal, upward, and downward obstacle sensing can be enabled or disabled independently, and an obstacle alert range can be manually set to suit different scenarios. [8]
When active avoidance is turned off, users can still view the distance from an obstacle on the navigation display in real-time and receive an audio alert when an obstacle is within a set range without the aircraft performing an automatic avoidance movement. This brings new possibilities to professional aerial teams that want to achieve more complex camera language.
Ultra-Wide Night-Vision FPV Camera
Inspire 3 is equipped with a new 1/1.8-inch-sensor FPV camera with a 3μm pixel size, an ultra-wide DFOV of 161°, and the ability to transmit live feeds at up to 1080p/60fps. Compared to its predecessor, the DFOV is approximately doubled. This FPV camera delivers more impressive light-sensing capability, allowing pilots to observe their surroundings vividly and clearly, even at night, and ensure greater levels of flight safety.
Tailormade 8K Sensor
DJI’s lightest-ever full-frame three-axis gimbal camera, the X9-8K Air, is custom-built for Inspire 3 to take drone cinematography to the next level. It features DJI’s latest image processing system, CineCore 3.0, supporting internal recording of up to 8K/25fps CinemaDNG video [9] as well as 8K/75fps [10] Apple ProRes RAW video, [9] meeting the needs of top-class film and television productions. 8K means ultra-high-resolution aerial footage that retains true-to-life texture close to what the human eye sees, with clarity that stuns audiences when displayed on larger screens. RAW brings X9-8K Air's sensor fully into play, providing abundant space for visual effects and color grading. In S&Q mode, X9-8K Air supports internal recording of up to full-frame 4K/120fps ProRes RAW video without cropping, providing more creative editing options.
Dual Native ISO
X9-8K Air supports dual native ISO. At full-frame 30fps and below, it offers EI 800/4000, supporting the 24fps commonly seen in film productions and the 25fps used in commercial and television productions. At above 30fps, EI 320/1600 is available.
This allows X9-8K Air to record images with exquisite details and minimal noise, even low-light cityscapes or beaches, putting it on par with professional ground-based cinema cameras.
14+ Stops of Dynamic Range
X9-8K Air covers 14+ stops of dynamic range, which captures rich highlight and shadow details in complex lighting scenarios like sunrises and sunsets. High dynamic range brings more possibilities for post-editing, retaining genuine colors even after significant exposure adjustments.
DL Mount Lenses [11]
Inheriting DJI’s proprietary DL mount, X9-8K Air is compatible with an additional 18 mm F2.8 full-frame ultra-wide lens and a new telephoto lens (will be released at a later date) [12] on top of the previous full-frame lens selections of DL 24/35/50 mm F2.8. All five lenses are custom-made for aerial cinematography. The housings are made of lightweight, monocoque carbon fiber, so the lightest lens weighs just 178 g, meeting Inspire 3's requirement for ultra-high maneuverability.
DJI Cinema Color System (DCCS)
Building on DJI's mature color science and technology, the DJI Cinema Color System allows the X9-8K Air to retain authentic colors that redefine the look of aerial cinematography. This applies to natural settings and urban landscapes, and also accurately captures skin tones in different environments and lighting conditions. DCCS ensures effortless color matching between X9-8K Air and ground-based cinema cameras such as DJI Ronin 4D, delivering consistent color style from air to ground to meet the needs of film-production post-editing workflows.
Multi-Camera Timecode Sync
Through the 3.5mm port on the aircraft, you can sync timecode between equipment in the air and on the ground. When dealing with abundant footage from multiple cameras, timecode sync makes the editing process significantly more simplified and efficient.
Footnotes
* Please check and strictly abide by local laws and regulations before flying.
** All data was tested with a production model DJI Inspire 3 in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations.
**** Before use, Inspire 3 must be activated via the DJI Pilot 2 app.
1. Full speed tested when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. The data is for reference only.
2. Measured when flying forward at a constant speed of 36 kph with the landing gear down in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app.
3. Measured using DL 50 mm lens with landing gear lowered and the aircraft hovering in a windless environment.
4. When RTK is disabled, DJI Inspire 3 uses GNSS positioning by default.
5. Before using custom network RTK, contact a local dealer to purchase the service.
6. The D-RTK 2 Mobile Station is sold separately.
7. Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered. When the landing gear is down, there are obstacle-avoidance blind spots at the front-left and front-right areas of the aircraft of approximately 20°.
8. Custom brake range of obstacle avoidance: 2-10 meters horizontally, 1-3 meters upward, and 1 meter downward. Custom alert range of obstacle sensing: 2.1-30 meters horizontally, 1.1-10 meters upward, and 1.1-10 meters downward.
9. License key sold separately.
10. Shooting 8K/75fps video requires full-frame 2.4:1 aspect ratio and Apple ProRes RAW in S&Q mode.
11. Sold separately.
12. The new telephoto lens will be released at a later date.
13. Measured in an unobstructed outdoor environment free of interference, with gimbal camera and lens attached to the aircraft and without other accessories. The above data shows the farthest communication range for one-way, non-return flights under each standard. During flight, please pay attention to reminders in the app.
14. Longest video transmission distance in single control mode: FPV Camera: approx. 15 km (FCC), 8 km (CE/SRRC/MIC). Gimbal Camera (1080p/60fps live feeds): approx. 13 km (FCC), 7 km (CE/SRRC/MIC). Gimbal Camera (4K/30fps live feeds): approx. 5 km (FCC), 3 km (CE/SRRC/MIC).
15. Longest video transmission distance in dual-control mode: FPV Camera: approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC). Gimbal Camera (1080p/60fps live feeds): approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC). Gimbal Camera (4K/30fps live feeds): approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC).
16. The lowest latency of the gimbal camera was measured when recording 4K/60fps ProRes RAW video. The lowest latency of the FPV camera was measured with strong video transmission signals.
17. Only when the frame rate is 30fps and below.
18. When using dual remote controllers, make sure that the antennas of both remote controllers are pointing toward the aircraft, and there is no obstruction between the remote controllers and the aircraft. Otherwise, a remote controller with poor signal may impair the communication quality of the other.
19. The port is located on the DJI Remote Monitor Expansion Plate, which is sold separately.
20. Transmission performance differs in Broadcast mode.
21. Tested at a room temperature of 25° C (77° F) in a well-ventilated environment and is for reference only.
22. Measured using the included USB-C to USB-C data cable on Apple MacBook Pro 2021 (Apple M1 Max chip).
Aircraft | |
---|---|
Model | T740 |
Aircraft Weight | Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers) |
Max Takeoff Weight | Approx. 4,310 g |
Hovering Accuracy Range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) Horizontal: ±0.3 m (with vision positioning) ±0.5 m (with GNSS positioning) ±0.1 m (with RTK positioning) |
RTK Positioning Accuracy (RTK fix) | 1 cm + 1 PPM (horizontal) 1.5 cm + 1 PPM (vertical) |
Max Angular Velocity | Pitch: 200°/s Roll: 200°/s Yaw: 150°/s |
Max Tilt Angle | N Mode: 35° S Mode: 40° A Mode: 35° T Mode: 20° Emergency Brake: 55° |
Max Ascent Speed | 8 m/s Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. |
Max Descent Speed | Vertical: 8 m/s Tilt: 10 m/s Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. |
Max Horizontal Speed | 94 kph Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. |
Max Service Ceiling Above Sea Level | Standard Propellers: 3800 m High-Altitude Propellers: 7000 m Measured in an environment with light wind with the gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. |
Max Wind Resistance | Takeoff/land: 12 m/s In-flight: 14 m/s Measured when flying at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only. |
Max Hovering Time | Approx. 25 minutes Measured when hovering in a windless environment at sea level with gimbal camera and lens attached to the aircraft and without other accessories, with landing gear raised, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app. |
Max Flight Time | Approx. 28 minutes (landing gear lowered) Approx. 26 minutes (landing gear raised) Measured when flying forward at a constant speed of 36 kph in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app. |
Motor Model | DJI 3511s |
Global Navigation Satellite System | GPS + Galileo + BeiDou |
Propeller Model | Standard Propellers: DJI 1671 High-Altitude Propellers: DJI 1676 |
Operating Temperature | -20° to 40° C (-4° to 104° F) |
Diagonal Distance | Landing Gear Raised: 695 mm Landing Gear Lowered: 685 mm |
Travel Mode Dimensions | Height: 176 mm Width: 709.8 mm Length: 500.5 mm |
Gimbal Camera | |
Sensor | 35mm full-frame CMOS |
Max Resolution | Photo: 8192×5456 Video: 8192×4320 |
Supported Lens | DL 18 mm F2.8 ASPH Lens DL 24 mm F2.8 LS ASPH Lens DL 35 mm F2.8 LS ASPH Lens DL 50 mm F2.8 LS ASPH Lens |
Photo Format | JPG, DNG |
Video Format | MOV, CinemaDNG |
Operation Mode | Capture, Record, Playback |
Exposure Mode | P, A, S, M |
Shutter Type | Electronic shutter |
Shutter Speed | 8-1/8000 s |
White Balance | AWB MWB (2000K-10000K) |
ISO Range | Photo ISO: 100-25600 Video EI: 200-6400 |
Anti-flicker | Capture Mode: Auto, 50 Hz, 60 Hz, OFF |
Angular Vibration Range | Hovering: ±0.002° Flying: ±0.004° |
Installation Method | Quick release |
Mechanical Range | Tilt: -128° to +110° (landing gear lowered) -148° to +90° (landing gear raised) Roll: -90° to +230° Pan: ±330° |
Controllable Range | Tilt (landing gear lowered): Before gimbal pitch limit extension: -90° to +30° After gimbal pitch limit extension: -115° to +100° Tilt (landing gear raised): Before gimbal limit extension: -90° to +30° After gimbal limit extension: -140° to +75° Roll: ±20° Pan: ±300° |
Max Control Speed | With DJI RC Plus: Tilt: 120°/s Roll: 180°/s Pan: 270°/s With DJI Master Wheels: Tilt: 432°/s Roll: 432°/s Pan: 432°/s |
Weight | Approx. 516 g (without lens) |
Video Transmission | |
Video Transmission System | O3 Pro |
Live View Quality | FPV Camera: Up to 1080p/60fps Gimbal Camera: Up to 1080p/60fps, 4K/30fps |
Max Live Video Bitrate | 50 Mbps |
Max Transmission Distance |
Single Control Mode: Dual-Control Mode: |
Lowest Latency | FPV Camera: 90 ms Gimbal Camera: 90 ms The lowest latency of the gimbal camera was measured when recording 4K/60fps ProRes RAW video. The lowest latency of the FPV camera was measured with strong video transmission signals. |
Operating Frequency | 2.4000-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz In some countries and regions, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. |
Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE) |
Battery |
|
Model | TB51 Intelligent Battery |
Capacity | 4280 mAh |
Nominal Voltage | 23.1 V |
Type | Li-ion |
Chemical System | LiCoO2 |
Energy | 98.8 Wh |
Weight | Approx. 470 g |
Operating Temperature | -20° to 40° C (-4° to 104° F) |
Charging Temperature | -20° to 40° C (-4° to 104° F) If the temperature of the battery is lower than 10° C (50° F), the battery will trigger an auto-heating function. Charging in a low-temperature environment below 0° C (32° F) may shorten battery life. |
Max Charging Power | 411 W |
Charge via Aircraft | Not supported |
Battery Charging Hub |
|
Input | 100-240 V AC, max 8 A |
Output |
26.4 V, 7.8 A |
Total Rated Output | 476 W, including 65W PD fast charging of USB-C port |
Charging Time | Fast Mode: Approx. 35 minutes to 90% Standard Mode: Approx. 55 minutes to 100% Silent Mode: Approx. 80 minutes to 100% Tested at a room temperature of 25° C (77° F) and in a well-ventilated environment. In Fast mode, each battery pair is charged to 90% in sequence, and then eight batteries are charged together to 100%. |
Charging Temperature | -20° to 40° C (-4° to 104° F) |
Weight | Approx. 1,680 g |
Memory Card |
|
Memory Card Type | DJI PROSSD 1TB |
Sensing | |
Forward | Measurement Range: 1.5-48 m Effective Sensing Speed: ≤15 m/s FOV: Horizontal 90°, Vertical 103° (landing gear raised) Horizontal 72°, Vertical 103° (landing gear lowered) |
Backward | Measurement Range: 1.5-48 m Effective Sensing Speed: ≤15 m/s FOV: Horizontal 90°, Vertical 103° |
Lateral | Measurement Range: 1.5-42 m Effective Sensing Speed: ≤15 m/s FOV: Horizontal 90°, Vertical 85° |
Upward | Measurement Range: 0.2-13 m Effective Sensing Speed: ≤6 m/s FOV: Front and Back 100°, Left and Right 90° |
Downward | Measurement Range: 0.3-18 m Effective Sensing Speed: ≤6 m/s FOV: Front and Back 130°, Left and Right 160° |
Operating Environment | Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15) Downward: surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people); adequate lighting (lux >15) Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered. |
ToF Infrared Sensor Measurement Range | 0-10 m |
Remote Controller |
|
Model | RM700B |
Operating Time | Built-in Batteries: approx. 3.3 hours Built-in Batteries Plus External Battery: approx. 6 hours |
Operating Frequency | 2.4000-2.4835 GHz 5.725 GHz-5.850 GHz In some countries and regions, 5.1GHz and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. |
Video Output Port | HDMI |
Power Supply | Built-in batteries or external battery |
Coordinated Operation | Supports dual controls and coordination between multiple operators |
Power Consumption | 12.5 W |
Operating Temperature | -20° to 50 °C (-4° to 122° F) |
Storage Temperature | -30° to 45° C (-22° to 113° F) (within one month) -30° to 35° C (-22° to 95° F) (one to three months) -30° to 30° C (-22° to 86° F) (three months to one year) |
Battery | Built-in Battery: 3250mAh-7.2V (a set) External Battery: WB37 Intelligent Battery |
Wi-Fi Protocol | Wi-Fi 6 |
Wi-Fi Operating Frequency | 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz |
Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) |
Bluetooth Protocol | Bluetooth 5.1 |
Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
Bluetooth Transmitter Power (EIRP) | < 10 dBm |
App |
|
App | DJI Pilot 2 |
FPV Camera |
|
FOV | 161° |
Resolution | 1920×1080@60fps |
