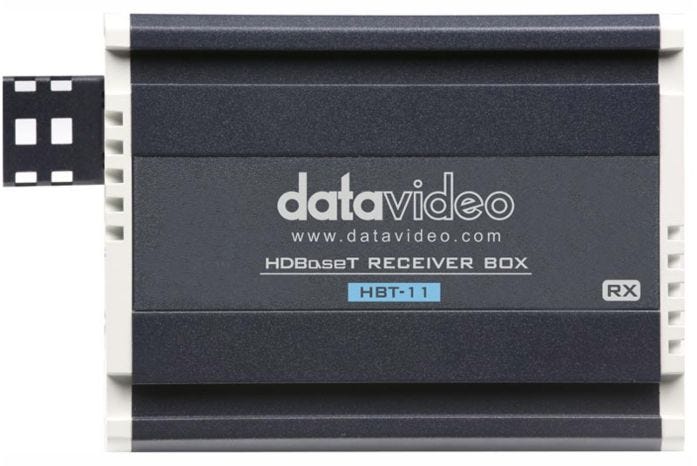

Datavideo HBT-11 HDBaseT Receiver

Availability:In stock
Cat No.
24652
SKU
DATA-HBT11
Datavideo

1 in stock - Order by 3pm for next day delivery.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£401.70 £334.75
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Datavideo HBT-11 HDBaseT Receiver


The HBT-10 HDBaseT transmitter and HBT-11 receiver provide a maximum transmission distance of 100 meters. The pair supports video transmission up to 4K resolutions over Ethernet. With a 48V power source connected to the HBT-11 HDBaseT receiver, the HBT-11 can also remotely power the transmitter using Power over Ethernet (PoE).

The HBT-10 transmitter can power external devices from the 12V/30W DC output. DVIP control can be achieved over the same Ethernet cable. In other words, HDMI video, DVIP control signals and Power over Ethernet (PoE) can be transmitted between the transmitter and the receiver using a single Ethernet cable.

  • Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver
  • Extend video transmission up to 100m from HBT-10 Transmitter to HBT-11 Receiver
  • Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable
  • 1x HBT-11 main unit
  • 1x AC Cord
  • 1x DC 48V power adapter
  • 1x Phoenix Connector to RJ-45
Video/Audio Input HDBaseT RJ-45 x1
Video/Audio Output HDMI x1
DVIP RJ-45 x1 (input)
RS-422/ RS-232 Phoenix terminal. Pitch 3.50mm
Power DC IN: DC 48V
Dimension 131.8 x 85 x 45.2mm
HDBaseT Distance Up to 100mm by Cat.6 cable
