Datavideo BC-50 HD Block Camera
Availability:In stock
Cat No.
31090
SKU
DATA-BC50
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£805.10
£670.92
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

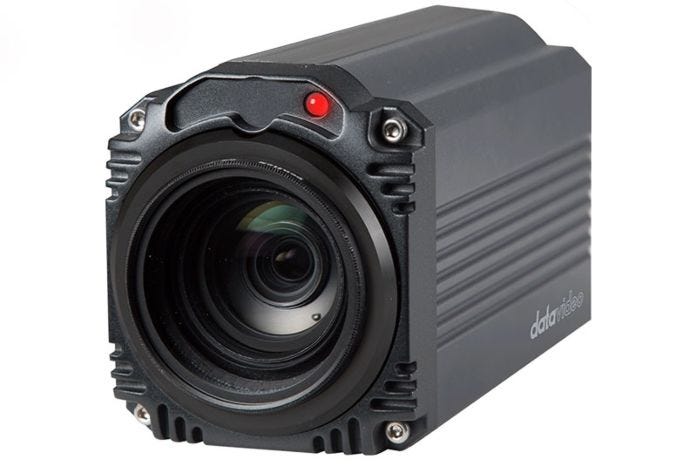

Datavideo BC-50 HD Block Camera
The BC-50 is a cost-effective block camera with 20x optical and 16x digital zoom and supports PoE Technology.
The video output is 3G/HD-SDI and it also supports VISCA/Pelco-D/Pelco-C protocols for control via RS-485.
The BC-50 can encode into H.265, H.264 and MJPEG. It fully supports RTSP and RTMP protocols, making it easy to stream to popular platforms such as Youtube, Facebook Live as well as hardware and software decoders.
The BC-50 Block Camera is a small HD camera with a sturdy and durable metal case which can be used in different types of environments.
Key Features:
- Full HD Block Camera
- 1080P Full HD resolution
- 20x optical zoom with a maximum aperture of F1.8.
- The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control
- Support PoE Technology for remote power
- H.264/H.265/Motion-JPEG compression through RJ-45 connection
- Stream to popular platforms such as Youtube & Facebook live.
- Regular 3G SDI output for uncompressed video up to 1080P
- Controllable by VISCE/Pelco-C/Pelco-D
- Tally lights for broadcast level applications
- The camera is only 6.4 inch long facilitating setup in all environments.
- Cold shoe mount for connecting an external LED light or monitor
- Full HD Block Camera
- 1080P Full HD resolution
- 20x optical zoom with a maximum aperture of F1.8.
- Support PoE Technology for remote power
- H.264/H.265/Motion-JPEG compression through RJ-45 connection
- Stream to popular platforms such as Youtube & Facebook live.
- 1x BC-50 main unit
- 1x DC 12V power adaptor
| Model Name | BC-50 |
|---|---|
| Product Name | IP Block Camera |
| Video Format |
1080p 60/50/30/25 |
| Image Sensor |
1/2.7" progressive scan CMOS sensor |
| Effective Pixels (approx.) |
2.07 Mega pixels |
| Min. Illumination |
0.05 Lux @ (F1.8, AGC ON) |
| Electronic Shutter |
1/30s ~ 1/10000s |
| Zoom Ratio |
20x Optical zoom ; 16x Digital zoom |
| Gamma Control |
Yes |
| Iris Control |
Auto/Manual |
| Digital Noise Reductions |
2D & 3D |
| On-Screen Display (OSD) |
English, Simplified Chinese, Traditional Chinese |
| White Balance |
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, |
| AGC / Gain Control |
Auto / Manual (0 to 28 step) |
| Mirror / Flip Image |
Yes |
| Focus Mode |
Auto / Manual |
| Panning/Tilting Range |
N/A |
| Panning/Tilting Speed |
N/A |
| Preset |
N/A |
| Field of View (Horizontal, Wide) |
Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation |
Day & Night function |
| Video Output |
3G/HD-SDI x1 |
| Tally LED |
Dual colour (Red, Green) |
| Filter |
M52.0 x 0.75 Thread with UV Protection |
| RoHS |
Compliant |
| Remote Control Interface and Transmit Distance |
RS-485: Transmit up to 1200m |
| F/W Update |
Ethernet |
| IR Control |
N/A |
| Camera Control Unit |
N/A |
| Accessories |
---- |
| Colour |
Dark blue |
