MagNum Dual Channel Wireless Lens Control System from Chrosziel

The MN-200 MagNum Dual Channel Wireless Lens Control System from Chrosziel combines a receiver and a handheld transmitter unit for remote control of focus, iris, and camera record start/stop. The dual channel system operates at either the 2.4GHz or 430MHz frequency bands, offering five selectable channels in the 430 MHz band, and eleven channels in the 2.4GHz frequency band for interference-free operation. The receiver has ports that accept optional lens control cables, camera start/stop cables, and power cables. The system is compatible with optional lens motors, as well as wired analog zoom controls.

The hand unit features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Focus marks can be made on the marking disc, with two freely adjustable end stops also available. In addition to the focus wheel, the hand unit has a slide control for adjusting camera iris with extendable aluminum iris scales and adjustable end stops. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands, or even attach monitors. It is powered using Sony NP-FM50 type batteries.

Included with the MN-200 system is a Sony NP-FM50 type battery, battery charger, padded hand strap, padded neck strap, and two antennas for 430 MHz-band use.

• Compact-sized transmitter and receiver
• Dual-band system offering five channels in the 430 MHz frequency band, and eleven channels in the 2.4GHz frequency band
• Spectrum analyzer for identifying the best transmission channel
• Ergonomically designed handgrip and finger rest
• Symmetrical design for left- or right-handed users
• Menu-guided intuitive handling through membrane keys and color OLED display
• Four freely assignable hotkeys
• Optional lens calibration through receiver
• Hand wheel with adjustable fluid dampening
• Two freely adjustable end stops on the hand wheel
• Mechanical lock in the hand wheel
• Magnifier function for "near" and "remote", allowing to spread the range around the nearest or the indefinite lens setting without losing the option to move to the other end stop
• Spreading of any lens range at one turn of the hand wheel
• Hermetically sealed non-contact slide control for setting iris
• Exchangeable iris scales made of aluminum
• Two adjustable end stops for the slider of the iris control
• Electronic "Hold" to capture settings and keep them
• Indicator LED for all functions on the receiver
• Record/Start/Stop signal for the camera
• The same combi-socket can be used for connecting the cable of an analog zoom control
• Internal booster to amplify motor power up to 30 volts
• Socket for gooseneck lamp
• Serial interface
• Adjustable motor power
• USB port
• Battery level indicator for camera and hand unit (transmitter)
• Five 1/4"-20 threads on the hand unit (transmitter)
• Rechargeable Sony NP-FM50 lithium-ion battery and charger included
• Padded hand- and neck-strap
• Two MHz band antennas

Key Features:

• Receiver and Handheld Transmitter
• Remote Focus, Iris, and Record Control
• 2.4GHz and 430MHz Frequency Bands
• Accepts Wired Analog Zoom Controls
• Fluid Dampened Hand Wheel with End Stops
• Iris Slide with End Stops
• Adjustable Motor Power
• Battery and Charger Included
• Padded Hand and Neck Straps

• Receiver and Handheld Transmitter
• Remote Focus, Iris, and Record Control
• 2.4GHz and 430MHz Frequency Bands
• Accepts Wired Analog Zoom Controls
• Fluid Dampened Hand Wheel with End Stops
• Iris Slide with End Stops
• Adjustable Motor Power
• Battery and Charger Included
• Padded Hand and Neck Straps

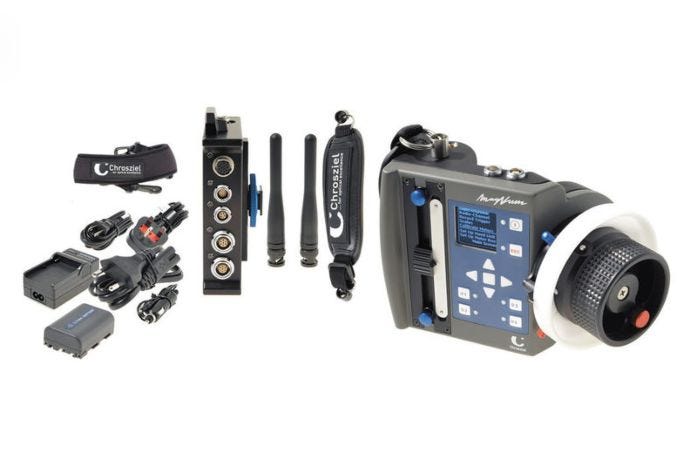

• MN-200T Operating Unit / Transmitter
• MN-200R Motor Control Unit / Receiver
• 2 x Antennas
• MN-BAT MagNum Remote Control Battery
• MN-CH MagNum Battery Charger
• Magnum Hand Strap
• Padded Neck Strap for Lens Control Transmitters (Black)
