Chrosziel MN-150 MagNum Extendable Wireless Lens Control System

MagNum 150 Extendable Wireless Lens Control System from Chrosziel

The MN-150 MagNum Extendable Wireless Lens Control System from Chrosziel combines a receiver and a handheld transmitter unit for remote control of focus and camera record start/stop. The single channel system operates at either the 2.4GHz or 430MHz frequency bands, offering five selectable channels in the 430 MHz band, and eleven channels in the 2.4GHz frequency band for interference-free operation. The receiver has ports that accept optional lens control cables, camera start/stop cables, and power cables. The system is compatible with optional motors with gears. An optional upgrade kit is available to convert the MN-150T single-channel transmitter to a MN-200T dual-channel transmitter, with expanded features such as remote iris control.

The hand unit features an ergonomically shaped handgrip and finger rest for comfortable operation, menu-guided intuitive handling through membrane keys, and a color OLED display. For focus control, a fluid-dampened hand wheel is provided, which spreads the focus range of any lens to one full turn of the wheel. Focus marks can be made on the marking disc, with two freely adjustable end stops also available. Five 1/4"-20 mounting holes on the hand unit let you mount it to tripods stands, or even attach monitors. It is powered using Sony NP-FM50 type batteries. Included with the MN-150 system is a Sony NP-FM50 type battery, battery charger, and two antennas for 430 MHz-band use.

• Compact-sized transmitter and receiver
• Dual-band system offering five channels in the 430 MHz frequency band, and eleven channels in the 2.4GHz frequency band
• Spectrum analyzer for identifying the best transmission channel
• Ergonomically designed handgrip and finger rest
• Symmetrical design for left- or right-handed users
• Menu-guided intuitive handling through membrane keys and color OLED display
• Four freely assignable hotkeys
• Optional lens calibration through receiver
• Fluid dampened hand wheel
• Two freely adjustable end stops on the hand wheel
• Magnifier function for "near" and "remote", allowing to spread the range around the nearest or the indefinite lens setting without losing the option to move to the other end stop
• Spreading of any lens range at one turn of the hand wheel
• Electronic "Hold" to capture settings and keep them
• Indicator LED for all functions on the receiver
• Record/Start/Stop signal for the camera
• Adjustable motor power
• USB port
• Battery level indicator for camera and hand unit (transmitter)
• Five 1/4"-20 threads on the hand unit (transmitter)
• Rechargeable Sony NP-FM50 lithium-ion battery and charger included
• Two MHz band antennas
• Optional upgrade kit to convert the single-channel MN-150T transmitter to a dual-channel MN-200T transmitter

Key Features:

• Receiver and Handheld Transmitter
• Remote Focus and Record Control
• 2.4GHz and 430MHz Frequency Bands
• Fluid-Dampened Hand Wheel with End Stops
• Adjustable Motor Power
• Ergonomic Handgrip and Finger Rest
• Four Assignable Hotkeys on Transmitter
• Color OLED Display
• Battery and Charger Included
• Optional Dual Channel Upgrade Kit

• Receiver and Handheld Transmitter
• Remote Focus and Record Control
• 2.4GHz and 430MHz Frequency Bands
• Fluid-Dampened Hand Wheel with End Stops
• Adjustable Motor Power
• Ergonomic Handgrip and Finger Rest
• Four Assignable Hotkeys on Transmitter
• Color OLED Display
• Battery and Charger Included
• Optional Dual Channel Upgrade Kit

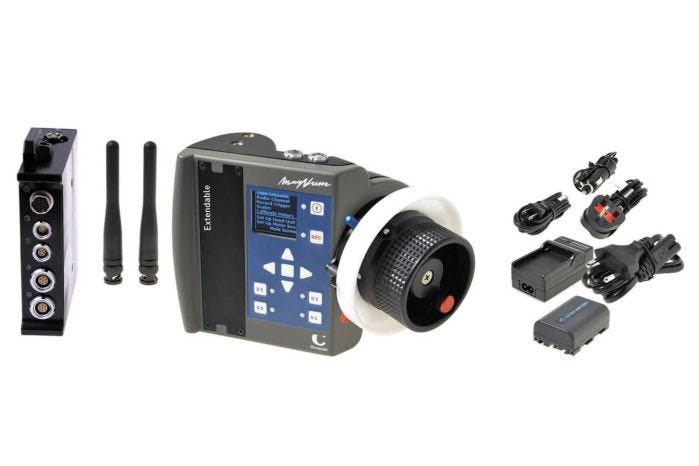

Chrosziel MN-150 MagNum Extendable Wireless Lens Control System

• MN-150T Operating Unit / Transmitter
• MN-200R Motor Control Unit / Receiver
• 2 x Antennas
• MN-BAT MagNum Remote Control Battery
• MN-CH MagNum Battery Charger

Channels: 1
Battery: Sony NP-FM50 type lithium-ion
Receiver: 2.4 GHz
Antennas: 2 x BNC (FANT), 434 MHz
Weight:

• Transmitter: 1.27 lb (577 kg)
• Receiver: 0.58 lb (262 g)
