Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver
Availability:In stock
Cat No.
24789
SKU
MN-200R
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£2,632.80
£2,194.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

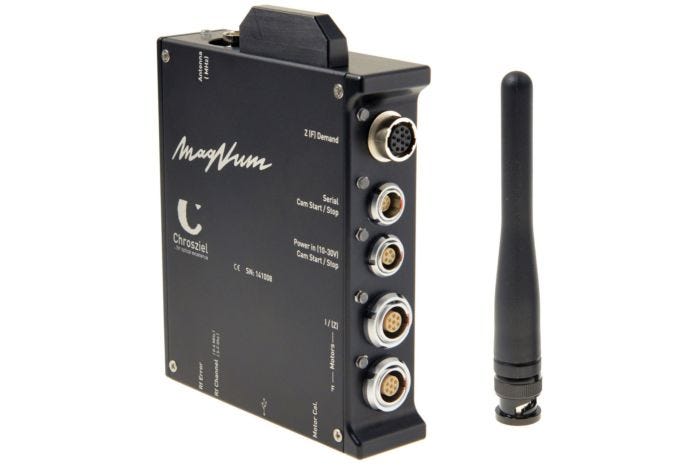

Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver
2-Channel Wireless Lens Control Receiver from Chrosziel
With dual outputs, the Chrozsiel MagNum 200 Dual-Channel Wireless Lens Control Receiver can drive up to two motors that connect via 7-pin LEMO. The receiver is capable of calibrating motors to the lens without the aid of the transmitter. When connected to a camera via the serial output, start/stop can be remotely controlled from the transmitter. The MagNum 200 system can operate on 2.4GHz and 430MHz frequencies for ensuring the greatest possible working distance and reliability. The 2.4GHz antenna is built-in and a BNC 430MHz antenna is included. The the receiver can be used in a wired/studio configuration drive motors with input from ENG demand controls. Using an Aladin extension modules, which are mountable to the receiver body, the MagNum system can control up to four motors in total.
Key Features:
- Wireless Focus/Iris Receiver
- Drives 7-Pin LEMO Digital Motors
- Autonomous Lens Calibration
- 2.4GHz and 430MHz Operation
- BNC Antenna Included
- Expandable to Control Four Motors
- Wireless Focus/Iris Receiver
- Drives 7-Pin LEMO Digital Motors
- Autonomous Lens Calibration
- 2.4GHz and 430MHz Operation
- BNC Antenna Included
- Expandable to Control Four Motors
- Chrosziel MagNum 200 2-Channel Wireless Lens Control Receiver
- Antenna
Channels: 2 (focus and iris), expandable to 3rd zoom channel
Ports:
- 1 x 12-pin Hirose for ENG demands
- 1 x 9-pin LEMO serial port for camera start/stop control
- 1 x 5-pin LEMO 10-30V power input and camera start/stop control
- 2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna
Antennas:
- 1 x Integrated 2.4 GHz
- 1 x BNC 430 MHz
Weight: 0.6 lb / 262 g
