Chrosziel DV Studio Rig Follow Focus 6-Gear Kit

6-Gear Studio DV Rig Follow Focus Kit from Chrosziel

Chrosziel's DV Studio Rig Follow Focus 6-Gear Kit is based around the Chrosziel DV Studio Rig, a 15mm lightweight standard follow focus that is ready to use after attaching the included marking disk and one of the 6 included drive gears. This single-ended follow focus is best used on smaller cameras but will work on compact cinema camera rigs as well.

The focus drive gears included in this kit ensure that this follow focus is compatible with most industry standard cinema and ENG lenses from Zeiss, Fujinon, Zeiss, and other lens brands. This set includes toothed drive gears to interface lenses fitted with Mod 0.8, 0.6, and 0.5 gearings. Additionally, a friction drive is included to actuate focus on DSLR lenses and other lenses without focus gears.

The DV Studio Rig follow focus unit features metal construction, a non-slip rubberized handwheel, Chrosziel's VariLock system with 2 adjustable hard stops, and a horizontal adjustment to properly mate the drive gear to lenses of different diameters. The follow focus attaches to 15mm LWS rods with a metal tie-down clamp.

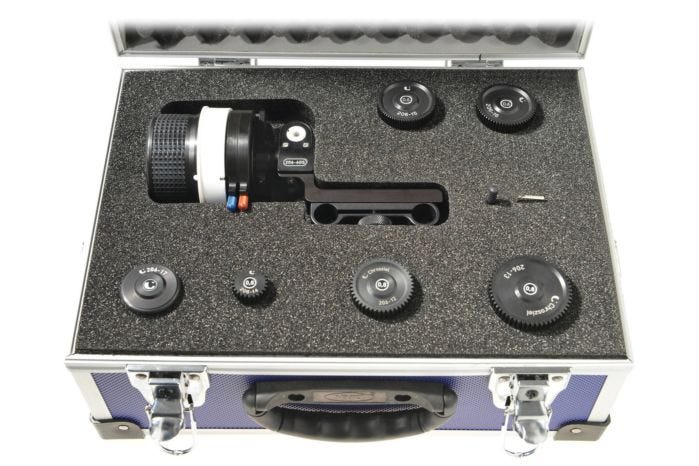

The follow focus and accessories can all be packed neatly into the included hard case for protection during transport. The case features foam cutouts for all the included accessories so you can easily check to make sure everything is present after you strike the set.

DV Studio Rig Plus
Chrosziel's DV Studio Rig Plus is a follow focus with a non-slip padded hand wheel, VariLock with 2 adjustable hard stops, free wheel, and scale for one-side operation. Extended range for lens diameter up to 130mm (measured with gear drive) is not included.

205-02 Handwheel Marking Scale - For DV Follow Focus System
The Chrosziel 205-02 is a handwheel marking scale for DV studio rig/follow focus system. This device is a spare part for a follow focus system; it replaces a damaged or lost handwheel.

206-12 Focus Gear Drive (0.8 Gear Pitch)
The Chrosziel 206-12 is a 0.8 gear pitch focus gear drive for Chrosziel's 206-01S follow focus system. It features standard 0.8 pitch gearing for use with cine-style lenses.

206-13 Zeiss Focus Gear Drive
The Chrosziel 206-13 Zeiss Focus Gear Drive is a 0.8 pitch gear with a 45mm diameter that is designed for using a DV Studio Rig follow focus with Zeiss DigiPrime and cine lenses. It allows for more precise and accurate adjustments when pulling focus.

20614 Sony Lens Drive Gear (Mod 0.8)
The Chrosziel 206-14 is a drive gear for the 206-01S follow focus. The gear is designed specifically for Sony cameras and provides added focus precision in critical focus situations. Its diameter is 20.8mm.

206-15 Canon Lens Drive Gear
The Chrosziel 206-15 Canon Lens Drive Gear is a drive gear for the 206-01S follow focus. It is designed specifically for Canon ENG lenses and provides added focus precision in critical focus situations.

206-16 Focus Gear Drive - for Fujinon Lenses
The Chrosziel 206-16 is a focus gear drive for Fujinon lenses. The mod 0.6 (ø38mm) gear drive allows connectivity between the wheel of the Chrosziel 206-01S DV follow focus and the lens' manual focus teeth.

Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig
The Chrosziel Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig features a soft-rubber surface that compensates for the unevenness of the lens ring. It is suitable for all lenses that do not accept a gear ring, including the Sony SEL18-200 Camera.

Key Features:

• Compatible with 15mm LWS Rods
• VariLock Dual Hard Stops
• 6 Interchangeable Drive Gears Included
• Drive Cinema, ENG, and DSLR Lenses
• Custom Hard Transport Case Included

• Compatible with 15mm LWS Rods
• VariLock Dual Hard Stops
• 6 Interchangeable Drive Gears Included
• Drive Cinema, ENG, and DSLR Lenses
• Custom Hard Transport Case Included

Chrosziel DV Studio Rig Follow Focus 6-Gear Kit

• DV Studio Rig Plus
• 205-02 Handwheel Marking Scale - For DV Follow Focus System
• 205-02 Handwheel Marking Scale - For DV Follow Focus System
• 206-12 Focus Gear Drive (0.8 Gear Pitch)
• 206-13 Zeiss Focus Gear Drive
• 20614 Sony Lens Drive Gear (Mod 0.8)
• 206-15 Canon Lens Drive Gear
• 206-16 Focus Gear Drive - for Fujinon Lenses
• Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig
• Custom Hard Carry Case

206-13 Zeiss Focus Gear Drive
Compatibility: Lenses: Zeiss DigiPrime & Cine Lenses
Diameter: 46mm
Pitch :0.8
No. of drive gear teeth: 56

Focus Drive with Friction Gear (Ø 34mm) for DV StudioRig
Diameter: 1.34" (34.00 mm)
