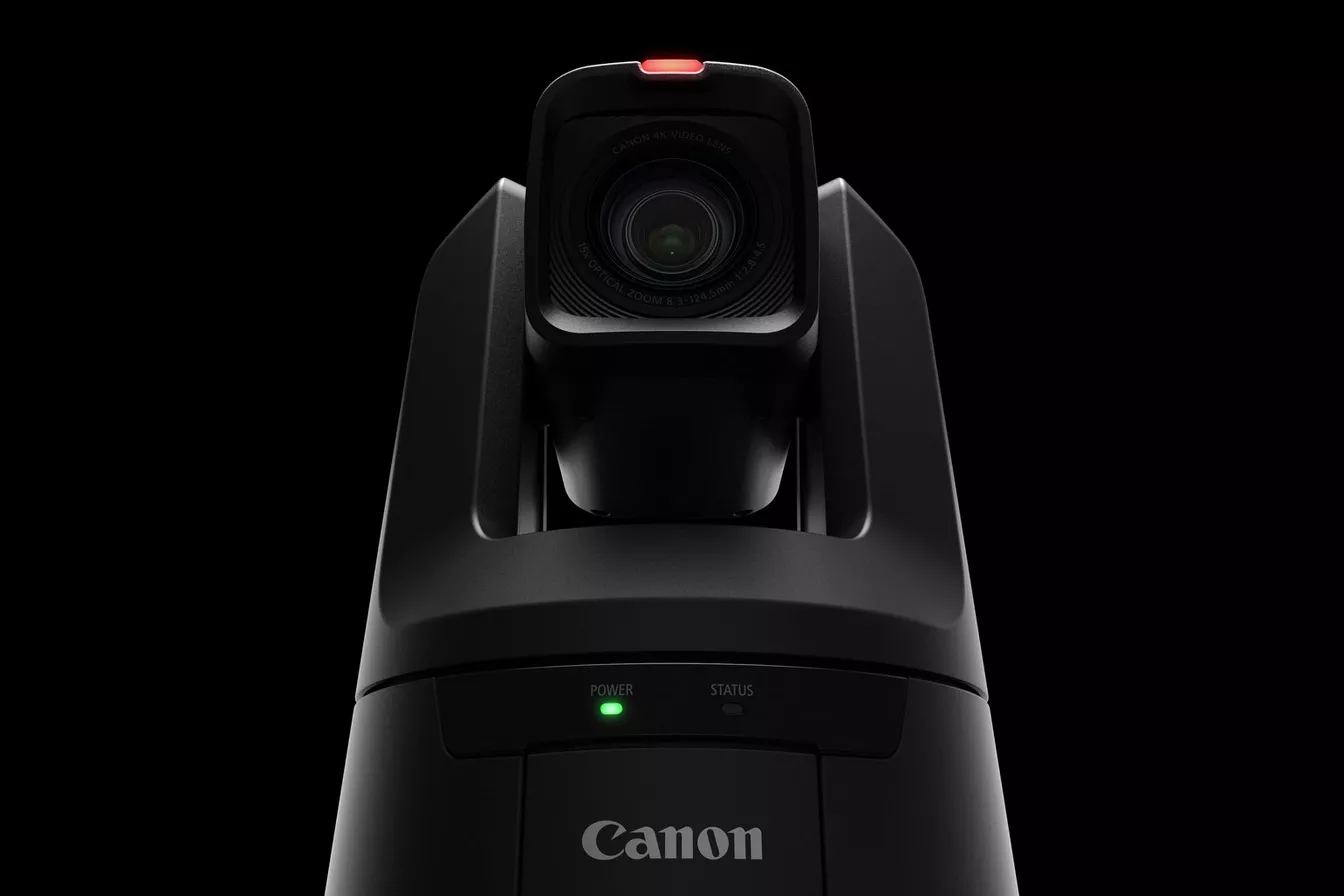

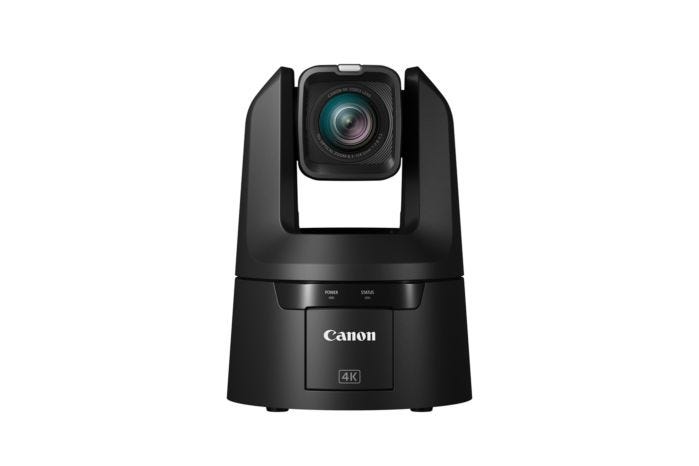

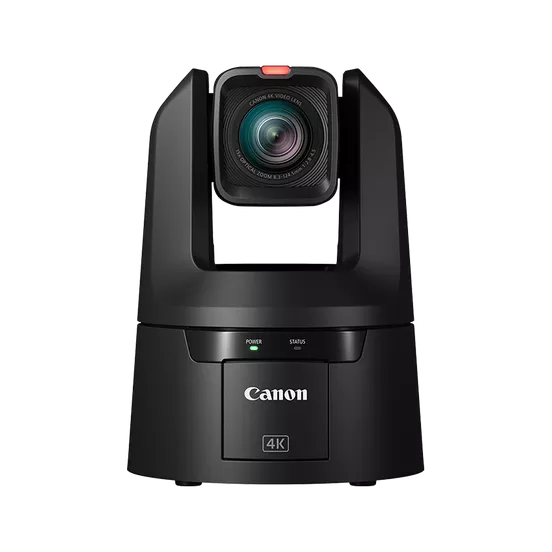

Canon CR-N500 1.0" Sensor 4K PTZ Camera Satin Black
Availability:In stock
Cat No.
44129
SKU
4839C007AA
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£4,699.00
£3,915.83
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Auto Tracking Lite is installed to the camera by new Firmware and pre-installed from July 2024. Auto Tracking App RA-AT001 with further functionality is available via a paid licence.
Product Information
PTZ CAMERA
CANON CR-N500
With a 15x optical zoom and 4K UHD shooting capabilities with the option for intelligent Auto Tracking*, the CR-N500 offers precise control and seamless IP streaming, even in low light conditions.
CLOSE THE DISTANCE WITH UNRIVALLED CLARITY
A dynamic PTZ camera aimed at productions and video streaming, the CR-N500 boasts a 1.0-type 4K UHD sensor and Dual Pixel CMOS AF, plus 15x optical zoom, smooth pan and tilt as well as image stabilisation to capture content in superb detail and the ability to automate your productions using Auto Tracking and Auto Loop functions*
*Auto Tracking and Auto Loop functions available via paid licence.
Main features of CR-N500
With a 15x optical zoom and 4K UHD shooting capabilities, the CR-N500 offers precise control and seamless IP streaming, even in low light conditions.
RESOLUTION
Powerful 4K Imagery
OPTICAL ZOOM
Stabilised 15x Optical Zoom
INTEGRATION
IP Streaming and Control
AUTOFOCUS
Dual Pixel CMOS AF
PROCESSOR
1.0-type CMOS sensor and DIGIC DV6
CONNECTIVITY
Extensive Connectors

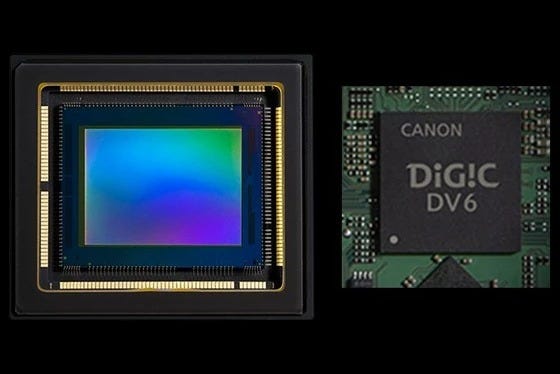

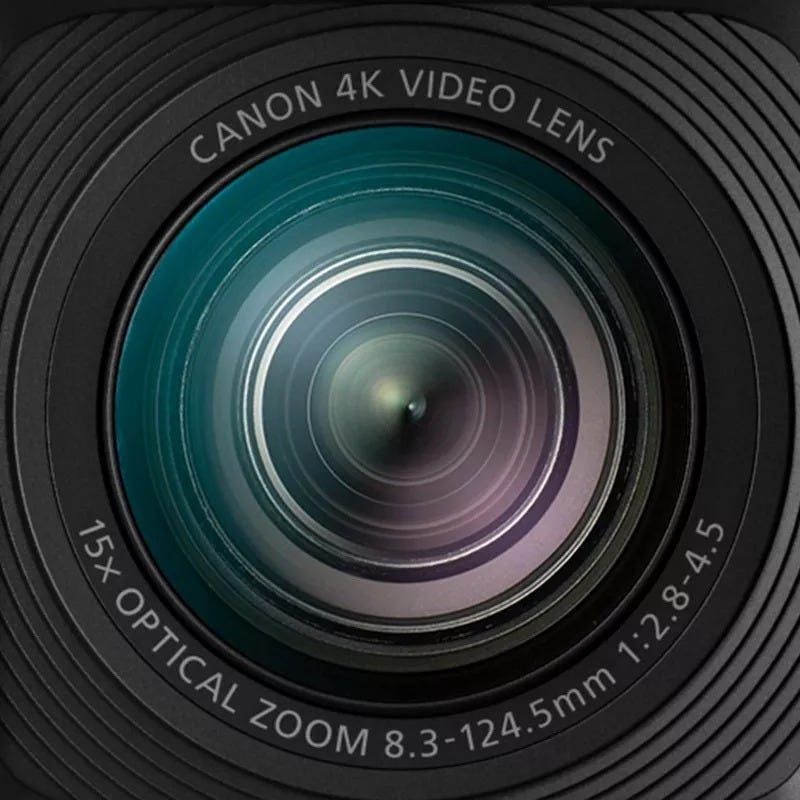

Powerful 4K Imagery
The 1.0-type CMOS Sensor and DIGIC DV6 processor work in unison to deliver exceptional 4K UHD/30p image quality as well as upscaled Full HD/60p images thanks to over sampled HD processing.

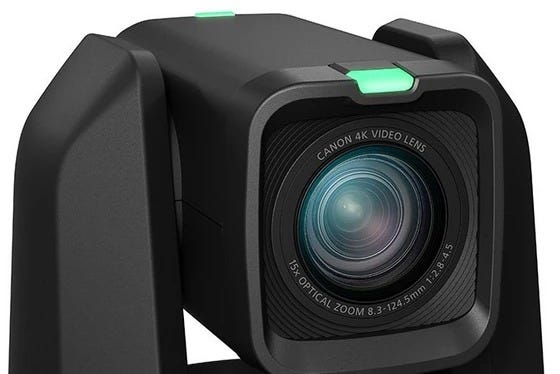

Stabilised 15x Optical Zoom to get closer
Canon’s advanced 4K optics make sure greater detail is captured, and flexibility assured, with a 15x optical zoom (25.5-382.5mm 35mm equivalent), providing a wide angle to telephoto field of view. Canon’s advanced four-axis image stabilisation ensures high quality image capture.

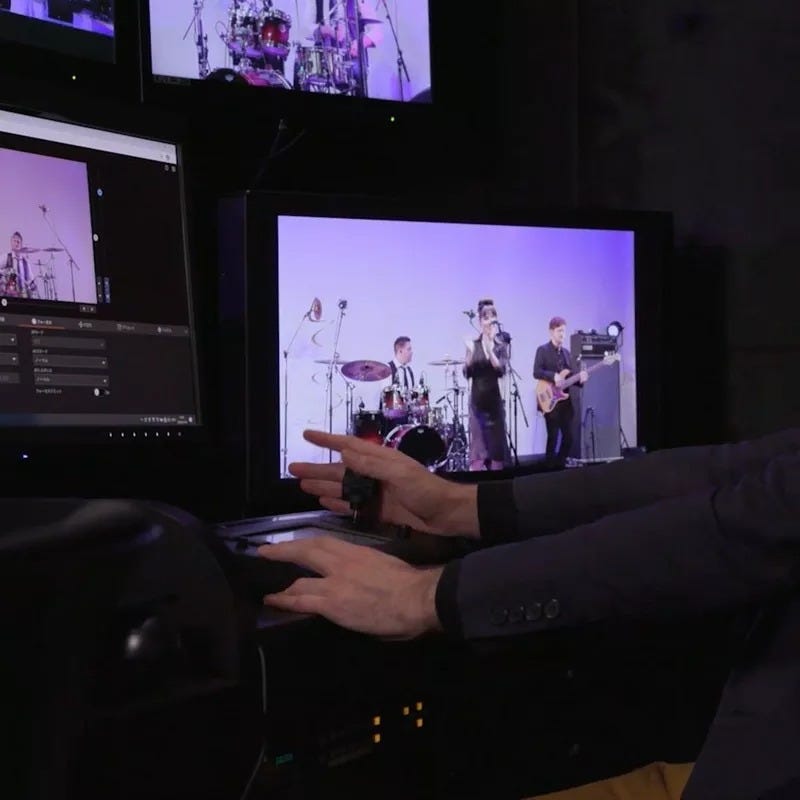

IP Streaming and Control to transform your production
A comprehensive range of IP control and streaming protocols up to 4K UHD 30p (such as NDI|HX*, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol) are included, making the CR-N500 an ideal solution for new or existing systems.
* NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
Excellent imagery in low light
The CR-N500 produces high quality imagery with low noise, even with a minimum illumination of 1.5 lux. The large 1.0-type CMOS sensor and the DIGIC DV6 processor ensure the image quality retains its integrity even in the most challenging of lighting conditions.

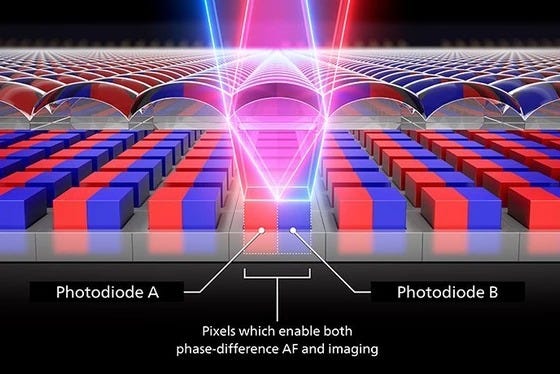

Dual Pixel CMOS AF keeps it sharp
The CR-N500 features Canon’s renowned Dual Pixel CMOS Auto Focus system which provides extremely quick and accurate focus via multiple modes.
-
Dual Pixel Focus Guide
Provides a visual representation whether the subject is in focus when focus is manually operated.
-
Face Priority/ Face only AF
Detects faces automatically and tracks the focus of the selected subject.
-
Touch AF
Working with the Remote Camera Control Application software, users can select an object they would specifically like to focus on.

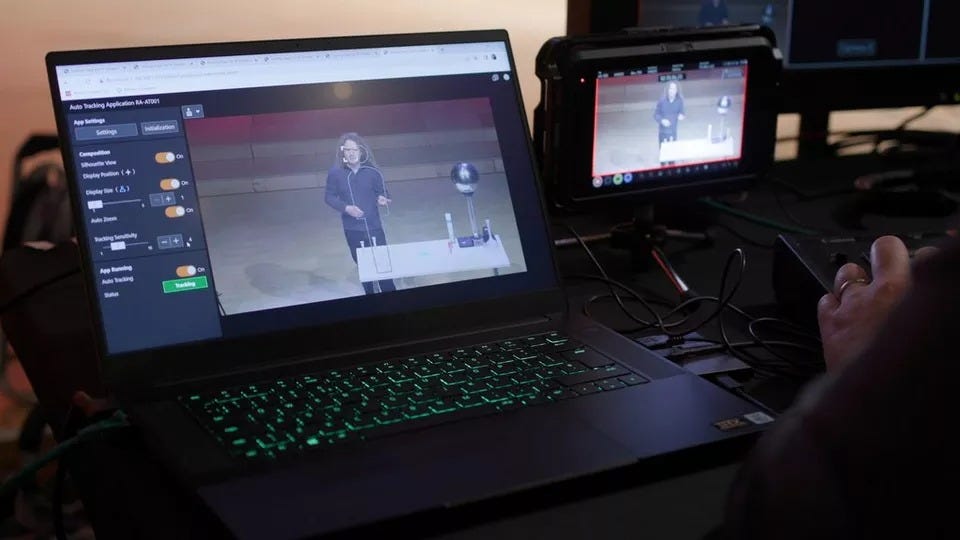

Accurate 4K Auto Tracking*
Unlock the potential to track the main speaker with face/header detection as they move around the stage, automatically. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.
*Requires paid licence
Intelligent Auto Loop*
Programme repeated camera pan, tilt and zoom movements to track repeated live action, consistently and accurately thanks to Canon’s advanced drive mechanism. Experience the flexibility of programming movements with the ability to initialise a loop back and forth, meaning no camera operator is required. Five automatic movement routes can be registered and are easy to create or customise thanks to an easy setting UI.
*Requires paid licence

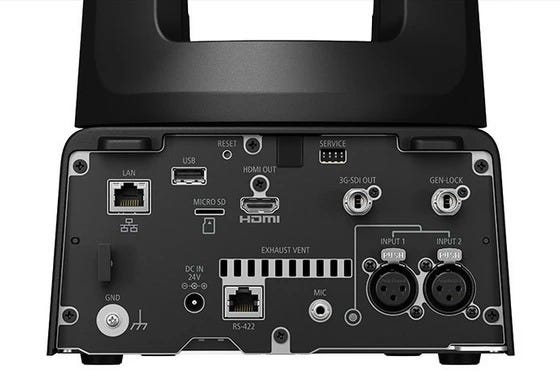

Extensive Connectors for ease of use
The CR-N500 features a host of connections to ensure the ultimate flexibility, including a 3G-SDI video output, full-sized HDMI port (supporting 4K UHD 30p at 4:2:2 10-bit), professional XLR audio inputs, as well as a PoE+ LAN port to allow for easy system integration.

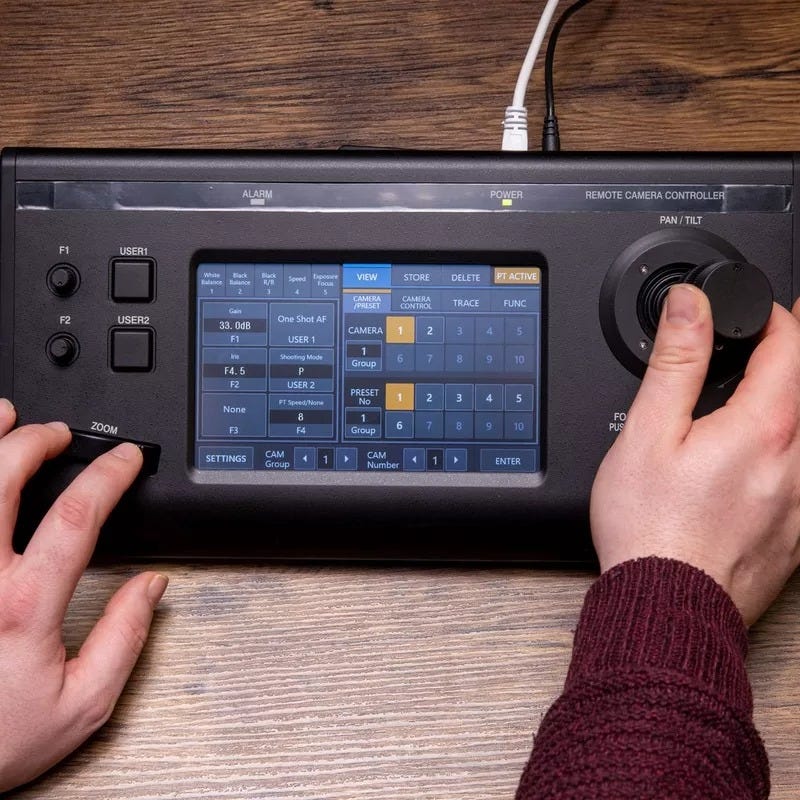

Smooth and precise control
The CR-N500 is equipped with a high-precision drive mechanism enabling fine adjustments of the Pan and Tilt movement and speed ensuring the perfect shot. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, the CR-N500 is also compatible with selected third-party controllers.
HDR Imagery, with versatile image quality adjustments
Achieve stunning HDR imagery with Canon Log 3 and Wide Dynamic Range Support. Both technologies ensure the best HDR imagery can be achieved for applications where postproduction or a quick turnaround is required. The in-built image adjustment settings also ensure flexible and bespoke imagery to colour match with other cameras.
Seamless High Quality 4K Video Streaming

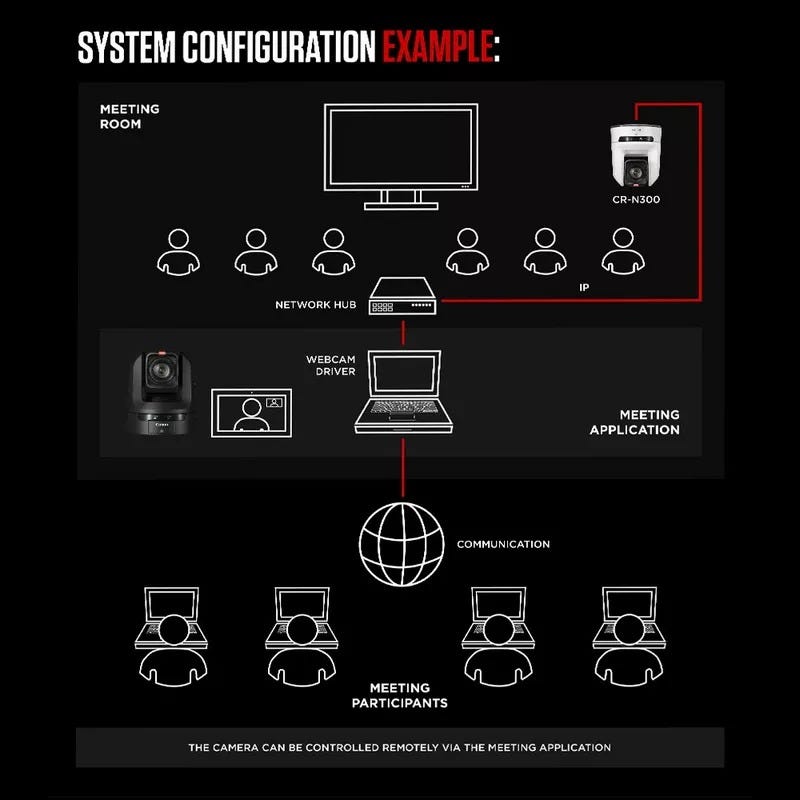

With the free of charge* Webcam Driver, you can enjoy seamless video streaming in up to 4K 30p with maximum 5 selected Canon PTZ Cameras** via a simple ethernet connection. Compatible with most conferencing platforms and applications which require UVC, this Windows OS software is a virtual USB driver which allows an easy video streaming integration, ideal for video conferencing and online lectures.
* A third party license may be required
** Applicable only to the CR-N500, CR-N300 and CR-X300
Canon CR-N500 1.0" Sensor 4K PTZ Camera Satin Black
Close The Distance With Unrivalled Clarity
The Canon CR-N500 is a 4K UHD PTZ camera that offers a variety of features and benefits for a wide range of applications. It features a 1.0-type CMOS sensor, Dual Pixel CMOS AF, and a 15x optical zoom lens, making it capable of capturing stunning images in a variety of conditions. The CR-N500 also supports a variety of IP streaming and control protocols, making it easy to integrate into existing systems.
Powerful 4K imagery
The 1.0-type CMOS Sensor and DIGIC DV6 processor work in unison to deliver exceptional 4K UHD/30p image quality as well as upscaled Full HD/60p images thanks to over sampled HD processing.
Stabilised 15x Optical Zoom to get Closer
Canon’s advanced 4K optics make sure greater detail is captured, and flexibility assured, with a 15x optical zoom (25.5-382.5mm 35mm equivalent), providing a wide angle to telephoto field of view. Canon’s advanced four-axis image stabilisation ensures high quality image capture.
IP Streaming and Control to transform your productionA comprehensive range of IP control and streaming protocols1 up to 4K UHD 30p such as NDI | HX2, RTMP, RTP/ RTSP, RTMPS and Canon’s XC Protocol) are included, making the CR-N500 an ideal solution for new or existing systems.
Excellent Imagery in Low Light
The CR-N500 produces high quality imagery with low noise, even with a minimum illumination of 1.5 lux. The large 1.0- type CMOS sensor and the DIGIC DV6 processor ensure the image quality retains its integrity even in the most challenging of lighting conditions.
Dual Pixel CMOS AF Keeps it Sharp
The CR-N500 features Canon’s renowned Dual Pixel CMOS Auto Focus system which provides extremely quick and accurate focus via multiple modes.
Extensive Connectors for Ease of Use
The CR-N500 features a host of connections to ensure the ultimate flexibility, including a 3G-SDI video output, full-sized HDMI port (supporting 4K UHD 30p at 4:2:2 10-bit), professional XLR audio inputs, as well as a PoE+ LAN port to allow for easy system integration.
Smooth and Precise Control
The CR-N500 is equipped with a high-precision drive mechanism enabling fine adjustments of the Pan and Tilt movement and speed ensuring the perfect shot. Compatible with the RC-IP100 and REMOTE CAMERA CONTROL APPLICATION controllers, the CR-N500 is also compatible with selected third-party controllers.
HDR Imagery, with versatile image quality adjustmentsAchieve stunning HDR imagery with Canon Log 3 and Wide Dynamic Range Support. Both technologies ensure the best HDR imagery can be achieved for applications where postproduction or a quick turnaround is required. The in-built image adjustment settings also ensure flexible and bespoke imagery to colour match with other cameras.
- 4K UHD - 1.0-type CMOS sensor for stunning quality
- 15x optical zoom - From wide-angle to telephoto
- DIGIC DV6 Processor - Powerful image processing which guarantees fantastic results.
- Support of major IP streaming and control protocols - RTMP, NDI | HX*, RTP/RTSP, RTMPS and Canon’s New Protocol
- Dual Pixel AF - For smooth, fast and accurate focusing
- Optical Image Stabilizer - Exceptional stability for smooth PTZ operation
| Model Type | Indoor PTZ mid-high |
|---|---|
| Colour | Satin black/Titanium white |
| Camera | |
| Image Sensor | Type 1.0 (1.0 in.) single-plate CMOS sensor |
| Effective Pixels | approx. 8.29 megapixels (3840 x 2160) |
| Lens | f=8.3 -124.5 mm, F/2.8 -4.5, 15x optical zoom, 9-bladed iris diaphragm |
| Optical Zoom | 15x optical zoom |
| Digital Zoom | 20x digital zoom |
| Focal Length | f=8.3 -124.5 mm, F/2.8 -4.5, 35mm equivalent focal length: approx. 25.5 (W) -382.5 mm (T) |
| Angle of View | Horizontal: 73.0 (W) -5.7°(T) Vertical: 45.2°(W) -3.2°(T) |
| Minimum Subject Illumination | 3840 ×2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB) 1920 ×1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB) |
| Shutter Speed | 1/3 -1/2000 sec. (specific values depend on the frame frequency and frame rate) |
| Iris | Manual/Automatic aperture |
| Gain | '-6.0 db～33.0 db |
| ND Filter | Built-in (Off, 1/4, 1/16, 1/64), motor operated |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K -15,000 K), Manual |
| Focus | Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF type: Dual Pixel CMOS AF, Contrast AF |
| Gamma | Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3 |
| Pan and Tilt | Pan operation range: Horizontal ±170° Pan operation speed: 0.1°-100°/sec. Tilt operation range: Vertical -30°-+90° Tilt operation speed: 0.1°-100°/sec. |
| Server | |
| Video Output Format | |
| SDI | 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) -Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) -When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| HDMI | 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) -Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) -When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI. |
| IP | 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) -If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. -A frame rate that exceeds the frame frequency cannot be selected. -JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps. |
| USB | - |
| Protocol | XC (Canon's original), RTSP/RTP, NDI|HX*, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP) *NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries |
| Preset | Number of presets: Max. 100 (including home position) |
| Interface | |
| Communication Control | LAN, Wi-Fi, Serial, IR |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| 3G-SDI Out Terminal | BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC) |
| GEN-LOCK Terminal | BNC jack x 1, 1.0 Vp-p/75 Ω, input only |
| HDMI Out Terminal | HDMI connector x 1, output only |
| RS-422 Terminal | RJ45 connector x 1 |
| INPUT 1/INPUT 2 Terminals | XLR/Audio Input (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu(Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu(Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ) |
| MIC Terminal | ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV(Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV(Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ) |
| USB Terminal | Type-A (USB 2.0) x 1 (future expansion) |
| Others | |
| Operating Environment | Temperature 0°C -+40°C (+32°F -+104°F) Humidity 10% -90% (without condensation) |
| Power Supply | PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) -PoE cannot be used External power source: 24 V DC (using included AC adaptor) |
| Power Consumption | PoE+ Input: Approx. 19.6 W* max. (body only) DC Input: Approx. 18.6 W max. (body only) * Class 4 (25.5 W required) for power supply devices |
| Dimensions (W x H x D) | Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions) |
| Weight | Approx. 4.1 kg (9.04 lb.) (body only) |
