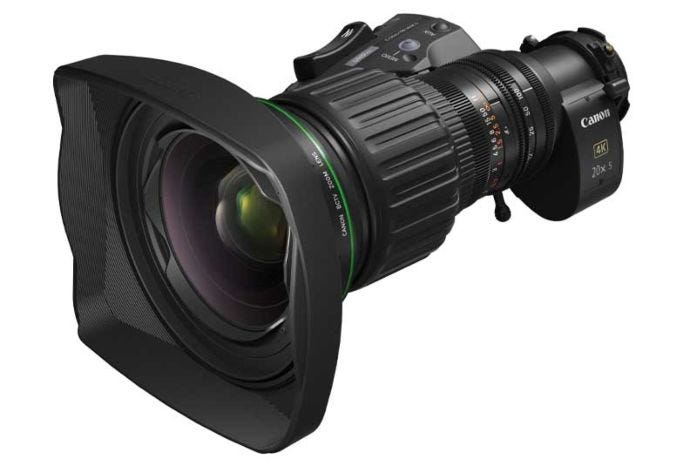

Canon CJ20ex5B IASE S 4K Broadcast Zoom Lens

CJ20ex5B IASE S 4K Broadcast Zoom Lens

A flexible hybrid concept 20x 4K broadcast zoom lens, covering 5mm wide angle up to 100mm.
A 2-in-1 broadcast lens with a powerful 20x zoom range, and 5mm wide-angle. The CJ20ex5B IASES benefits from Canon’s optical 4K performance with advanced operation, is suitable for a wide range of broadcast applications, and completes Canon’s 4K broadcast lens line-up.

Wide angle with a high zoom ratio
A hybrid concept that offers 5.0mm wide angle to 100mm telephoto (10-200mm with 2x extender), for a wide variety of broadcast applications.

Exceptional quality optical performance
With 4K resolution from the centre of the image to the outer edges and advanced lens coating, the lens virtually removes chromatic aberration, ghosting & flare, and provides stunning UHDxs optical quality.

Compatible with virtual systems
3x 20-pin connectors enable readout of high accuracy positional information for focus, zoom and iris control. A high resolution 16-bit encoder ensures accurate positional information detection, for easy calibration when matching actual and virtual images.

Compact and lightweight
Even with its high specification and performance the CJ20ex5B IASE S upholds the traditional compact and lightweight design seen across our ENG lens line-up.

Canon’s broad 4K line-up
With the CJ20ex5BIASE S Canon now offers to the industry the widest variety of 4K broadcast lenses including 11 portable options and 6 box-type lenses.

Compact, Lightweight and Reliable
The EOS C70 features a new design, including a multi-function grip with 3 customisable dials and multi-directional joystick. The camera is built to be a tough and lightweight workhorse, thanks to the carbon fibre polycarbonate body. The compact design also enables it to be comfortably rigged to drones, gimbals, hand-held or shoulder rigs, as well as FPV helmets and vehicles.

A dual gain sensor that delivers more
On the DGO sensor, each pixel will read out the image with two different amplification levels, one high and one low, which will then be combined to make a single image. The higher amplification read-out is optimized to capture clean details in darker areas, while the lower amplification read out is optimized to capture the details in brighter areas. Hence, when combined together at pixel-level accuracy,the details and the qualities on both the highlight, as well as the low light areas will be maintained and enhanced which enables the camera to achieve an impressive higher dynamic range of up to 16+ stops.

Key Specifications:

• UHDxs class 4K optical quality
• Hybrid Concept wide & telephoto5.0-100mm zoom range (10-200mm with optical extender)
• f/1.8-f/2.95 maximum aperture
• Built-in 2x extender
• Enhanced digital drive unit
• Virtual systems compatibility via 16-bit encoding

• UHDxs class 4K optical quality
• Hybrid Concept wide & telephoto
• 5.0-100mm zoom range (10-200mm with optical extender)
• f/1.8-f/2.95 maximum aperture

• Lens main unit
• Hood unit
• Lens cap
• Dust cap
• Hood cap
• Instruction manual/CD-ROM
