Product Information

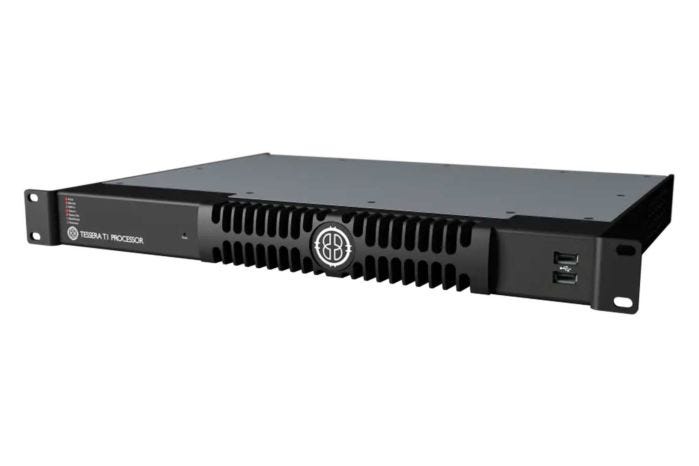

Brompton Technology Tessera T1
The Tessera T1 LED Processor is the best choice for smaller creative shows that don’t need to output a huge amount of pixels.
It offers you maximum flexibility over fixture layout and input processing – perfect for shows using LED video walls with coarser pitch panels and strips/tiles.
The Tessera T1’s DVI-D input can be scaled, clipped and colour adjusted to perfectly map the content to the fixtures.
Dark Magic
Improves the appearance of panels operating at less than their maximum brightness by reducing banding and increasing detail in dark areas.
OSCA
On-Screen Colour Adjustment (OSCA) enables a special user interface to appear on the LED screen itself, allowing for quick, easy module and seam selection.
Tessera Software
Tessera Management Software gives you full control over your Tessera System, with an array of powerful, easy-to-use features for an impeccable show every time.
Fixture rotation & sub-fixture mapping
Tessera Management Software makes setting up your LED fixtures easy, regardless of number, size or cabling order, offering increased flexibility and much greater creative control over fixtures of any pixel pitch.
You can place fixtures and sub-fixtures anywhere on the full HD canvas, and rotate them to any angle. The Tessera processing system uniquely supports multiple sub-fixtures from a single R2 receiver card, making mapping creative shows with LED strips and small tiles easier than ever.
DMX control
For seamless integration with a lighting control system, the Tessera T1 LED processor offers live control via DMX or eDMX protocols (e.g. Art-Net).
You can configure your channels to control everything from colour settings to fixture group positioning to screen intensity. To make it even easier, the Tessera T1 comes with a number of pre-built profiles with commonly used controls so you can get to work straight away, or power users have the option to fully customise their profiles.
Low Latency Scaler
- The Tessera T1 boasts a very low latency up/down scaler that matches the source to the screen
- No need for an external scaler which reduces overall cost and simplifies your system
- Tessera T1 also offers region-of-interest clipping
| Physical (WxHxL) | Unboxed: 482.6mm (19”) x 44.5mm (1.75”) x 342.9mm (13.5”) Boxed: 570mm (22.4”) x 170mm (6.69”) x 450mm (17.7”) |
| Weight | Unboxed: 3.1Kg (6.8lbs) Boxed: 5.5Kg (12.1lbs) |
| Electrical | Switched autoranging power supply 100 - 240V AC 50Hz - 60Hz 0.4 - 0.2A |
| DVI-D Input | One DVI-D input Up to 1920 x 1080 @ 60Hz Non-standard resolution support for: 1600 x 1200, 2880 x 720, 720 x 2880, 1080 x 1920 Support for RGB and YCbCr colour spaces HDMI support with suitable adapter No HDCP support |
| Output | One 1G Tessera output port capable of a nominal 525K pixels at 8 bits per colour, 60Hz frame rate |
| Genlock | Sync to source Processors genlock from source right through to panel refresh Frame rates from 23.98 to 60Hz |
| Latency | 3 frames end-to-end system latency (all features) 2 frames end-to-end system latency in low-latency mode (restricted features) |
| Tessera Management Software | Local management using monitor, keyboard and mouse connected directly to processor Monitors from 1024x768 up to 1920x1080 DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter |
| Tessera Remote | Available free for Windows PC and Mac OS Remote management using Windows PC or Mac connected to processor via Ethernet network One Gigabit Ethernet network port |
| Remote Control | DMX-512A on 5-pin XLR in and thru IP Control |
| I/O | Two USB 2.0 ports on front Two USB 2.0 ports on rear One DisplayPort (DP++) monitor output |
| Front Panel | Seven status LEDs Power LED |
| Warranty | Two years |
| Certifications | CE, ETL/cETL |
