Brompton Technology Tessera S4
Availability:In stock
Cat No.
115976
SKU
Brompton-Tessera-S4
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

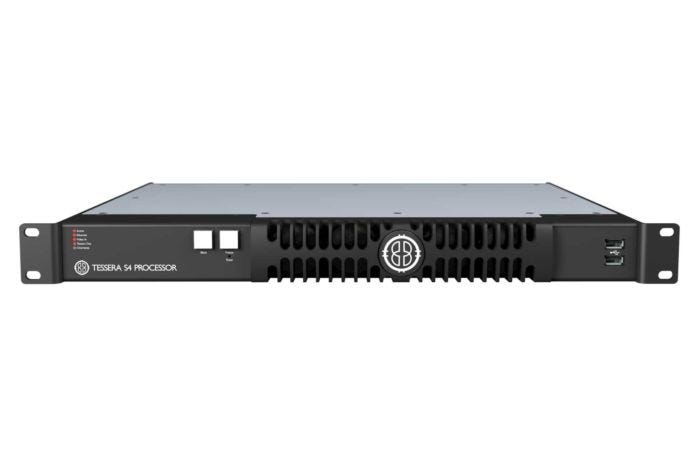

Brompton Technology Tessera S4
Reliable, quality LED processing for optimal results at great value.
Simplified organisation, easy troubleshooting
Each string of fixtures is automatically assigned a unique numeric code so you can quickly associate all your panels and troubleshoot when you need to.
Simple Setup and design flexibility
Rotate fixtures to 0°, 90°, 180° and 270°, and place anywhere on the full HD canvas – no external pixel mapping required.
Optimal results on budget
Ideal for a range of smaller projects – optimise your budget with quality, reliable LED processing.
| Dimensions (Unboxed) | 482.6mm (19”) x 44.5mm (1.75”) x 342.9mm (13.5”) |
| Dimensions (Boxed) | 570mm (22.4”) x 170mm (6.69”) x 450mm (17.7”) |
| Weight (Unboxed) | 3.1Kg (6.8lbs) |
| Weight (Boxed) | 5.5Kg (12.1lbs) |
| Electrical | Switched autoranging power supply 100 – 240V AC 50Hz – 60Hz 0.4 – 0.2A |
| DVI-D Input | One DVI-D input Up to 1920 x 1080 at 60Hz Non-standard resolution support for: 1600 x 1200, 2880 x 720, 720 x 2880, 1080 x 1920 Support for RGB and YCbCr colour spaces HDMI support with suitable adapter No HDCP support |
| Outputs | Four 1G Tessera output ports, each capable of a nominal 525K pixels at 8 bits per colour, 60Hz frame rate |
| Genlock | Lock to source Processors genlock from source right through to panel refresh Frame rates from 23.98 to 60Hz |
| Latency | 2 frames end-to-end system latency |
| Tessera Management Software | Local management using monitor, keyboard and mouse connected directly to processor Monitors from 1024×768 up to 1920×1080 DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter |
| Tessera Remote | Available free for Windows PC and Mac OS Remote management using Windows PC or Mac connected to processor via Ethernet network One Gigabit Ethernet network port |
| Remote Control | Tessera Control application for multi-processor control via management network port IP Control |
| I/O | Two USB 2.0 ports on front Two USB 2.0 ports on rear One DisplayPort (DP++) monitor output |
| Front Panel | Six status LEDs Power LED Freeze button Blackout button |
| Warranty | Two years |
| Certifications | CE, ETL/cETL |
