Blackmagic PYXIS Monitor Kit
Availability:In stock
Cat No.
71189
SKU
BMD-CINEURSABB/AMKIT
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£483.67
£403.06
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

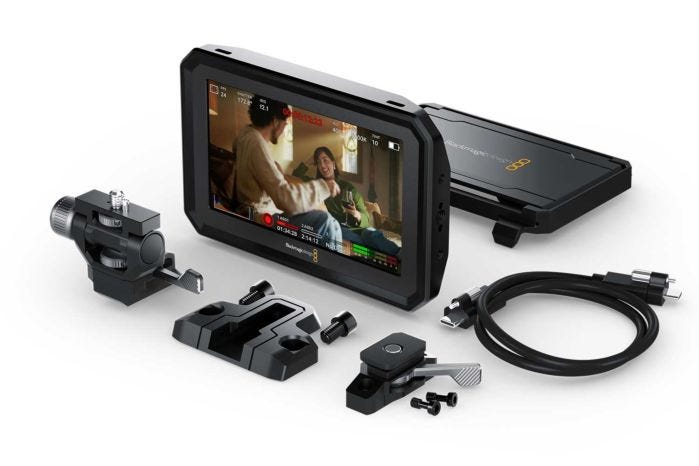

Blackmagic PYXIS Monitor Kit
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
- Display Size: 5 inch.
- Display Resolution: Full 1920 x 1080.
- Display Type: LCD capacitive touchscreen.
- Display Brightness: 1500 nits.
- Frame Rates: Up to 60fps.
- Tally: Rear facing LED tally light.
- Accelerometer: Automatically rotates image when monitor mounted upside down.
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Blackmagic PYXIS Monitor Swivel Mount
- Blackmagic PYXIS Monitor Fixed Mount and screws
- Blackmagic PYXIS Monitor Dovetail Shoe and screws
- 1 x USB-C Viewfinder Cable
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
| Connections | |
|---|---|
| USB-C with Locking Connector | Video, power, data and software updates. |
| Features | |
| Display Size | 5 inch. |
| Display Resolution | Full 1920 x 1080. |
| Display Type | LCD capacitive touchscreen. |
| Display Brightness | 1500 nits. |
| Frame Rates | Up to 60fps. |
| Tally | Rear facing LED tally light. |
| Accelerometer | Automatically rotates image when monitor mounted upside down. |
| Control | |
| On Screen Controls | Tap screen to control Monitor Overlays,Frame Rate, Shutter, Iris, Timecode,ISO, White Balance, Tint, Power,Record Start/Stop, Media, Audio,Focus Zoom, Digital Slateand camera menus. |
| Button Controls | Includes F1, F2, F3 assignable functionbuttons to recall preset parameters ortoggle functions. |
| Function Button Presets | FPS: Preset Value |
| Iris: Preset Value | |
| WB: Preset Value | |
| ISO: Preset Value | |
| Shutter: Preset Value | |
| Function Button Toggle | Clean Feed |
| Status Text | |
| Display LUT | |
| Frame Guides | |
| Focus Assist | |
| False Color | |
| Zebra | |
| Grid | |
| Safe Area Guide | |
| Off Speed Rec | |
| Focus Zoom | |
| Focus | |
| Record | |
| Auto White Balance | |
| Color Bars | |
| Playback | |
| False Color + Zebra | |
| OIS | |
| Stream | |
| Still | |
| Mounting | |
| Mounting Points | 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. |
| 2 x M4 bottom mounting points. | |
| 1 x 1/4-20 side mounting point with ARRI locating pin pattern. | |
| 2 x M4 side mounting points. | |
| Mounting Brackets | Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. |
| Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. | |
| Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit. | |
| Compatible Cameras | |
| Cameras | Blackmagic PYXIS 6K |
| Blackmagic PYXIS 6K PL | |
| Blackmagic PYXIS 6K EF | |
| Blackmagic URSA Cine 12K LF | |
| Blackmagic URSA Cine 17K 65 | |
| Operating Systems | |
| Operating Systems | Mac 13.0 Ventura, |
| Mac 14.0 Sonoma or later. | |
| Windows 10 and 11. | |
| Power Requirements | |
| Power Requirements | Powered over USB-C. |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | |
| Product Warranty | 1 Year Limited Manufacturer’s Warranty. |
