Blackmagic HyperDeck Shuttle 4K Pro
Availability:In stock
Cat No.
110768
SKU
BMD-HYPERD/PTSKDP
Product Information
HyperDeck Shuttle
The desktop HyperDeck that's the perfect live production clip player!
HyperDeck Shuttle is a recorder and player that's designed to be used on the desktop! It's more than a master recorder, as it's also a clip player. The large search dial lets you quickly scroll through media to find the clip you want. Depending on the model, you get support for ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p, and 2160p video standards. It even has a built in teleprompter! There are models with 12G-SDI and HDMI so you can connect to switchers and cameras. Plus it records to SD cards, UHS-II cards or USB-C disks. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage.

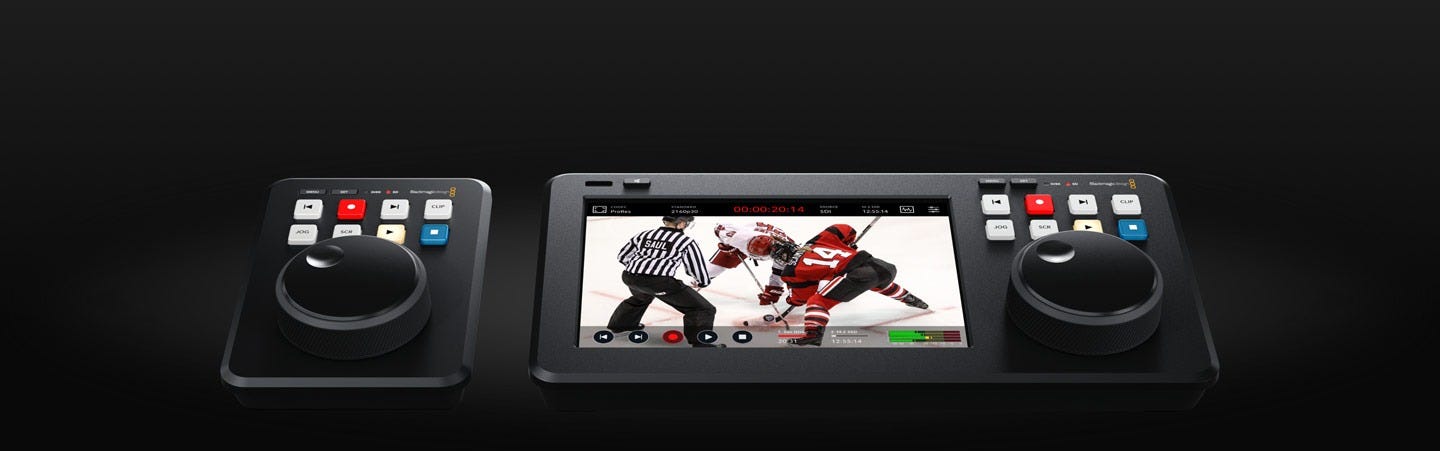

Two Powerful HyperDeck Shuttle Models
HyperDeck Shuttle HD
Desktop recorder features a large search dial for easy clip searching and playback. It's the perfect media player for ATEM Mini! Supports H.264, ProRes or DNxHD files on SD/UHS-II cards or USB disks.
HyperDeck Shuttle 4K Pro
Powerful touchscreen model records to H.265, ProRes and DNx in all SD, HD and Ultra HD standards up to 2160p60. Includes 10G Ethernet, scopes, internal network storage, 12G-SDI and HDMI connections.

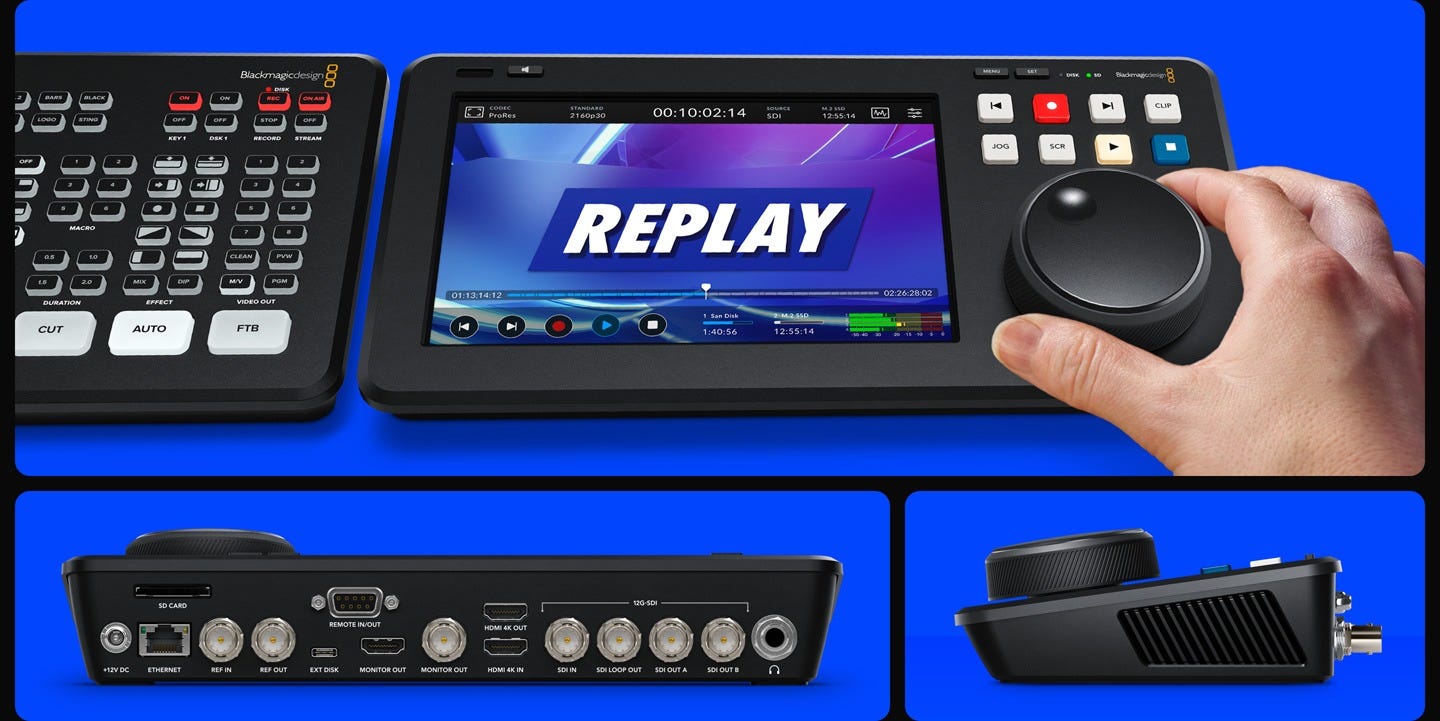

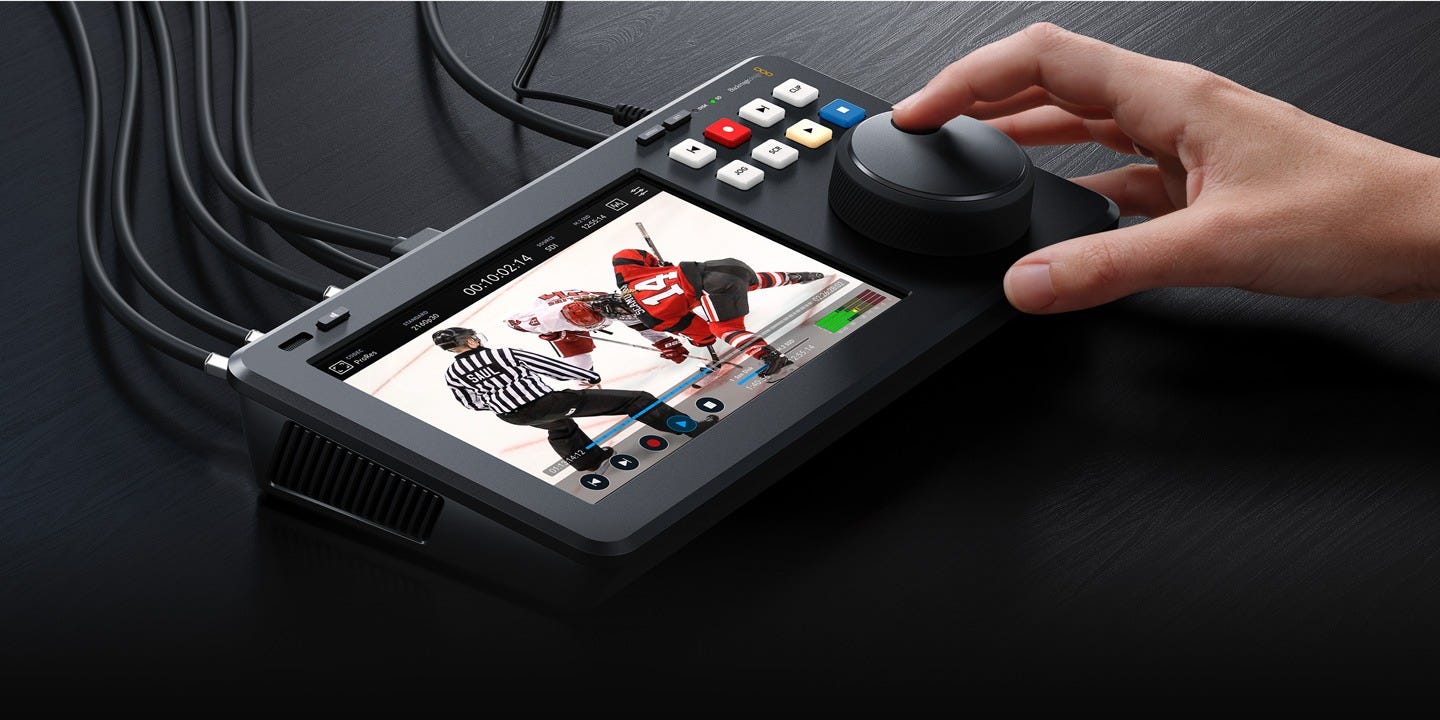

The Elegantly Designed Professional Broadcast Deck
HyperDeck Shuttle is perfectly designed for the desktop. This means the front panel can be operated with a single hand! The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.

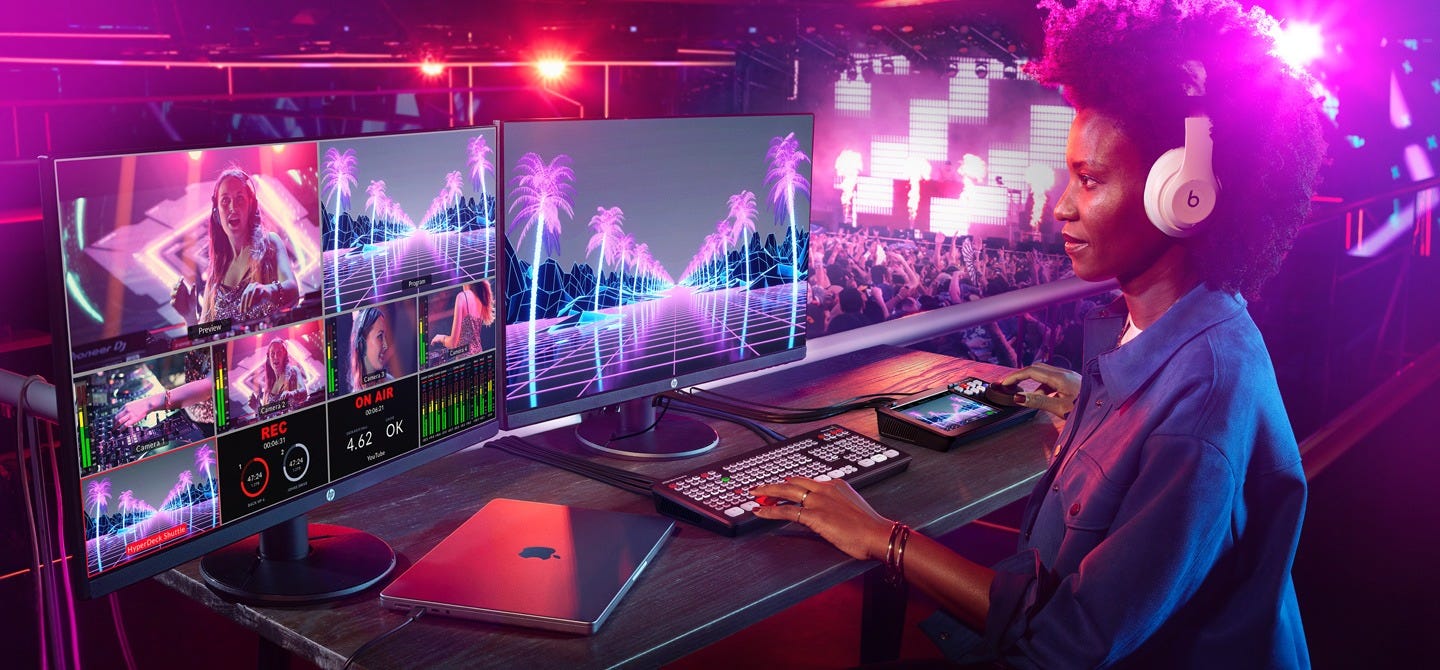

Perfect for Live Production Mastering and Clip Playback!

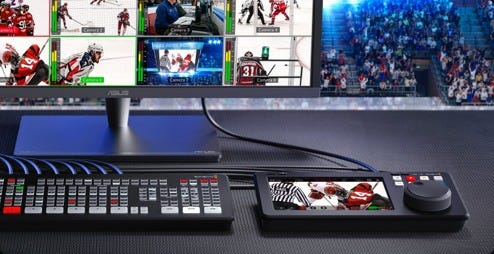

Mastering Recorder
Record true broadcast masters in high quality ProRes, H.264, H.265 and DNx files. You can also select between PCM or AAC audio. That's perfect for higher quality mastering when used with ATEM Mini switchers. You get everything needed to send shows to broadcasters and upload them to YouTube.

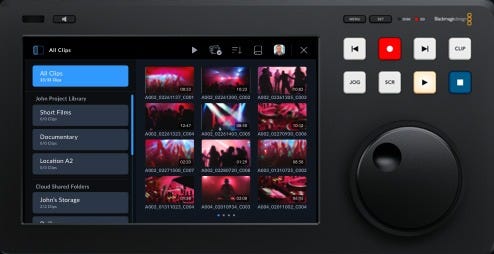

Media Player
The large search dial lets you visually browse your clip library. Then you can use the previous clip button to cue to the start of the clip. After playing, you can use the clip button to stop the playback at the end of the clip. ATEM switchers can even remote control HyperDeck Shuttle via Ethernet!

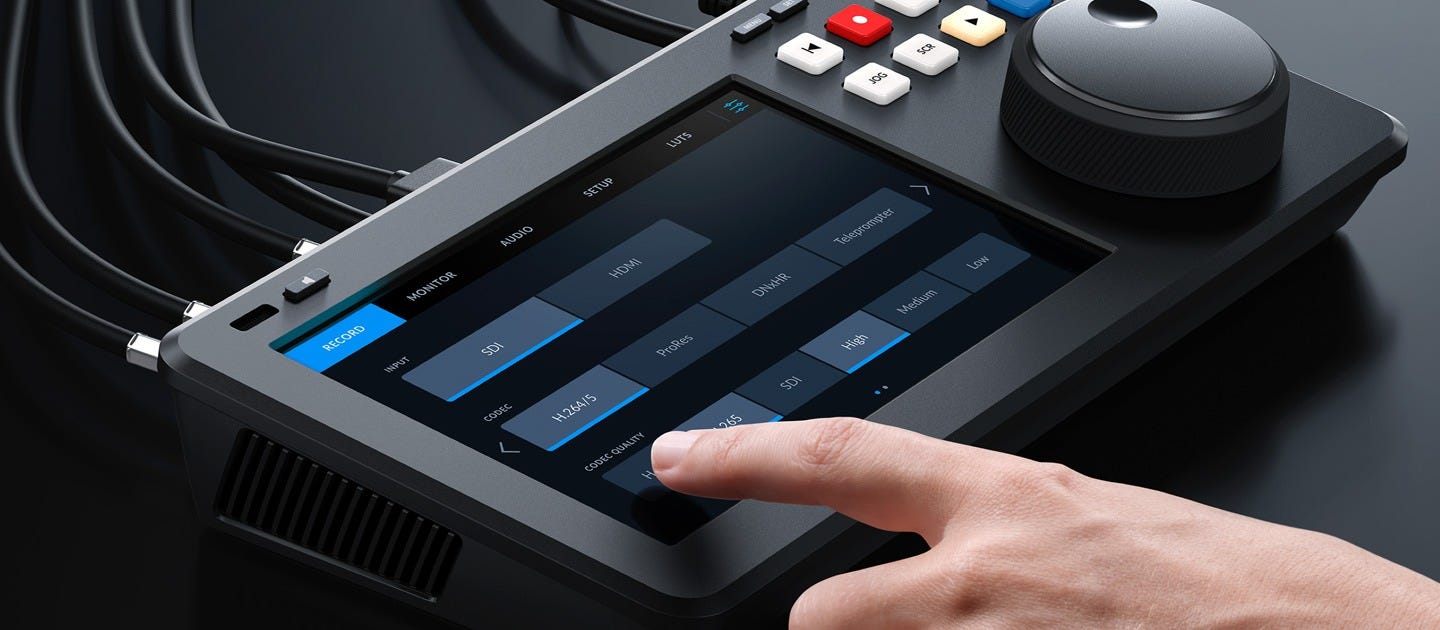

Built in 7" Monitorfor Fast Touch Control
The HyperDeck Shuttle 4K Pro model features an innovative touch LCD user interface for interactive control, built-in monitoring, and menu settings. The large 7-inch HDR display has buttons for playback, pause and recording functions, as well as a mini playback timeline so you can scroll through your clips. A "HUD", or heads-up display, is included that overlays important information such as timecode, media status, and audio meters. You can also enable full broadcast scopes via the touch screen, and enable features such as focus assist and an RGB exposure histogram. The HyperDeck Shuttle 4K Pro's settings can also be changed through the on-screen menus. Plus you can load and save 3D LUTs!

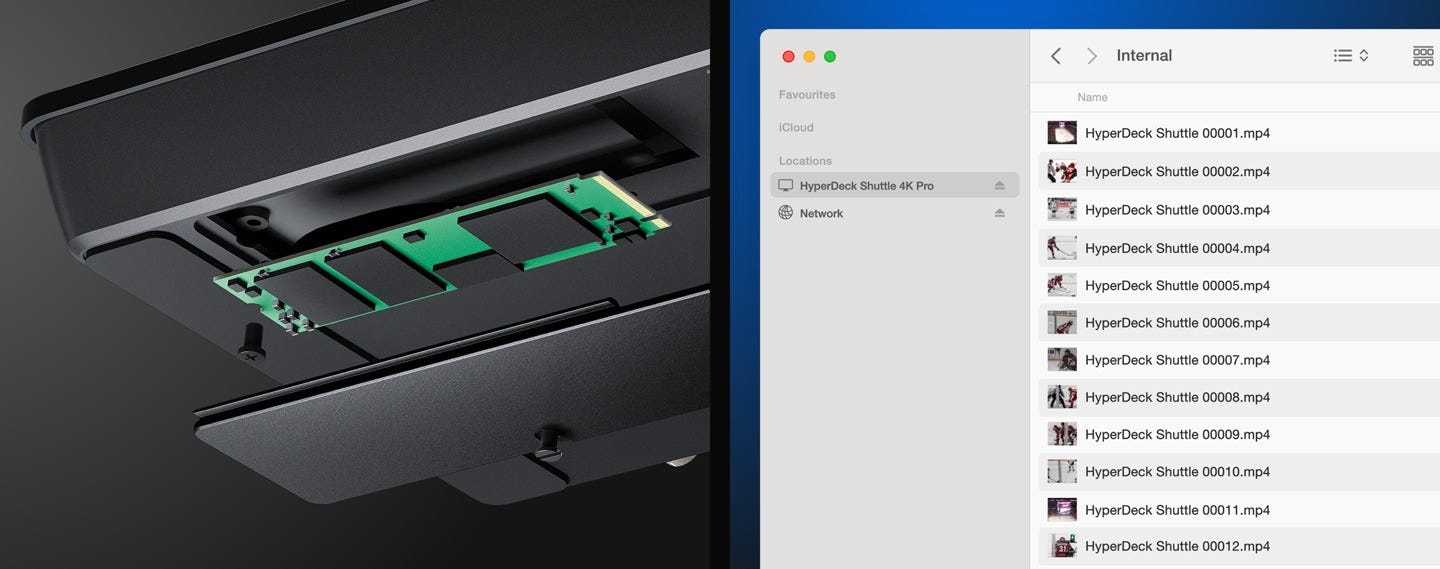

Record to Internal or External Network Storage
HyperDeck Shuttle has been designed to record directly to network storage! That means you don't need to mess around with media cards because you can store all your media in a central place. Plus the HyperDeck Shuttle 4K Pro model has space for M.2 flash storage cards, so the network storage is built in! This means any editing system can just log into the HyperDeck Shuttle 4K Pro and access all the media in one location. DaVinci Resolve can also edit media while it's being recorded! With its new broadcast features, DaVinci Resolve is an amazing live editing solution. Managing the storage is easy, as you just browse the network storage, then select the folder you want to record into!

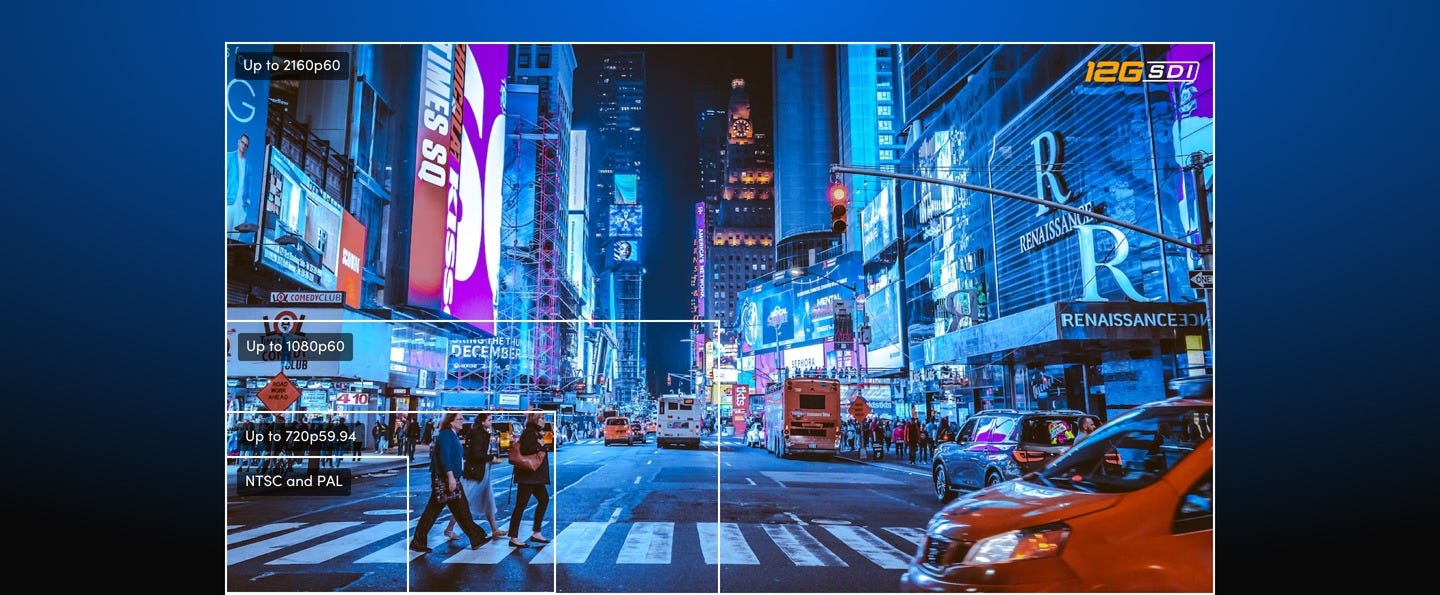

Latest Multi-Rate 12G-SDI for SD, HD and Ultra HD
The extremely advanced HyperDeck Shuttle 4K Pro model includes the latest 12G-SDI video connections. 12G-SDI is multi-rate, so a single connection can connect to SD, HD, and Ultra HD equipment. Standard definition support includes NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced standards include 1080i50 and 1080i59.94. 1080p HD television standards include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck Shuttle 4K Pro even handles 1080 PsF formats! The 12G-SDI also handles Ultra HD in all television standards including 2160p23.98, 24, 25, 29.97, 50, 59.94 and 60p. There is also support for both level A and level B when working in 3G-SDI rates.

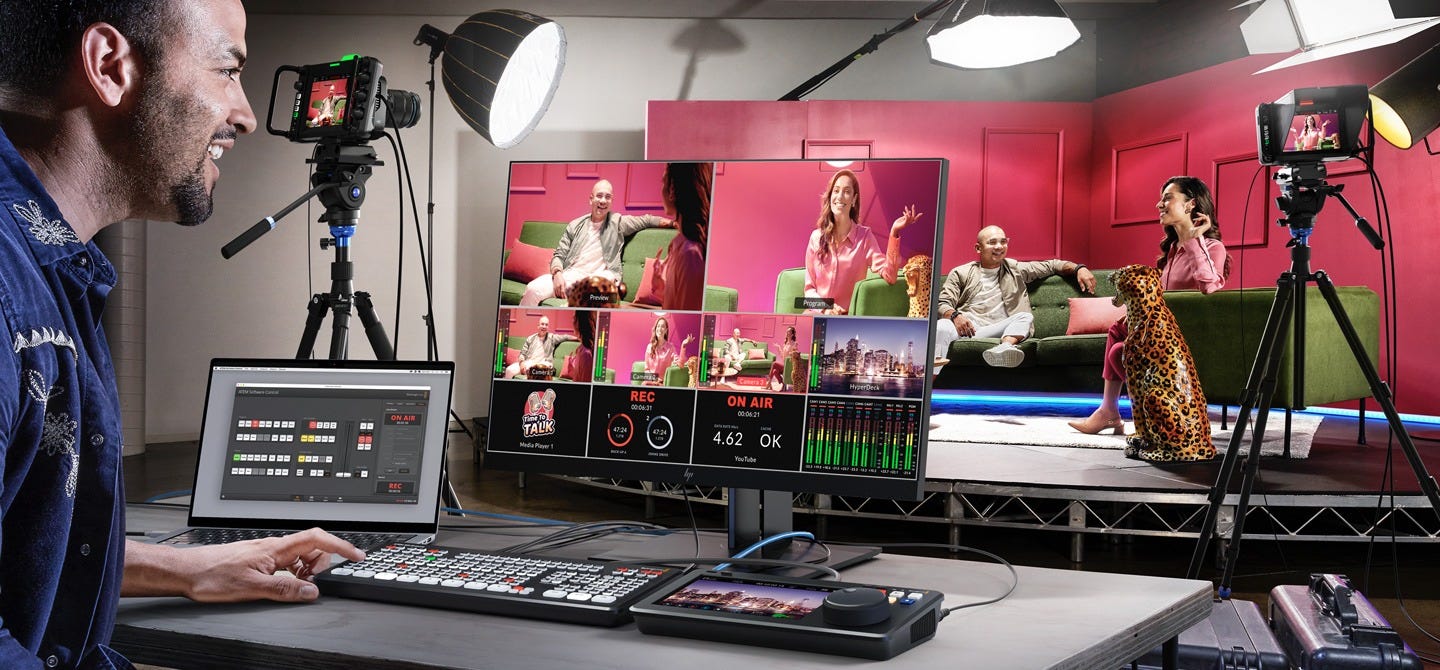

HDMI is Perfect for ATEM Mini Switchers!
With built in HDMI input and output, you can connect to consumer cameras, monitors, televisions, video projectors and even ATEM Mini switchers! The HDMI connections will automatically switch video standards to handle SD, HD, and Ultra HD, depending on the model. SD standards include NTSC and PAL. 720p HD standards include 720p50 and 720p59.94. 1080i HD interlaced standards include 1080i50 and 1080i59.94. 1080p HD standards include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck Shuttle can even support 1080 PsF formats! Then the HyperDeck Shuttle 4K Pro model standards include 2160p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p.
The Fastest Networking with Modern 10G Ethernet

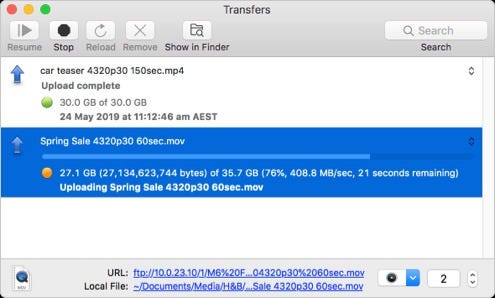

The more powerful HyperDeck Shuttle 4K Pro model has extremely fast 10G Ethernet. The network speeds are so fast that lots of editors and colorists can access the built-in HyperDeck M.2 storage over your network, all at the same time. You can also transfer files via an easy to use HTTP/S web interface or an FTP client. For broadcast automation control, HyperDeck uses the Ethernet connection and a simple text-based protocol, which you can test with a simple telnet client. A REST protocol is also supported for custom automation and it's fully documented in the manual. This means HyperDeck Shuttle 4K Pro is a fully self-contained broadcast server for ingest, media management, and play out.

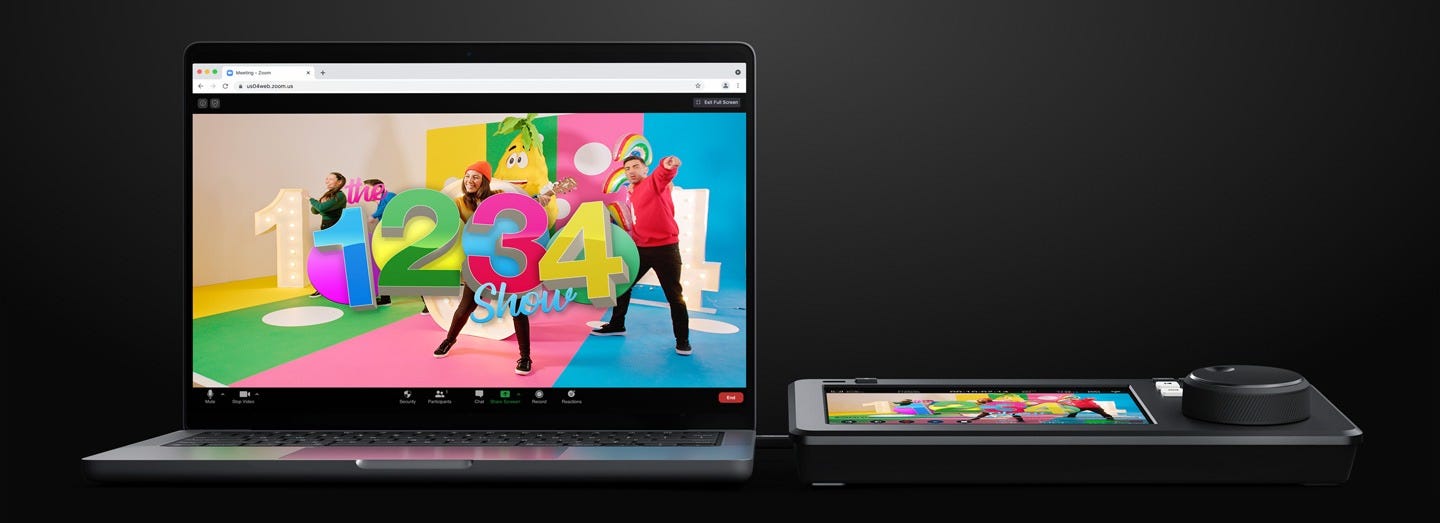

USB WebcamOutput for Video Software
For compatibility with a wide range of computer software, HyperDeck Shuttle features webcam support using the USB connection. If you're not recording to an external USB disk, you can plug the HyperDeck USB connection directly into a computer to get live video into any video software. The computer is tricked into thinking the HyperDeck is a common webcam, but it's really a broadcast quality video source! This guarantees full compatibility with any video software and in full resolution 1080 HD quality. HyperDeck Shuttle's USB webcam feature works with any video software including Zoom and Microsoft Teams, or get live streaming with Open Broadcaster, XSplit Broadcaster and more!
Blackmagic HyperDeck Shuttle 4K Pro
HyperDeck Shuttle is a recorder and player that's designed to be used on the desktop! It's more than a master recorder, as it's also a clip player. The large search dial lets you quickly scroll through media to find the clip you want. Depending on the model, you get support for ProRes, DNx, H.264 and H.265 files in NTSC, PAL, 720p, 1080p, and 2160p video standards. It even has a built in teleprompter! There are models with 12G-SDI and HDMI so you can connect to switchers and cameras. Plus it records to SD cards, UHS-II cards or USB-C disks. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage.
The Elegantly Designed Professional Broadcast Deck
HyperDeck Shuttle is perfectly designed for the desktop. This means the front panel can be operated with a single hand! The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a "heads up display" overlay. Plus, it features full menus with all the deck settings! The rear panel includes all video, audio and network connections.
Mastering Recorder
Record true broadcast masters in high quality ProRes, H.264, H.265 and DNx files. You can also select between PCM or AAC audio. That's perfect for higher quality mastering when used with ATEM Mini switchers. You get everything needed to send shows to broadcasters and upload them to YouTube.
Media Player
The large search dial lets you visually browse your clip library. Then you can use the previous clip button to cue to the start of the clip. After playing, you can use the clip button to stop the playback at the end of the clip. ATEM switchers can even remote control HyperDeck Shuttle via Ethernet!
