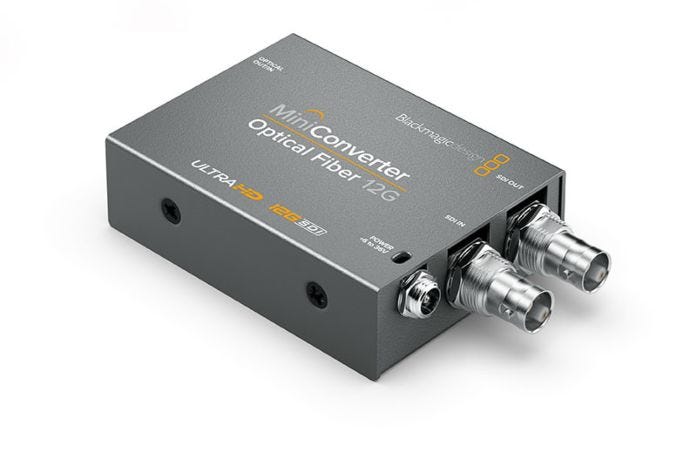

Blackmagic Design Mini Converter Optical Fibre 12G
Mini Converter Optical Fibre 12G
Extend SDI connections over extremely long distances by converting to optical fibre. Now you can extend SDI to massive distances of up to 10 miles away.
The Mini Converter Optical Fibre 12G converts SDI to optical fibre and optical fibre to SDI in both directions at the same time, so it's the same as having two converters in one. You can even have different video standards going in each direction.
The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices.
The fibre socket lets you install any standard 3G, 6G or 12G‑SDI SFP optical fibre module so you can send SDI using the same low cost optical fibre cables that are commonly used for computer networks. plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected.
- Converts SDI to optical fiber and optical fiber to SDI in both directions at the same time
- Can even have different video standards going in each direction
- 12G‑SDI connections are multi rate
- Compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices
- Mini Converter UpDownCross HD
- +12V universal power supply with international socket adapters
| Connections | |
|---|---|
| SDI Video Inputs | 1 x SD, HD and 12G-SDI Video 1 x Optical Fiber Input |
| SDI Video Outputs | Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber |
| Optical Fiber Connection (optional) | 1 x SMPTE optical fiber SDP socket. Optical fiber SFP module sold separately |
| Optical Fiber Video Inputs | 1 x 10 bit SD/HD/12G-SDI switchable |
| Optical Fiber Video Outputs | Automatically matches the SD, HD and 12G-SDI video input |
| Optical Fiber Audio Inputs | 16 channel embedded |
| Optical Fiber Audio Outputs | 16 channel embedded |
| Multi Rate Support | Auto detection of SD, HD or 12G-SDI |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI. |
| SDI Video Rates | SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Colour Precision | 4:2:2 and 4:4:4 |
| SDI Colour Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 12G-SDI |
| ASI Support | Yes |
| Operating Systems | |
| Operating Systems | Mac 10.12 Sierra Mac 10.13 High Sierra or later Windows 8.1 or Windows 10 |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 2 Watts |
| Operational Voltage Range | 6 - 36V DC |
| Physical Specifications | |
| Dimensions | 4.33 x 2.32 x 0.90 in |
| Weight | 7.40 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
