Blackmagic Design ATEM Micro Panel
Availability:In stock
Cat No.
62409
SKU
BMD-SWPANELAA1ME10
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£636.00
£530.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Blackmagic Design ATEM Micro Panel

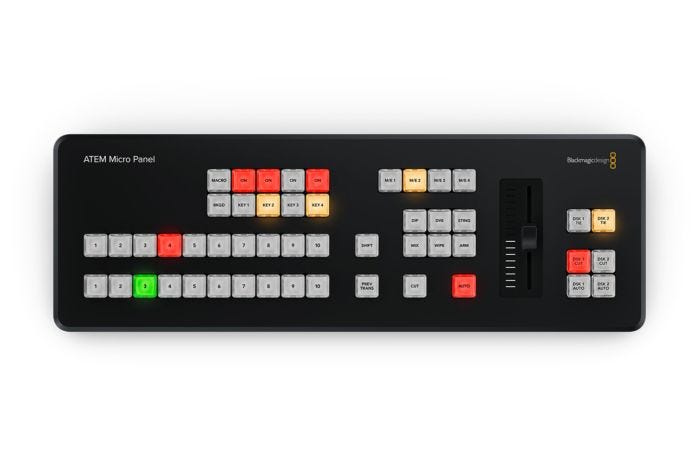

The ATEM Micro Panel is a low cost solution for adding panel control to ATEM Software control. Featuring the same high end buttons as ATEM Advanced Panels you get a true broadcast quality feel. It also has a familiar layout with buttons for program and preview. You can use the shift buttons to access up to 20 sources. There are 4 upstream and 2 downstream key buttons, plus a macro button. It even has 4 M/E buttons so you can control a massive 4 M/E switcher! There’s a fader for smooth manual transition control, which also means it’s low profile and very portable. With connection via USB-C or Bluetooth and a large internal battery, ATEM Micro Panel is perfect when you need a portable panel!
The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!
| Connections | |
|---|---|
| Computer Interface | USB Type‑C. |
| Bluetooth | Bluetooth 5.1 LE |
| Product Specifics | |
| Number of Mix Effects Rows | 1 |
| Direct Cross Points | 10 |
| Shifted Cross Points | 20 |
| Crosspoint Button Type | Tri-Color LED |
| Preview Transition | 1 |
| Switching Type Buttons | CUT and AUTO |
| Transition Type Buttons | DIP, DVE, STINGER, MIX, WIPE. |
| M/E Select Buttons | 4 |
| Upstream Key Buttons | 4 with ON/OFF |
| Downstream Key Buttons | 2 with ON/OFF |
| Transition Slider | 1 |
| Software | |
| Software Applications | ATEM Micro Panel controls ATEM Software Control Panel running on the host computer. |
| Operating Systems | |
| Operating Systems | Mac 13.0 Ventura, |
| Mac 14.0 Sonoma or later. | |
| Windows 10 and 11. | |
| Power Requirements | |
| Power Supply | Internal battery with power switch. |
| USB-C port for external power supply and battery charging. | |
| Power Usage | 3 W max. |
