Blackmagic Atem Talkback Converter 4K ( Open Boxed )
Availability:In stock
Cat No.
111494
SKU
11935276
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£2,394.00
£1,995.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

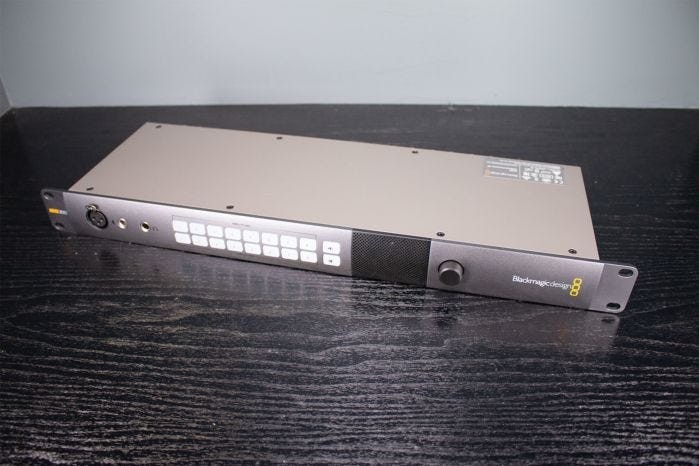

Blackmagic Atem Talkback Converter 4K ( Open Boxed )
ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter.
Supports 12G-SDI for all SD, HD and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop though for more than 8 camera support, built in speaker, front panel mic input and much more.
Key Features
- Support talkback for up to 8 cameras for Blackmagic Studio Cameras
- Includes 12G-SDI for all formats up to 2160p60, front panel mic and headset connections and more
Connections - SDI Program Input - 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio
- SDI Program Output - 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K
- Talkback Audio - Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector
- Analog Audio - 1 x stereo RCA monitoring output
- SDI Camera Input - 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio
- SDI Camera Output - 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio
- SDI Output - 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio
- Optical Fiber Video Input (Optional) - 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector
- Optical Fiber Video Output (Optional) - 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector
- Optical Fiber Audio Input - 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio
- Optical Fiber Audio Output - 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio
- Computer Interface - 1 x mini-B type USB connector for firmware updates
